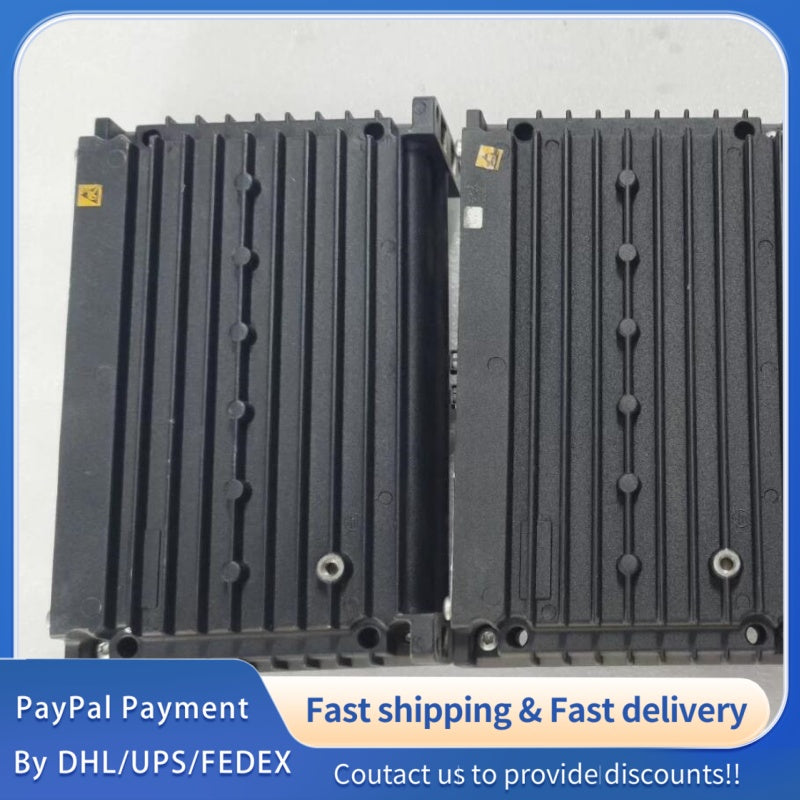

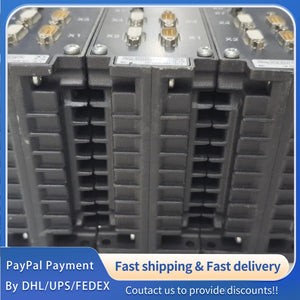

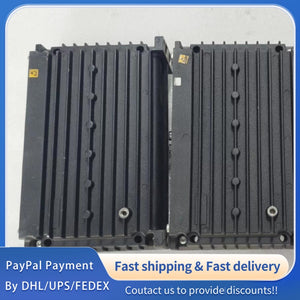

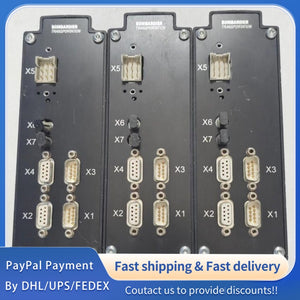

Part Number: 3EHL409356R0001; Product Name: Bombardier Controller UF C036 A01
Brand: Bombardier (A global leader in transportation and industrial control solutions, dedicated to providing high-reliability control systems for rail transit, aviation and industrial automation fields);
Product Status: Original New Unit; Product Category: Industrial Grade Programmable Controller, designed for precise control and signal processing of complex electromechanical systems, with excellent compatibility and expandability.
Core Application: Widely used in Bombardier rail transit vehicles (such as CRJ series, light rail and subway trains), industrial automation production lines, and high-precision electromechanical control systems; suitable for on-site control, signal conversion and equipment coordination in harsh operating environments.
Core Features: High-speed signal processing capability; Multiple communication protocol support; Strong anti-interference performance; Modular design for easy maintenance; Overload and short-circuit protection; Real-time data monitoring and feedback; Wide voltage adaptation range.
2. Hardware Configuration Specifications
2.1 Core Components & Control Capability
Control Core: High-performance 32-bit microprocessor; Operating Frequency: 1GHz; I/O Point Capacity: 32 digital inputs, 16 digital outputs, 8 analog inputs (4-20mA/0-10V), 4 analog outputs (4-20mA/0-10V);
Control Accuracy: Analog Signal: ±0.1% FS; Digital Signal Response Time: ≤1ms; Display: LCD Touch Screen (7-inch, 1024×600 resolution), supporting real-time parameter display and manual operation.
2.2 Functional Configuration
Core Functions: Programmable Logic Control (PLC), PID Regulation, Data Logging (10000 groups), Fault Alarm & Self-Diagnosis, Remote Control, Parameter Backup & Restoration; Control Mode: Automatic/Manual Switchable;
Communication Interface: 2×Ethernet (RJ45, TCP/IP), 2×RS232, 2×RS485 (Modbus RTU/TCP), 1×CANopen; Expansion Interface: Support modular expansion for additional I/O points and special function modules.
3. Electrical Specifications
3.1 Power Supply Parameters
Power Supply: DC 24V ±10% (Wide Voltage Adaptation); Rated Current: 5A; Low Voltage Alarm Voltage: 20V (Fault code displayed on screen);
Power Consumption: ≤80W Under Full Load; Power Protection: Anti-reverse Connection, Overload, Short-Circuit and Surge Protection.
3.2 Insulation & Signal Characteristics
Insulation Strength: AC 2kV/rms (Between Power Supply and Ground); Isolation Resistance: ≥100MΩ (500VDC); Signal Isolation: Digital and Analog Signals Fully Isolated;
Safety Category: IEC 61131-2; Pollution Degree: 3; Complies with IEC 61000 (EMC Standard) and IEC 60529 Safety Standards.
