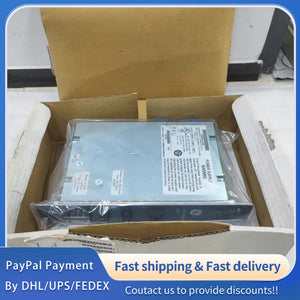

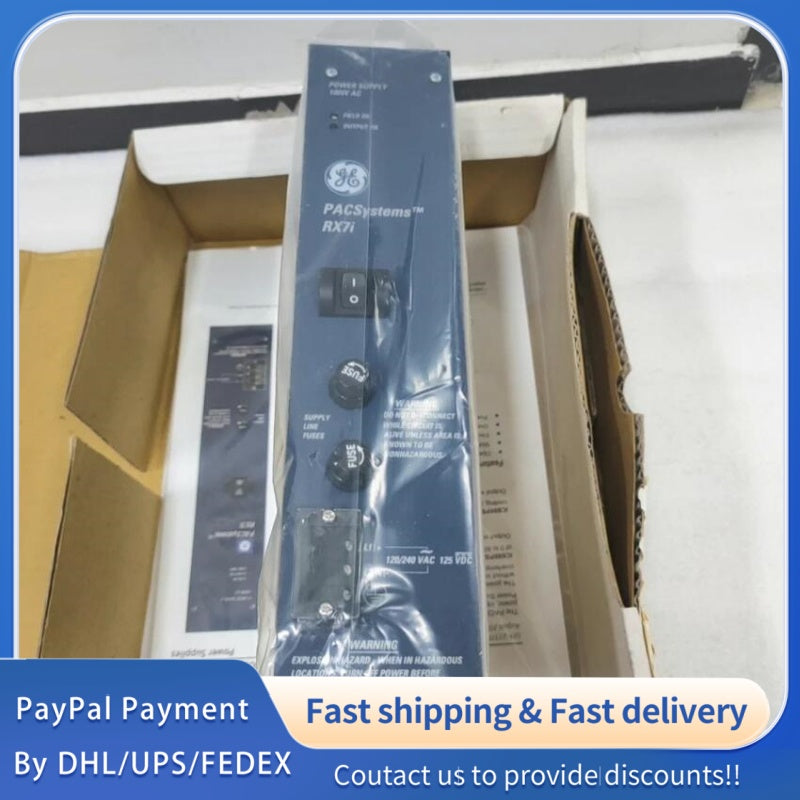

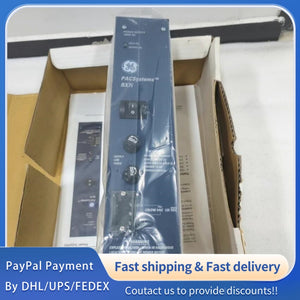

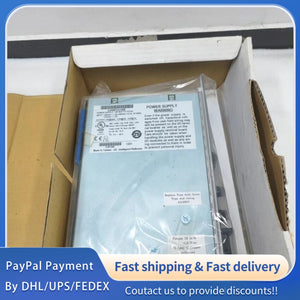

1 PCS USED GE Power Supply IC698PSA100E #LYQ007
1 PCS USED GE Power Supply IC698PSA100E #LYQ007
|
Item
|
Specification
|
|
Model Number
|
IC698PSA100E
|
|
Product Name
|
GE Industrial Grade Switching Power Supply
|
|
Product Series
|
GE IC698 Series, high-reliability power supply for industrial automation systems
|
|
Brand
|
GE Automation (Fanuc Series Compatible)
|
|
Product Status
|
Industrial-Grade Original Equipment (RoHS 2.0 Compliant, Industrial Anti-Interference Packaging, Short-Circuit Protection Design)
|
|
Parameter
|
Value
|
|
Input Voltage Range
|
AC 85~264V (Wide Voltage Input), 50/60Hz (Frequency Adaptive)
|
|
Input Current
|
Max 2A (At AC 85V Input), Max 1A (At AC 230V Input)
|
|
Output Voltage
|
DC 24V ±0.5% (Precision Regulation), Adjustable Range ±10%
|
|
Output Current
|
Rated 10A, Peak 12A (10 Seconds Max)
|
|
Output Power
|
Rated 240W (DC 24V/10A), Peak 288W
|
|
Conversion Efficiency
|
≥92% (Full Load Condition), High Efficiency Design to Reduce Heat Generation
|
|
Ripple & Noise
|
≤120mVpp (Measured with 20MHz Bandwidth, Full Load)
|
|
Protection Functions
|
Overload Protection (110~150% Rated Current, Auto-Recovery); Overvoltage Protection (28~30V DC); Short-Circuit Protection (Latching, Reset via Power Cycle); Over-Temperature Protection (Auto-Shutdown at 85℃±5℃)
|
|
Isolation Voltage
|
Input to Output: 3kVrms (1 Minute); Input/Output to Ground: 2kVrms (1 Minute)
|
|
ESD Protection
|
±8kV (Air Discharge), ±4kV (Contact Discharge) Per IEC 61000-4-2
|
|
Parameter
|
Value
|
|
Dimensions (W×H×D)
|
90mm × 125mm × 115mm (Metal Housing, Compact Design)
|
|
Net Weight
|
Approximately 850g (Without Cables & Mounting Accessories)
|
|
Installation Method
|
35mm Standard DIN Rail-Mounted (Top/Bottom Fixing Optional), Vertical Installation Recommended
|
|
Cooling Method
|
Passive Heat Dissipation via Aluminum Housing, Fanless Design, Maintenance-Free
|
|
Connectors
|
Input: 3-Pin Terminal Block (Phoenix Contact); Output: 4-Pin Terminal Block (Dual Output Terminals for Parallel Connection)
|
|
Status Indicator
|
Green LED (Power On: Steady On; Fault: Off or Flashing)
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
