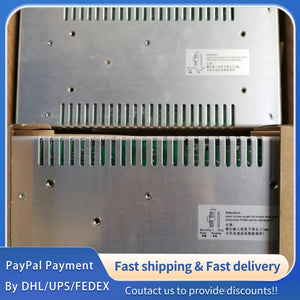

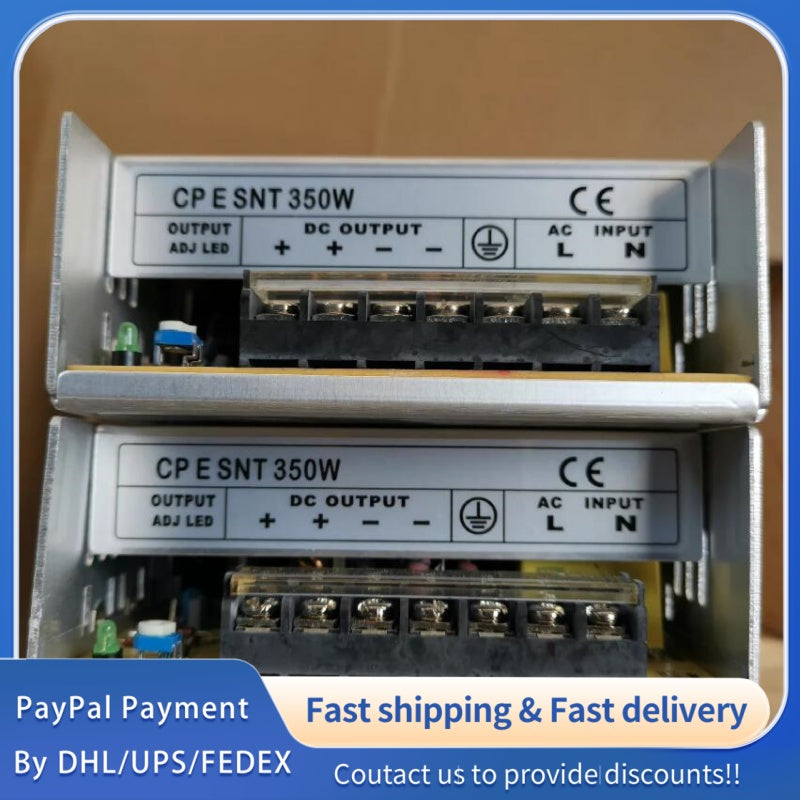

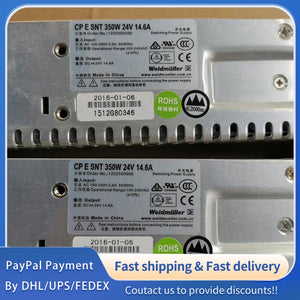

1 PCS used Weidmüller CP ESNT 350W 24V 14.6A #LYQ007
1 PCS used Weidmüller CP ESNT 350W 24V 14.6A #LYQ007
| Parameter | Specification |
|---|---|
| Model | PRO PM 350W 24V 14.6A (CP ESNT 350W 24V 14.6A) |
| Order No. | 2660200294 |
| Type | Switch‑mode power supply unit |
| GTIN (EAN) | 4050118782110 |
| Input | |
| AC input voltage range | 90…264 V AC |
| Rated input voltage | 100…240 V AC |
| Frequency range | 47…63 Hz |
| Input current (230 V AC) | 3 A |
| Input current (115 V AC) | 4.8 A |
| Inrush current | Max. 60 A |
| Nominal power consumption | 407 VA |
| Recommended back‑up fuse | 6 A at 230 V AC, curve C |
| Connection system | Screw connection |
| Output | |
| Rated output voltage | 24 V DC |
| Rated output current | 14.6 A |
| Output power | 350 W |
| Output voltage tolerance | ±10% (adjustable via potentiometer) |
| Residual ripple (breaking spikes) | <100 mV<sub>PP</sub> |
| Surge protection | 28…32 V @ 24 V DC |
| Mains failure bridge‑over time | 20 ms |
| Overload protection | 120%…180% I<sub>nominal</sub>, hiccup mode, auto‑recovery |
| Short‑circuit protection | Yes |
| Parallel connection | Yes (with diode module) |
| Connection system | Screw connection |
| General Data | |
| Efficiency | 86% |
| MTBF (SN 29500, 40 °C) | Min. 150,000 h |
| Protection degree | IP20 |
| Status indication | Green LED: ready |
| Mounting | Panel mount, screw fix |
| Environmental | |
| Operating temperature | -20 °C…70 °C |
| Storage temperature | -40 °C…85 °C |
| Humidity | 5…95 % RH (non‑condensing) |
| Derating | >50 °C: 2% per 1 °C |
| Mechanical | |
| Dimensions (W×H×D) | 115 × 30 × 215 mm |
| Net weight | 750 g |
| Insulation & Safety | |
| Insulation voltage (input/earth) | 2 kV |
| Insulation voltage (output/earth) | 0.5 kV |
| Insulation voltage (input/output) | 3 kV |
| Safety standards | SELV (IEC 60950‑1), PELV (EN 60204‑1) |
| EMC & Mechanical Resistance | |
| EMC immunity | EN 61000‑4‑2/‑4/‑5/‑6/‑8/‑11 |
| EMC emission | EN 55032 Class B |
| Shock resistance | 30 g (IEC 60068‑2‑27) |
| Vibration resistance | 10…500 Hz, 5 g (IEC 60068‑2‑6) |
| Compliance | |
| RoHS | Compliant (exemptions: 6c, 7a, 7cI) |
| REACH SVHC | Lead (7439‑92‑1), Lead monoxide (1317‑36‑8) |
