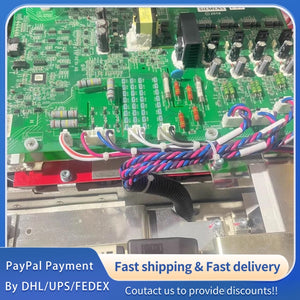

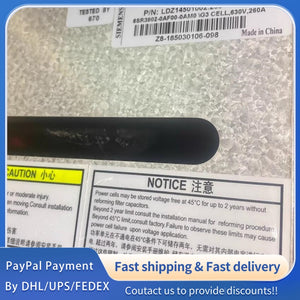

1 PCS new Siemens Power Cell LDZ14501002.260 (260A) #LYQ007
1 PCS new Siemens Power Cell LDZ14501002.260 (260A) #LYQ007
| Parameter | Value |
|---|---|
| Model | LDZ14501002.260 |
| Product Line | Robicon Perfect Harmony Series High-Voltage Inverter Power Cell |
| Topology | Cascaded H‑Bridge, AC‑DC‑AC Conversion |
| Input Voltage | 3‑Phase 690 V AC ±10% |
| Rated Output Current | 260 A (Continuous) |
| Overload Capacity | 150% for 60 seconds |
| System Efficiency | ≥98% |
| Power Factor | >0.95 |
| Total Harmonic Distortion (THD) | <3% (IEEE 519 Compliant) |
| PWM Switching Frequency | 3.0–6.0 kHz (Adjustable) |
| Power Device | IGBT Module |
| Inverter Efficiency | >97% |
| Short‑Circuit Detection Time | <10 μs |
| Dynamic Bypass Time | ≤250 ms |
| Dynamic Response Time | ≤5 ms |
| Speed Regulation Accuracy | ±0.5% |
| Control Modes | VVVF Vector Control, DTC, Sensorless Vector Control |
| Communication Interfaces | Fiber Optic, PROFIBUS, PROFINET, OPC UA |
| Protection Class | IP54 |
| Operating Temperature | −25 °C to +60 °C |
| IGBT Junction Temperature | ≤125 °C |
| MTBF | ≥200,000 hours |
| Weight | 42.0 kg |
| Cooling | Forced Air / Water Dual‑Mode Cooling |
| Design Life | ≥20 years |
