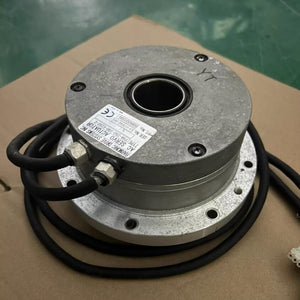

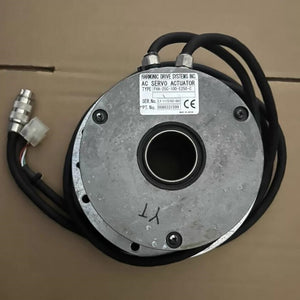

1 PCS USED FHA-25C-100-E250-C AC Servo Actuator #LYQ007
1 PCS USED FHA-25C-100-E250-C AC Servo Actuator #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Model | FHA-25C-100-E250-C | - |
| Reduction Ratio | 100:1 | - |
| Max. Torque (200V) | 260 | N·m |
| Continuous Torque | 85 | N·m |
| Max. Speed (200V) | 28 | rpm |
| Continuous Speed | 22 | rpm |
| Torque Constant (200V) | 45 | N·m/A |
| Max. Current (200V) | 4.0 | Arms |
| Continuous Current (200V) | 1.6 | Arms |
| EMF Constant (200V) | 8.1 | V/(rpm) |
| Phase Resistance (20°C) | 2.6 | Ω |
| Phase Inductance | 2.6 | mH |
| Moment of Inertia (JA) | 3.2 | kg·m² |
| Moment of Inertia (J) | 33 | kgf·cm·s² |
| Encoder Resolution (Motor) | 2500 | p/r |
| Encoder Resolution (Output, ×4) | 1,000,000 | p/r |
| One-way Positional Accuracy | 30 | arcsec |
| Torsional Stiffness | 490 × 10³ | kgf·m/rad |
| Allowable Radial Load | 4.9 | kN |
| Allowable Axial Load | 14.7 | kN |
| Allowable Moment Load | 370 | N·m |
| Mass | 4.0 | kg |
| Protection Degree | IP44 | - |
| Operating Temp. | 0–40 | °C |
| Storage Temp. | -20–60 | °C |
| Humidity (Operating/Storage) | 20–80%RH (non-condensing) | %RH |
| Vibration Resistance | 24.5 | m/s² (10–400 Hz) |
| Shock Resistance | 294 | m/s² |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
