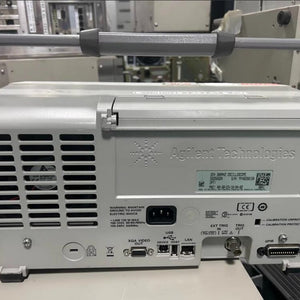

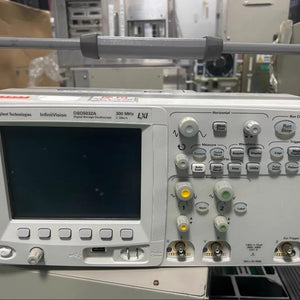

1 PCS used Agilent DSO5032A Digital Oscilloscope #LYQ007
1 PCS used Agilent DSO5032A Digital Oscilloscope #LYQ007
| Parameter | Specification |
|---|---|
| Model | DSO5032A |
| Bandwidth | 300 MHz |
| Channels | 2 analog channels |
| Maximum Sampling Rate | 2 GSa/s (2 Giga-samples per second) |
| Standard Memory Depth | 8 Mpts (8 Mega-points) |
| Maximum Vertical Resolution | Up to 12 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div (1-2-5 sequence) |
| Time Base Range | 500 ps/div to 50 s/div |
| Waveform Update Rate | Up to 100,000 waveforms/sec |
| Display | 6.3-inch color XGA LCD (1024 x 768), 256 intensity levels |
| Trigger Types | Edge, pulse width, pattern, TV (composite, HDTV, EDTV), duration, sequence, serial bus |
| Serial Bus Trigger & Decode | Hardware-accelerated for I²C, SPI, CAN, LIN, FlexRay, MIL-STD-1553, RS-232/UART |
| Automatic Measurements | 23 types, with min, mean, standard deviation, max, count statistics |
| Math Functions | Add, subtract, multiply, integrate, differentiate, FFT |
| Interfaces (Standard) | 2 USB Host, 1 USB Device, 10/100 LAN, GPIB, XGA video output |
| Power Requirements | 100-240 VAC, 50/60 Hz, 300 VA max |
| Operating Temperature | 0°C to 55°C |
| Weight | Approx. 4.4 kg (9.7 lb) |
| Dimensions (W x H x D) | 335 mm x 155 mm x 216 mm (13.2 in x 6.1 in x 8.5 in) |
| Technology | MegaZoom III deep memory and display technology |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
