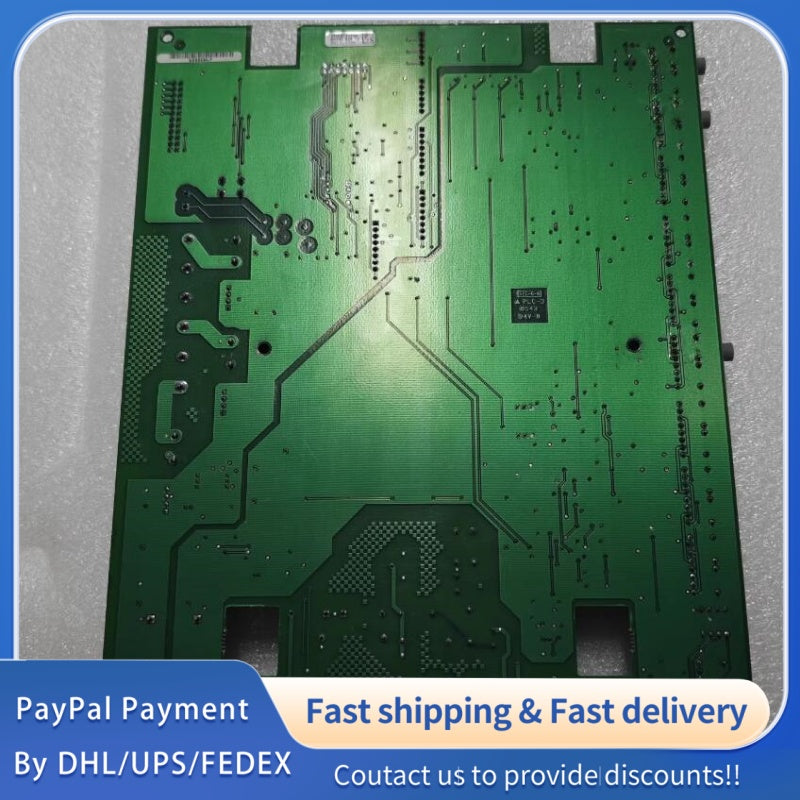

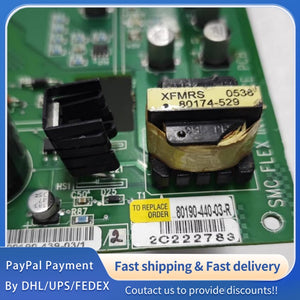

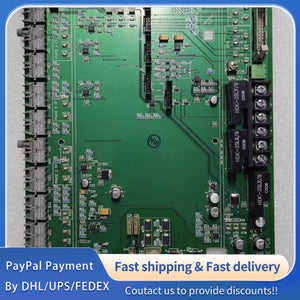

Part Number: 80190-440-03-R; Product Name: ABB Industrial Control Card
Brand: ABB (A global leader in power and automation technologies, providing high-reliability control and drive solutions for industrial applications);
Product Status: Original New Unit; Product Category: Industrial Grade Control Card, designed for signal processing, logic control and system communication in ABB drive systems.
Core Application: Specifically compatible with ABB ACS580/ACS880 series AC drives, widely used in metallurgy, mining, petroleum & chemical, water treatment, and general machinery industries. It realizes precise signal conversion, drive logic control and remote communication, ensuring stable operation of the whole drive system.
Core Features: High-precision signal processing capability; Seamless integration with ABB drive main control units; Rich I/O interfaces for flexible expansion; Strong anti-interference performance and stable operation in harsh industrial environments; Compliant with global industrial control standards.
2. Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Power Supply Parameters
Supply Voltage: +24 VDC (Main Power Supply); Voltage Tolerance: ±10% (21.6 VDC ~ 26.4 VDC);
Power Consumption: ≤ 5 W (Normal Operation); Standby Power Consumption: ≤ 1 W;
Isolation Voltage: 2500 VAC (Between Control Circuit and Power Circuit, Duration 1 min, per IEC 61140 Standard).
2.2 Signal Processing Parameters
Analog Input Channels: 4 Channels (Differential Input, 0~10 VDC / 4~20 mA Selectable);
Analog Input Resolution: 16 Bits; Input Accuracy: ±0.1% FSR (Full Scale Range);
Analog Output Channels: 2 Channels (0~10 VDC / 4~20 mA Selectable, Load Capacity: ≤ 500 Ω);
Digital Input Channels: 8 Channels (Dry Contact / NPN Open Collector, 24 VDC Rated);
Digital Output Channels: 4 Channels (Relay Output, Contact Rating: 250 VAC / 30 VDC, 5 A Max).
2.3 Communication Parameters
Communication Protocol: Modbus RTU (Standard), Optional Profibus DP / CANopen;
Communication Interface: RS485 (Half-Duplex), Opto-Isolated Protection;
Baud Rate: 9600 ~ 19200 bps (Selectable); Data Bits: 8; Stop Bits: 1 / 2 (Selectable); Parity: None / Odd / Even (Selectable).
2.4 Response Performance
Signal Response Time: ≤ 1 ms (Analog Signal); Logic Processing Delay: ≤ 2 ms;
Switching Frequency: Up to 10 kHz (Compatible with Drive Control Signals).
