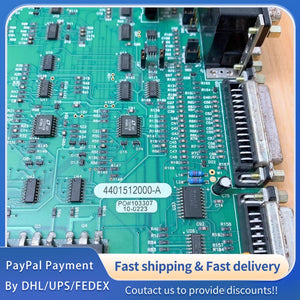

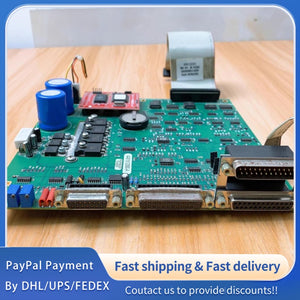

1 PCS used SEREN MC2 control board P/N 4401512000-A #LYQ007

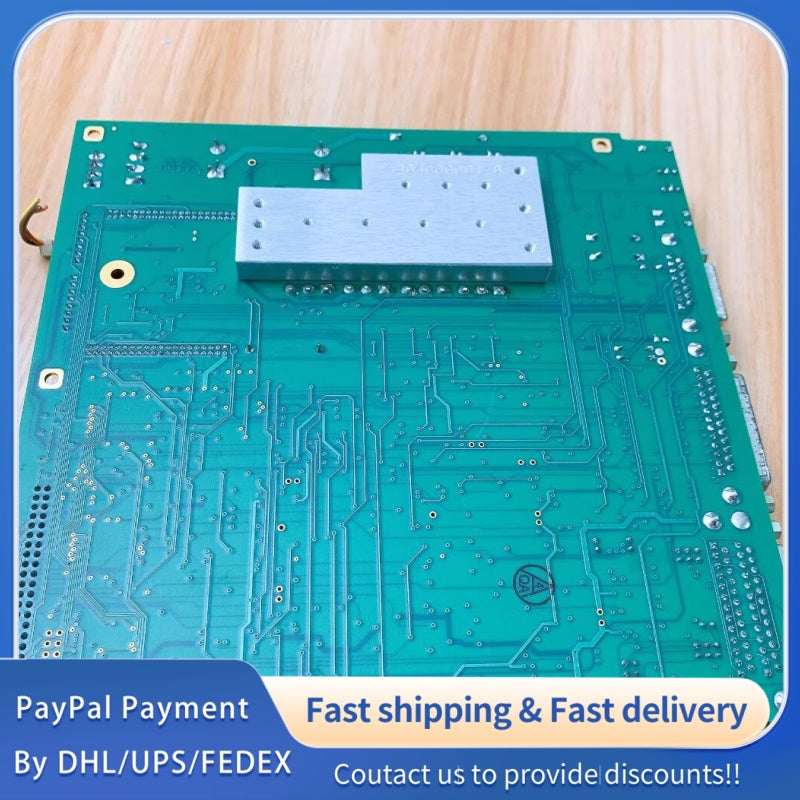

1 PCS used SEREN MC2 control board P/N 4401512000-A #LYQ007
| Parameter Category | Parameter Item | Specification | Value/Range | Notes |
|---|---|---|---|---|
| General Specs | Product Type | RF Matching Network Controller | MC2 Series | Seren IPS Inc. |
| Part Number | Main Board Assembly | 4401512000-A | Factory Original | |
| Weight | Main Unit Only | 7.5 lbs (3.2 kg) | Includes mounting bracket | |
| Enclosure | ½ Rack Form Factor | 3.47" H x 9.50" W x 13.03" D | (88.14mm x 241.30mm x 330.86mm) | |
| Power Input | AC Line Voltage | Field-Selectable | 98–125 VAC or 198–250 VAC | 50/60 Hz |
| Power Consumption | Maximum | 100 VA | ||
| Fuse Rating | Time-Delay Fuse | 1.6A, 250V, 5mm x 20mm | ||
| Power Cord | 110V Model | IEC320-C13 to NEMA 5-15P, 2m | ||
| 220V Model | IEC320-C13 to unterminated leads, 2m | |||
| Control & Interface | Operating Modes | Auto/Manual | AUTO (Automatic), MAN (Manual) | Independent Load/Tune control |
| Capacitor Position Feedback | Analog Signal | 0.00 VDC = Min, 5.00 VDC = Max | Tune & Load Capacitors | |
| RS-232 Interface | Serial Communication | Standard RS-232 | System Controller Connectivity | |
| Analog Control Inputs | PRELOAD/PRETUNE | TTL/HCMOS Compatible | Active High, Internally Pulled Down | |
| Analog Voltage Inputs | LOADPSETV/TUNEPSETV | 0.00–5.00 VDC | Preset Voltage Position Input | |
| Signal Monitoring | Forward Power Input | Analog Loop-Thru | 0.00–5.00 VDC (0–9999 W Configurable) | Requires RF Generator Interface |
| Reflected Power Input | Analog Loop-Thru | 0.00–5.00 VDC (0–9999 W Configurable) | Requires RF Generator Interface | |
| DC/RF Probe Input | Analog Signal | -10.00 to +10.00 VDC | Matching Network Probe Signal | |
| Phase/Magnitude Test Points | Buffered Output | 0.080" (2.03mm) Probe Size | Direct Measurement Access | |
| Environmental | Operating Temperature | Ambient | 0 to +40°C | |
| Operating Humidity | Non-Condensing | 10% to 90% | ||
| Configuration Defaults | Load Capacitor Low Limit | Factory Default | 2% | Configurable 2–98% |
| Tune Capacitor Low Limit | Factory Default | 2% | Configurable 2–98% | |
| RFON Signal Polarity | Factory Default | Active Low | Configurable to Active High | |
| DC Probe Attenuation Factor | Factory Default | 200:1 | Configurable 1:1 to 9999:1 |
