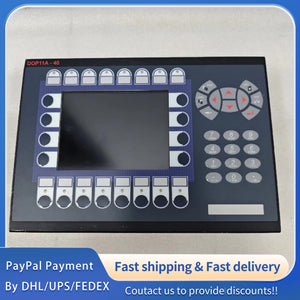

1 PCS USED SEW HMI Touch Panel DOP11A-40 #LYQ007
1 PCS USED SEW HMI Touch Panel DOP11A-40 #LYQ007
1 PCS USED SEW HMI Touch Panel DOP11A-40 #LYQ007

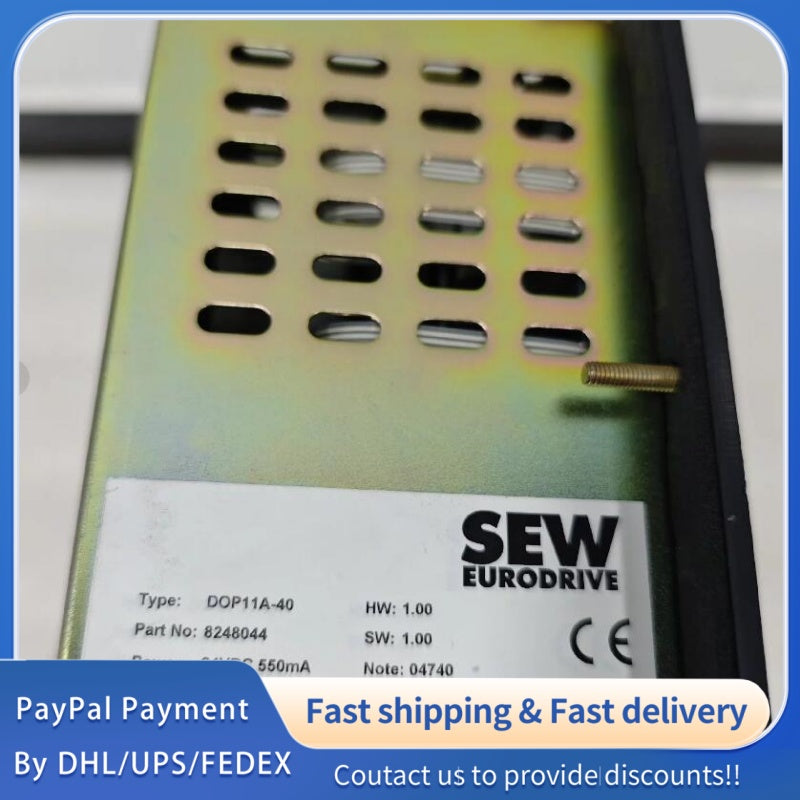

Part Number: DOP11A-40; Model: DOP11A-40; Product Name: SEW DOP11A-40 Industrial HMI Touch Panel; Product Series: SEW DOP Series, Standard-Function Human-Machine Interface for Industrial Automation Systems
Brand: SEW-EURODRIVE (A global leader in drive technology and industrial automation solutions, with decades of expertise in delivering reliable, integrated systems for motion control. SEW is renowned for its rugged product design, seamless compatibility with own-brand drives and controllers, and tailored solutions for harsh industrial environments. Serving industries such as material handling, manufacturing, packaging, and logistics, the DOP11A-40 integrates intuitive touch operation, stable communication capabilities, and easy integration to enable efficient equipment monitoring and parameter configuration.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS Compliant); Product Category: Industrial HMI Touch Panel, designed as a cost-effective interaction terminal for automation systems, supporting real-time data visualization, device control, and basic fault diagnosis.
Core Application: Widely applicable in SEW drive-controlled systems, conveyor lines, packaging machinery, pumps, fans, and small to medium-sized production lines. It is particularly suitable for applications requiring simple operation logic, reliable performance under electromagnetic interference, and seamless compatibility with SEW inverters, gearmotors, and mainstream PLCs.
Core Features: 8-inch TFT color display with clear visual effect; Single-touch resistive touch panel supporting glove operation; Multiple communication interfaces for wide device compatibility; Rugged housing with IP65 front protection rating (per IEC 60529); Wide voltage input range and comprehensive protection mechanisms; Support for multi-language display (up to 16 languages); Easy configuration via SEW dedicated software; Fanless design for maintenance-free operation; Anti-EMI shielding for stable performance in industrial environments.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Display & Touch Performance Parameters
Display Specifications: Screen Size: 8.0-inch TFT Color Display; Resolution: 640×480 Pixels (VGA); Brightness: 400 cd/㎡ (Adjustable, 10~100% Step Dimming, Suitable for Indoor Industrial Environments); Contrast Ratio: 500:1; Color Depth: 65,536 Colors (True Color); Backlight: LED Backlight, Service Life: ≥50,000 Hours (Continuous Operation); Viewing Angle: ±80° (Horizontal), ±70° (Vertical) for clear viewing from multiple positions.
Touch Panel Performance: Touch Type: Single-Point Resistive Touch; Touch Accuracy: ±2 Pixels; Response Time: ≤15ms; Operation Method: Finger, Stylus, or Gloves (Thickness ≤5mm); Touch Durability: ≥1,000,000 Touches per Point; Surface Hardness: 6H (Scratch-Resistant Coating).
2.2 Electrical & Processing Performance Parameters
Power Supply Requirements: DC 12V~24V (Wide Voltage Input, ±10% Fluctuation Tolerance); Rated Input Current: 350mA@24VDC; Peak Input Current: 600mA (10ms Duration); Power Consumption: ≤8W (Normal Operation), ≤12W (Peak Load with Backlight at Maximum Brightness).
Processing Performance: CPU: 32-Bit ARM Cortex-M4 Processor, Clock Frequency: 600MHz; Program Memory: 7MB Built-in Flash ROM (Expandable via External Storage); Data Memory: 128MB DDR3 RAM; Real-Time Clock: Built-in, with Lithium Battery Backup (Service Life ≥3 Years) for timekeeping during power off; Data Logging Capacity: Up to 4GB via External USB Drive (Max 32GB Supported).
Protection Performance: ESD Protection: ±15kV (Air Discharge), ±8kV (Contact Discharge) Per IEC 61000-4-2; Surge Protection: ±2kV (Line to Ground) Per IEC 61000-4-5; Overvoltage Protection: ≥30V DC (Power Input); Overcurrent Protection: 1.0A (Power Circuit); Reverse Polarity Protection (Power Input); Short-Circuit Protection (Communication and USB Ports).
2.3 Communication Parameters

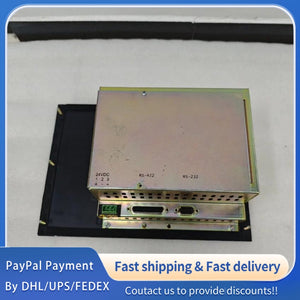

Communication Interfaces: 3 x Serial Ports (Com1: RS232/RS485 2W Selectable, Com2: RS232, Com3: RS485 4W, All Support Modbus RTU); 1 x USB 1.1 Host Port (for Data Logging, Program Transfer, and Peripherals like Printers); 1 x USB 1.1 Device Port (for Configuration and Project Download).
Protocol Support: Fully compatible with SEW proprietary protocols (for SEW drives and controllers); Compatible with Modbus RTU, Siemens PPI, Mitsubishi FX Series, and Omron Host Link protocols; Seamless integration with SEW inverters and gearmotors; Communication Delay: ≤1ms (Serial Port).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
