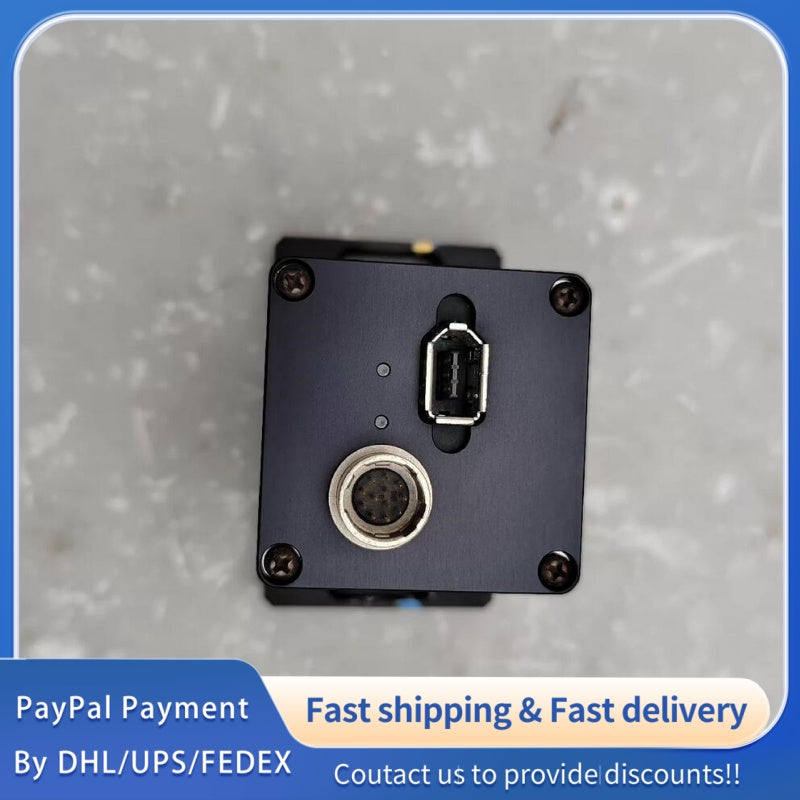

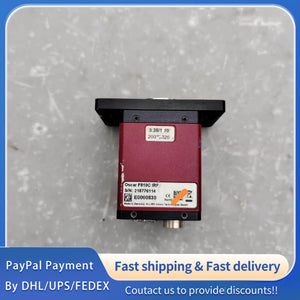

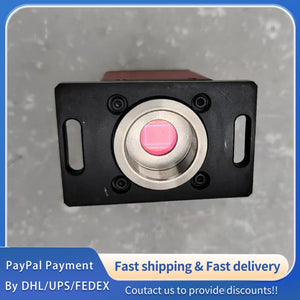

1 PCS used Allied Vision Oscar F810C IRF Technical Specifications
1 PCS used Allied Vision Oscar F810C IRF Technical Specifications
| Parameter Category | Parameter | Value |
|---|---|---|
| Model Identification | Full Model Name | Oscar F810C IRF |
| Sensor Type | Progressive Scan CCD | |
| Sensor Model | Sony ICX456 | |
| Optical Filter | IRF (Infrared Filter) | |
| Imaging Performance | Resolution | 3272 × 2469 (8 MP) |
| Pixel Size | 2.7 μm × 2.7 μm | |
| Sensor Format | Type 2/3" | |
| Max Frame Rate (Full Res) | 3.0 fps (IIDC V1.3, IEEE 1394a 400 Mb/s) | |
| A/D Conversion | 12 bit | |
| High SNR Mode | 16 bit (up to 24 dB SNR improvement) | |
| Gain Range | 0 – 24 dB (Manual / Auto) | |
| Interface | Digital Interface | IEEE 1394a (FireWire), 1 port, 400 Mb/s |
| Video Formats | Mono8; YUV411, YUV422, Y8‑R/G/B; RGB8; Raw8, Raw16 | |
| On-Board Memory | 32 MB FIFO | |
| GPIO | 0 TTL; 2 Opto‑coupled Inputs, 2 Opto‑coupled Outputs | |
| Serial Port | 1 × RS-232 | |
| Mechanical | Lens Mount | C-Mount |
| Dimensions (L×W×H) | 72.5 mm × 44 mm × 44 mm (incl. connectors, excl. lens/tripod) | |
| Weight | < 170 g | |
| Electrical | Power Supply | 8 – 36 V DC |
| Power Consumption (12 V) | < 4 W (Typ. 3.6 W) | |
| Environmental | Operating Temperature | +5 °C to +45 °C |
| Regulatory Compliance | CE, FCC Class B, RoHS | |
| Smart Features | Real-Time Image Processing | Auto White Balance, Auto Gain, Auto Shutter, LUT/Gamma, Color Correction, Hue/Saturation, Sharpness, Shading Correction, Image Mirror, Sub-sampling |
