1 PCS USED Pepperl+Fuchs Module RSD-TI2-Ex8 #LYQ007
1 PCS USED Pepperl+Fuchs Module RSD-TI2-Ex8 #LYQ007
1 PCS USED Pepperl+Fuchs Module RSD-TI2-Ex8 #LYQ007

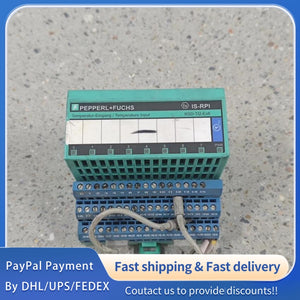

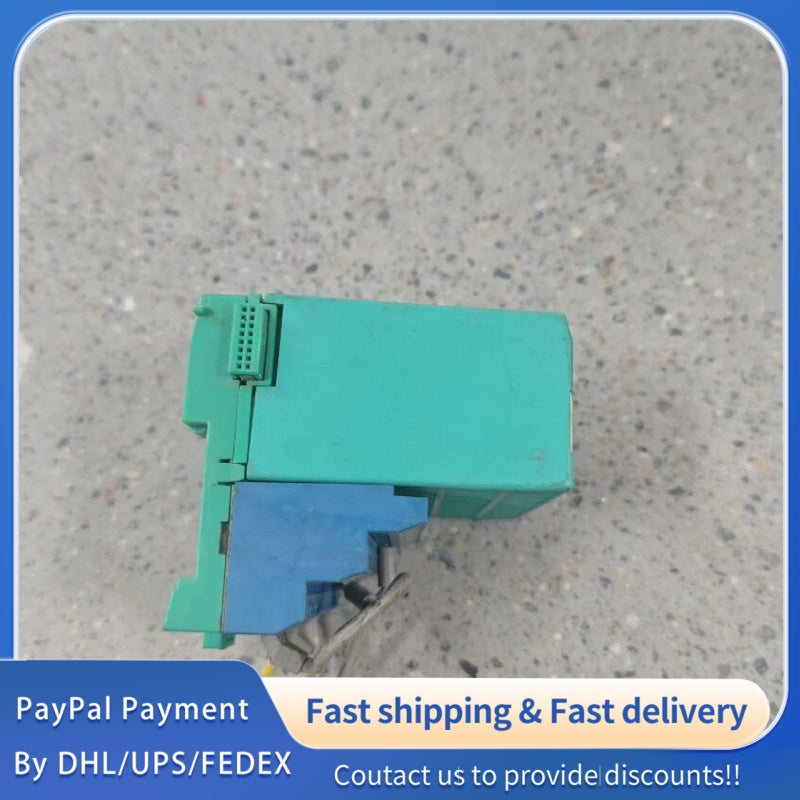

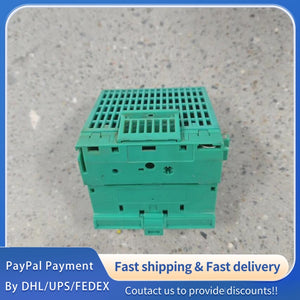

Part Number: RSD-TI2-Ex8; Model: RSD-TI2-Ex8; Product Name: Intrinsically Safe Input Module
Brand: Pepperl+Fuchs (A Global Leader in Industrial Sensor and Automation Solutions)
Product Status: Mass Production Unit; Product Category: Intrinsically Safe (Ex) Digital Input Module, Optimized for Hazardous Industrial Environments
Core Application: Specifically designed for signal acquisition in explosive hazardous areas, widely applicable in oil & gas, petrochemical, chemical, pharmaceutical, and coal mining industries. It converts intrinsic safety signals from field devices into standard industrial signals, enabling safe data transmission to non-hazardous area control systems while ensuring compliance with explosion-proof standards.
Core Features: Intrinsically Safe Circuit Design; 8 Channels of Digital Input; High Compatibility with Field Sensors; Reinforced Anti-Interference Capability; Industrial-Grade Housing; Seamless Integration with PLC and DCS Systems; Compliance with Global Explosion-Proof Certifications.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Input Type: 8 Channels Digital Input (Intrinsically Safe); Input Signal: 2-Wire / 3-Wire Proximity Sensors, Mechanical Contacts; Input Voltage: DC 18V - 30V (Power Supply for Intrinsically Safe Circuit);
Input Current: ≤ 8mA Per Channel (Typical); Response Time: ≤ 1ms (Signal On/Off); Signal Resolution: 0.1ms; Isolation: Galvanic Isolation Between Channels and Between Input/Output Circuits, Isolation Voltage: 2500Vrms (Continuous Operation).
Output Signal: Standard Digital Output (PNP/NPN Selectable via DIP Switch); Output Voltage: Compatible with PLC Input Voltage (DC 24V Typical); Output Current Capacity: ≤ 200mA Per Channel.
2.2 Communication & Control Parameters
Communication Interface: 1 × RS485 Port (Modbus RTU Protocol); Baud Rate: 9600 - 115200 bps (Configurable via Software); Data Bits: 8 Bits; Parity Check: None/Even/Odd (Selectable); Stop Bits: 1/2 (Selectable); Communication Distance: Up to 1200m (RS485, Using Shielded Twisted Pair Cable).
Control Mode: Remote Monitoring and Configuration via Modbus; Channel Status Indication: LED Indicator Per Channel (Green for On, Red for Fault); Configuration: Software Configurable (Parameter Setting via P+F Configuration Tool); Address Setting: DIP Switch Configurable (Address Range: 1 - 247).
2.3 Explosion-Proof & Protection Functions
Explosion-Proof Rating: Intrinsically Safe Type Ex ia IIC T6 Ga (For Hazardous Area Zone 0/1); Ex ia IIB T6 Ga (Optional); Protection Level: IP65 (Housing);
ESD Protection: ±15kV (Air), ±8kV (Contact) Per IEC 61000-4-2; Surge Protection: ±2kV (Line to Ground) Per IEC 61000-4-5; Over-Current Protection: Automatic Current Limiting Per Channel (Trigger Threshold: 10mA); Reverse Polarity Protection: Power Input and Signal Input Reverse Polarity Protected, No Component Damage.
3. Hardware Configuration & Power Supply
3.1 Power Supply Parameters
Power Supply Source: Single Power Input (Non-Intrinsically Safe Side); Power Supply Voltage: DC 24V ±10%; Power Consumption: ≤ 3W (Typical, Full Load); ≤ 5W (Peak);
Power Interface: Industrial-Grade Plug-in Connector (M12 or Terminal Block); Power Ripple: ≤ 1% (Rated Voltage Input); Power-On Delay: ≤ 2s; Standby Current: ≤ 50mA @ 24V DC.
3.2 Mechanical & Installation Parameters
Dimensions (W × H × D): 45mm × 175mm × 110mm (Housing); Mounting Type: DIN Rail Mounting (35mm Standard DIN Rail, Per EN 50022);
Connector Type: Intrinsically Safe Side: M12 Female Connectors (8 Channels); Non-Intrinsically Safe Side: Terminal Block or M12 Connector; Weight: ≤ 0.5kg (Net Weight); Installation Direction: Vertical (Recommended); Housing Material: High-Impact Polycarbonate (PC), Flame-Retardant Per UL 94 V-0.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
