1 PCS new ABB Excitation Unit Main Board UNS 0882A-PV1 3BHB006309R0001#LYQ007
1 PCS new ABB Excitation Unit Main Board UNS 0882A-PV1 3BHB006309R0001#LYQ007
1 PCS new ABB Excitation Unit Main Board UNS 0882A-PV1 3BHB006309R0001#LYQ007

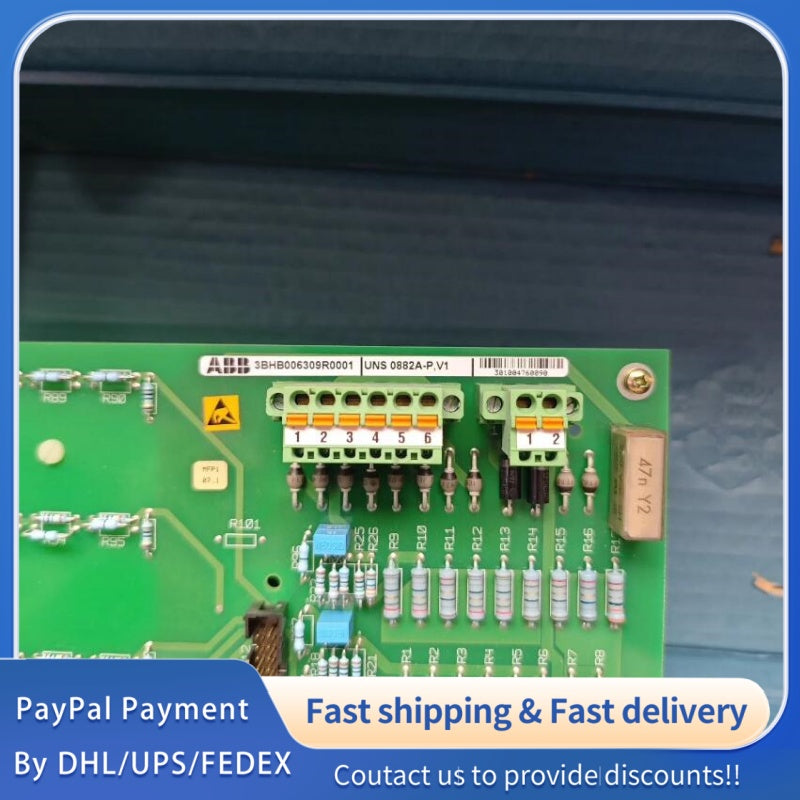

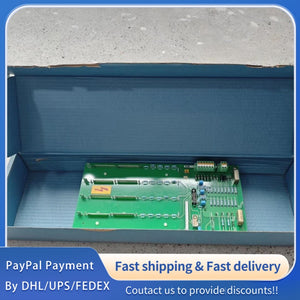

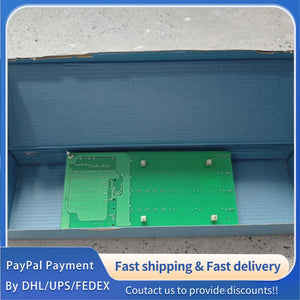

Part Number: 3BHB006309R0001; Model: UNS 0882A-P, V1; Product Name: Excitation Unit Main Control Board
Brand: ABB (A Global Leader in Power and Automation Technologies)
Product Status: Mass Production Unit; Product Category: High-Performance Excitation System Core Control Module, Optimized for Medium-to-Large Synchronous Motor Excitation Control
Core Application: Specifically designed for ABB high-power synchronous motor excitation systems, widely applicable in power generation, metallurgy, petrochemical, large-scale water treatment, and heavy-duty industrial fields. It undertakes key tasks including high-precision excitation current regulation, field voltage stabilization control, real-time system status monitoring, multi-dimensional fault diagnosis and protection, and seamless coordination with the main control system to ensure long-term stable operation of synchronous motors, optimize power factor, and enhance overall energy efficiency.
Core Features: Ultra-High Precision Excitation Regulation; Enhanced Industrial-Grade Circuit Design; Reinforced Anti-Interference Capability; Extended Multi-Signal Compatibility; Advanced Built-In Fault Diagnosis (with Self-Recovery Function); Compact and Rugged Mechanical Structure; Full Compatibility with ABB New-Generation Excitation Systems.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Excitation Control Range: Field Current 0 - 1500A DC (Software Configurable, Stepless Adjustment); Field Voltage 0 - 600V DC (Precision Adjustable); Regulation Accuracy: ±0.3% FS (Steady-State Condition); Dynamic Response Time: ≤ 20ms (From No-Load to Full-Load).
Analog Input (AI): 8 Channels, Optically Isolated; Input Type: 4 - 20mA DC / 0 - 10V DC / ±10V DC (Selectable Per Channel); Measuring Accuracy: ±0.15% FS; Isolation Voltage: 3000Vrms (Per Channel, Continuous Operation).
Analog Output (AO): 6 Channels, Optically Isolated; Output Type: 4 - 20mA DC (Load ≤ 600Ω) / 0 - 10V DC (Load ≥ 10kΩ); Output Accuracy: ±0.2% FS; Output Ripple: ≤ 0.1% FS.
Digital Input (DI): 16 Channels, Optically Isolated; Input Signal: 24V DC (PNP/NPN Selectable via Software); Input Current: 3 - 10mA @ 24V DC; Response Time: ≤ 30μs; Protection: Short-Circuit Protected and Reverse Polarity Protected.
Digital Output (DO): 10 Channels, Relay Output (2 Channels High-Power Relay); Rated Voltage: AC 250V / DC 30V; Maximum Output Current: 8A Per Channel (High-Power Relay), 5A Per Channel (Standard Relay); Response Time: ≤ 8ms; Overload and Short-Circuit Protection.
2.2 Communication & Control Parameters
Communication Interface: 1 × RS485 Port (Modbus RTU Protocol) / 1 × Ethernet Port (Profinet / Ethernet/IP Optional); Baud Rate (RS485): 9600 - 115200 bps (Configurable); Data Bits: 7/8 Bits (Selectable); Parity Check: None/Even/Odd (Selectable); Communication Distance: Up to 1200m (RS485).
Control Mode: Local Manual Control / Remote Automatic Control / External Signal Control / Master-Slave Synchronous Control (Switchable); Control Signal Delay: ≤ 0.8ms; Data Refresh Rate: ≥ 300Hz (Between Board and Main Control System); Address Setting: DIP Switch or Software Configurable (Address Range: 1 - 247); Support for Real-Time Data Transmission and Remote Parameter Configuration.
2.3 Protection Functions
ESD Protection: ±15kV (Air), ±8kV (Contact) Per IEC 61000-4-2; Surge Protection: ±4kV (Line to Ground), ±2kV (Line to Line) Per IEC 61000-4-5; Overvoltage Protection: Field Voltage Overload Protection, Trigger Threshold 110% of Rated Voltage, Automatic Discharge Protection.
Over-Current Protection: Field Current Overload Protection, Trigger Threshold 115% of Rated Current, Automatic Current Limiting and Alarm; Over-Temperature Protection: Built-In Dual Temperature Sensors, Trigger Threshold +85℃ (Alarm), +90℃ (Shutdown Protection); Reverse Polarity Protection: Power Input, Field Signal and Communication Signal Reverse Polarity Protection, No Component Damage; Under-Voltage Protection: Trigger Threshold 80% of Rated Control Voltage.
3. Hardware Configuration & Power Supply
3.1 Power Supply Parameters
Power Supply Source: Dual Power Input (Control Power + Driver Power); Control Power: DC 24V ±15%; Driver Power: DC 110V / 220V ±10% (Selectable); Power Consumption: ≤ 35W (Typical, Full Load); ≤ 45W (Peak);
Power Interface: Industrial-Grade Locking Plug-in Connector, Anti-Vibration and Anti-Disconnection Design; Power Ripple: ≤ 0.8% (Rated Voltage Input); Standby Current: ≤ 80mA @ 24V DC; Power-On Delay: ≤ 2s.
3.2 Mechanical & Installation Parameters
Dimensions (W × H × D): 160mm × 210mm × 32mm (Printed Circuit Board, PCB); Mounting Type: DIN Rail Mounting (35mm Standard DIN Rail) or Panel Mounting via Fixing Holes (Fully Compatible with ABB Standard Excitation Cabinets);
Connector Type: Industrial-Grade Board-to-Wire Connectors, Gold-Plated Contacts for Anti-Corrosion, Stable Connection and Extended Service Life; Weight: ≤ 0.9kg (Net Weight, PCB Assembly); Installation Direction: Vertical or Horizontal (No Impact on Performance); PCB Coating: Three-Layer Conformal Coating for Moisture, Dust and Corrosion Resistance.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
