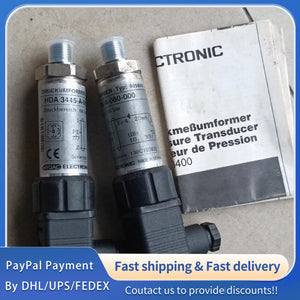

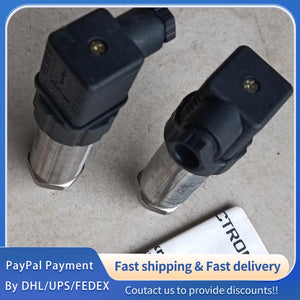

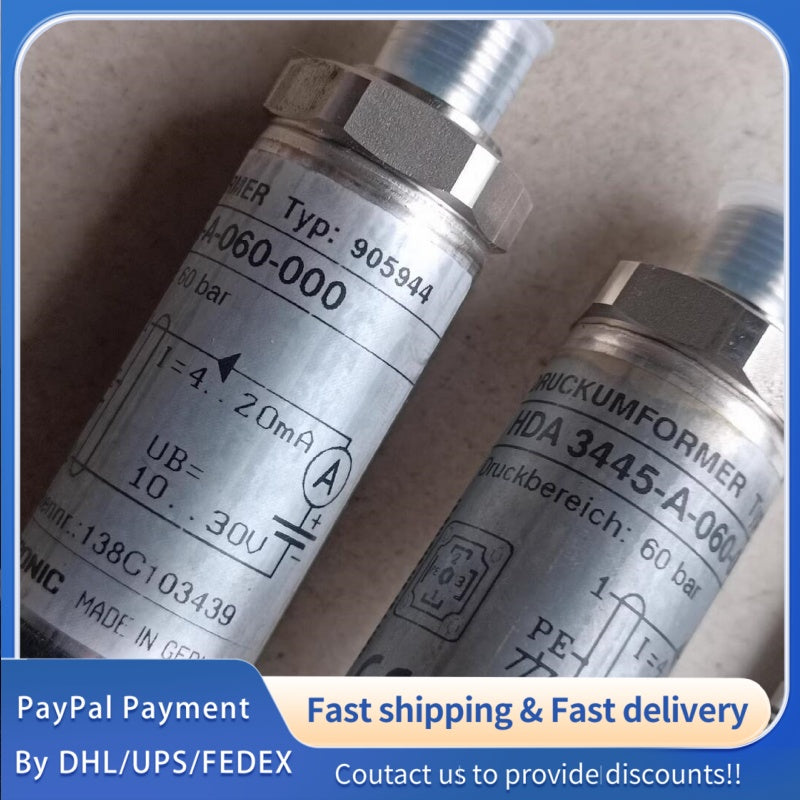

1 PCS used HYDAC HDA‑3445‑A‑060‑000 Pressure Transmitter#LYQ007
1 PCS used HYDAC HDA‑3445‑A‑060‑000 Pressure Transmitter#LYQ007
| Parameter | Specification |
|---|---|
| Model | HDA‑3445‑A‑060‑000 |
| Type | Relative pressure transmitter |
| Measuring range | 0 … 60 bar |
| Output signal | 4 … 20 mA (2‑wire) |
| Supply voltage | 12 … 30 VDC |
| Accuracy (DIN 16086) | ≤ ± 1 % FS max., ≤ ± 0.5 % FS typ. |
| Non‑linearity | ≤ 0.3 % FS max., ≤ 0.2 % FS typ. |
| Hysteresis | ≤ 0.4 % FS max., ≤ 0.25 % FS typ. |
| Repeatability | ≤ 0.1 % FS |
| Long‑term drift | ≤ ± 0.3 % FS / year |
| Temperature compensation (zero) | ≤ ± 0.025 % FS / °C max., ≤ ± 0.015 % FS / °C typ. |
| Temperature compensation (span) | ≤ ± 0.025 % FS / °C max., ≤ ± 0.015 % FS / °C typ. |
| Compensated temp. range | −10 … +70 °C |
| Operating temp. range | −25 … +80 °C |
| Storage temp. range | −40 … +100 °C |
| Fluid temp. range | −25 … +80 °C |
| Response time | < 10 ms |
| Mechanical connection | G 1/4 A ISO 1179‑2, male |
| Electrical connection | DIN EN 175301‑803, 3‑pole + PE |
| Wetted parts | Stainless steel (316L) |
| Protection class | IP65 |
| Weight | Approx. 0.19 kg |
| Certifications | CE, UL (E318391) |
