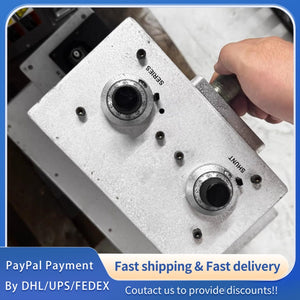

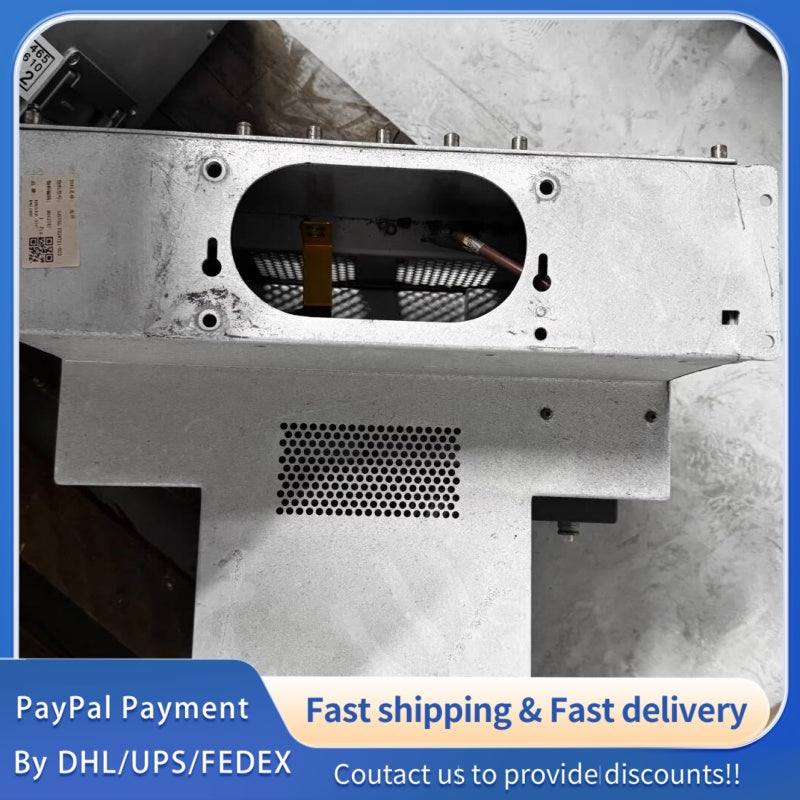

1 PCS used Endura RF Matcher TR28721-022 #LYQ007
1 PCS used Endura RF Matcher TR28721-022 #LYQ007
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Product Name
|
RF Matcher
|
-
|
Genuine Endura Product, High Precision Industrial Grade
|
|
Model Number
|
TR28721-022
|
-
|
Original Factory Model, Standard Configuration
|
|
Brand
|
Endura
|
-
|
Professional RF Matching & Industrial Electronic Component Brand
|
|
Application
|
RF Signal Matching, Impedance Tuning, Power Transmission
|
-
|
Semiconductor Equipment, RF Power Systems, Industrial Microwave Equipment
|
|
Working Principle
|
Automatic Impedance Matching
|
-
|
Real-Time Tuning, Improve RF Power Utilization Efficiency
|
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Notes
|
|
Operating Frequency Range
|
13.56
|
-
|
40
|
MHz
|
Factory Calibrated, Stable Frequency Response
|
|
Input Impedance
|
50
|
50
|
50
|
Ω
|
Standard RF Impedance, Good Matching Performance
|
|
Output Impedance
|
50
|
50
|
50
|
Ω
|
Consistent with Input, Low Signal Loss
|
|
Matching Range
|
10
|
-
|
1000
|
Ω
|
Automatic Tuning, Wide Matching Scope
|
|
Insertion Loss
|
-
|
0.1
|
0.3
|
dB
|
Low Loss, High RF Power Transmission Efficiency
|
|
VSWR (Voltage Standing Wave Ratio)
|
-
|
1.1
|
1.3
|
-
|
Factory Calibrated, Excellent Matching Effect
|
|
Max Input Power
|
-
|
500
|
1000
|
W
|
Continuous Wave, Stable Operation Under Rated Power
|
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Matching Speed
|
≤50
|
ms
|
Rapid Tuning, Real-Time Response to Impedance Changes
|
|
Control Mode
|
Automatic/Manual
|
-
|
Configurable, Factory Default: Automatic
|
|
Control Signal
|
0-10
|
VDC
|
Analog Control, Linear Response
|
|
Matching Accuracy
|
±0.5
|
%
|
High Precision Tuning, Meet Industrial Requirements
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
