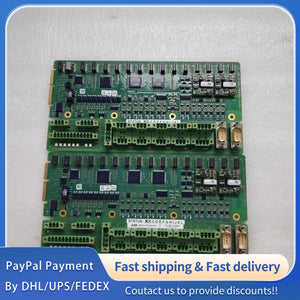

1 PCS USED ABB Communication Board 3BHE027632R0101 #LYQ007

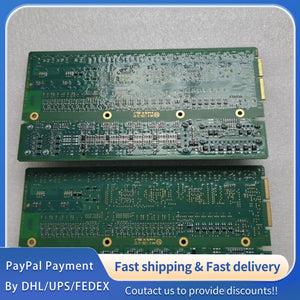

1 PCS USED ABB Communication Board 3BHE027632R0101 #LYQ007
1 PCS USED ABB Communication Board 3BHE027632R0101 #LYQ007
Part Number: 3BHE027632R0101; Product Name: Industrial Serial Communication Board
Brand: ABB (ABB Group, a Global Leader in Power and Automation Technologies for Industrial Applications)
Product Status: Original New Unit; Product Category: Serial Communication Expansion Board, Specifically Designed for ABB Distributed Control Systems (DCS) and Industrial Control Panels
Core Application: Widely integrated into ABB DCS, industrial automation control systems, and frequency converter control panels. It enables reliable data transmission between central controllers, remote I/O modules, and field devices in harsh industrial environments such as power plants, chemical processing facilities, and manufacturing workshops. Ideal for bridging communication gaps in critical control loops requiring stable serial signal exchange.
Core Features: Dual serial communication ports for multi-device connection; Strong anti-electromagnetic interference (EMI) performance; Wide compatibility with ABB native control systems; Compact design for cabinet-mounted installation; Built-in fault detection and signal monitoring functions; Optically isolated signal transmission for enhanced stability.
2. Electrical & Communication Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Parameters
Supply Voltage: DC 24V (±10% Tolerance); Rated Operating Current: 250mA (Typical), 450mA (Peak);
Power Consumption: ≤10.8W (Typical, Full Load Operation); Insulation Resistance: ≥100MΩ (500V DC);
Input/Output Signal Isolation: Optically Isolated (2.5kVrms, Persistent for 1 Minute); Logic Level: TTL/RS-485/RS-232 Configurable;
Signal Response Time: ≤2μs; Operating Frequency Compatibility: 50/60Hz (System Power Synchronization).
2.2 Communication Performance
Communication Ports: 2 x RS-485/RS-232 Selectable Ports (Duplex, Configurable via Jumper);
Supported Protocols: Modbus RTU, ABB Proprietary Communication Protocol, Profibus DP (Slave Mode);
Baud Rate: Configurable (9.6Kbps, 19.2Kbps, 38.4Kbps, 115.2Kbps, 187.5Kbps); Parity Check: None, Odd, Even (Selectable);
Data Bits: 7/8 Bits (Configurable); Stop Bits: 1/2 Bits (Configurable); Maximum Number of Connected Nodes: 32 Nodes per RS-485 Port;
Communication Distance: Up to 1200m (RS-485 Mode, Using Shielded Twisted Pair Cable); Frame Error Rate (BER): ≤10⁻¹² (At Rated Communication Distance).
2.3 Protection Functions
Overcurrent Protection (OCP): Triggered When Operating Current Exceeds 700mA, Automatic Recovery After Fault Removal;
Undervoltage Protection (UVP): Triggered When Supply Voltage ≤19.2V, Fault Alarm Output via Digital Signal;
Overheating Protection (OTP): Triggered When Board Temperature ≥70℃, Reduced Power Consumption Mode Activated;
Additional Protection: Reverse Polarity Protection (Power Input), Short-Circuit Protection (Signal Ports), ESD Protection for Communication Interfaces.
