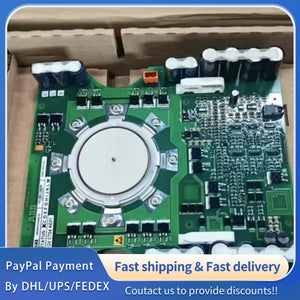

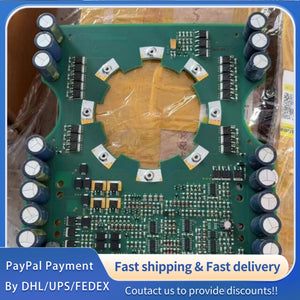

1 PCS new ABB High-Voltage Control Board GVC714A101 3BHE024415R0101 #LYQ007
1 PCS new ABB High-Voltage Control Board GVC714A101 3BHE024415R0101 #LYQ007
1 PCS new ABB High-Voltage Control Board GVC714A101 3BHE024415R0101 #LYQ007
Part Number: 3BHE024415R0101; Model: GVC714A101; Product Name: High-Voltage Control Board
Brand: ABB (A Global Leader in Power and Automation Technologies)
Product Status: Mass Production Unit; Product Category: High-Voltage Inverter Control Board, Optimized for Medium and High-Voltage Power Conversion Systems
Core Application: Designed for ABB ACS 1000 series high-voltage inverters (315kW - 5000kW) and other medium/high-voltage power control systems. Responsible for IGBT gate drive control, signal acquisition, fault diagnosis, and communication coordination in high-voltage automation scenarios such as industrial motor speed regulation, power grid stabilization, and heavy-duty equipment control.
Core Features: High-Voltage Isolation Design; IGBT Gate Drive Control; Multi-Channel Signal Acquisition; Real-Time Fault Monitoring; Industrial-Grade EMC Protection; Compatible with ABB Inverter Control Systems; Optically Isolated I/O Interfaces.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Core Control & Drive Parameters
Drive Target: IGBT Modules for High-Voltage Inverters; Gate Drive Voltage: ±15V DC (Stable Output for IGBT On/Off Control); Gate Drive Current: Up to 2A (Peak, Suitable for Medium-Power IGBTs);
Control Signal Precision: Analog Signal Resolution ±0.1% FS; Digital Signal Response Time ≤10μs; PWM Output Frequency: 0 - 2kHz (Adjustable via System Configuration);
Compatible IGBT Specifications: Suitable for IGBT modules with collector-emitter voltage (Vce) up to 4.16kV, matching ABB ACS 1000 series inverter voltage levels (2.3kV, 3.3kV, 4.16kV).
2.2 Signal Acquisition & I/O Interface
Analog Input (AI): 8 Channels, Optically Isolated; Input Type: 0 - 10V DC / 4 - 20mA DC; Measuring Range: Voltage ±10V, Current 0 - 25mA; Isolation Voltage: 3750Vrms (Per Channel);
Digital Input (DI): 12 Channels, Optically Isolated, 24V DC Signal Compatible; Input Current: 5mA @ 24V DC; Response Time ≤1ms; Digital Output (DO): 8 Channels, Relay Output, Contact Rating: 250V AC / 30V DC, 5A;
Serial Communication Interface: 1 × RS485 Port (Modbus RTU Protocol), Baud Rate: 9600 - 115200 bps (Configurable); 1 × CAN Bus Port (For Internal System Communication), Supports CANopen Protocol.
2.3 Protection Functions
Overvoltage Protection: Trigger Threshold Adjustable (Typical 110% of Rated Voltage), Response Time ≤5μs; Undervoltage Protection: Trigger Threshold Adjustable (Typical 90% of Rated Voltage);
Overcurrent Protection: Fast Detection for IGBT Overcurrent, Trigger Time ≤2μs; Short-Circuit Protection: Direct Shutdown of Gate Drive Signal, with Fault Lockout Function;
ESD Protection: ±15kV (Air), ±8kV (Contact) Per IEC 61000-4-2; Surge Protection: ±2kV (Line to Ground) Per IEC 61000-4-5; Over-Temperature Protection: Built-in Temperature Sensor, Trigger Threshold +85℃.
3. Hardware Configuration & Power Supply
3.1 Power Supply Parameters
Power Supply Source: Dual Power Input (Main/Standby); Rated Input Voltage: DC 24V ±10% (Industrial Standard Voltage); Auxiliary Input Voltage: AC 220V ±10%, 50/60Hz;
Power Consumption: ≤30W (Typical, Full Load); ≤40W (Peak); Power Protection: Reverse Polarity Protection, Short-Circuit Protection, Overload Protection (120% of Rated Power).
3.2 Mechanical & Installation Parameters
Dimensions (W × H × D): 180mm × 220mm × 30mm (Printed Circuit Board, PCB); Mounting Type: Panel Mounting via Fixing Holes (Compatible with ABB Standard Inverter Cabinets);
Connector Type: Industrial-Grade Board-to-Board Connectors, Gold-Plated Contacts for Anti-Corrosion and Stable Connection; Weight: ≤0.8kg (Net Weight, PCB Assembly).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
