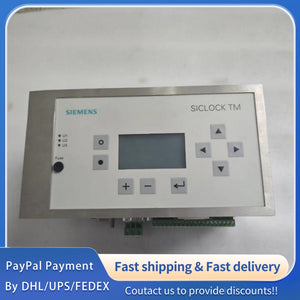

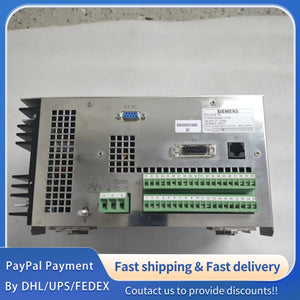

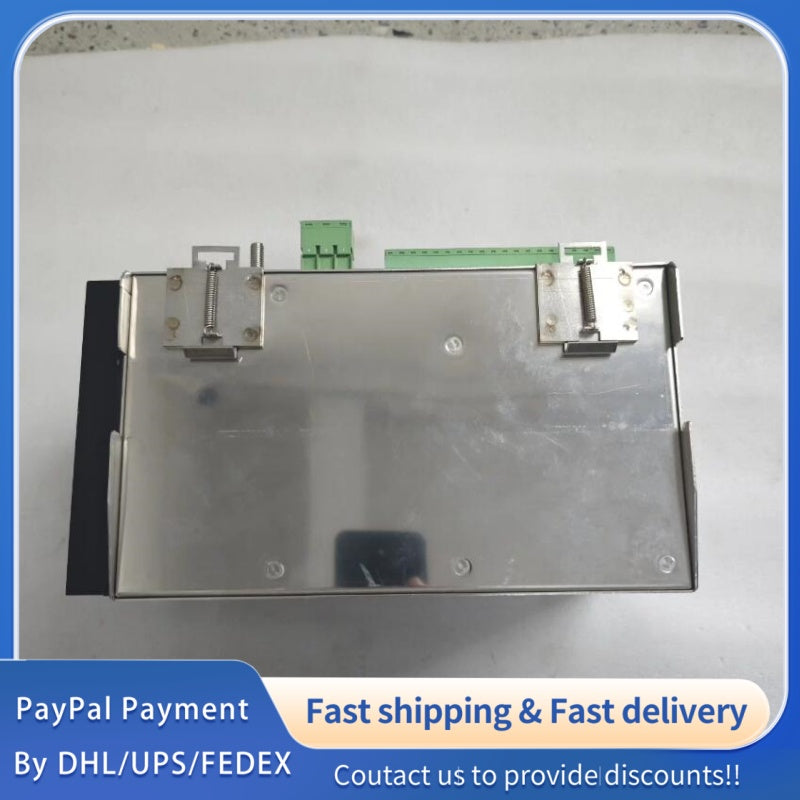

1 PCS USED Siemens SICLOCK TM controller E10433-E9600-H100 #LYQ007
1 PCS USED Siemens SICLOCK TM controller E10433-E9600-H100 #LYQ007
1 PCS USED Siemens SICLOCK TM controller E10433-E9600-H100 #LYQ007
Part Number: E10433-E9600-H100; Derivative Model: SICLOCK TM Network Time Controller with LCD Display & Multi-Protocol Sync
Alternate P/N: N/A (Fully Compatible with Siemens SICLOCK Series Accessories and Industrial Control Networks)
Brand: Siemens (Industrial Automation & Digital Factory Division)
Product Category: Industrial Time Controller (Network-Synchronized Clock & Timing Control Unit)
Product Series: Siemens SICLOCK TM Series (High-Precision Network Time Controllers for Industrial Applications)
Core Application: Specifically designed as a network-synchronized time controller, mainly used for providing precise time synchronization, time-based switching control, and event scheduling in industrial automation systems, smart factories, power plants, transportation hubs, and data centers. It ensures consistent time reference across the entire system, supports customized timing logic, and integrates seamlessly with PLC/DCS and network systems to optimize process coordination, data logging accuracy, and operational traceability.
Core Features: Support for multiple time synchronization protocols; high-precision timekeeping with RTC backup; 4-line alphanumeric LCD display for intuitive operation and status monitoring; configurable digital I/O for timing control; robust anodized aluminum housing for industrial environments; wide voltage supply range; multi-level password protection for parameter settings; remote configuration and monitoring via Ethernet; daylight saving time and multi-time zone adaptation.
2. Electrical Specifications
Supply Voltage: 24V DC (nominal); Voltage Tolerance: ±15% (20.4V DC ~ 27.6V DC); Power Consumption: ≤5W (typical operating condition with no load on outputs), ≤8W (maximum load condition with all outputs activated).
Digital Inputs: 4-channel configurable digital input (DI); Input Type: 24V DC (PNP/NPN selectable via software); Response Time: ≤10ms (typical); Input Impedance: ≥10kΩ; Isolation Voltage: 2500V AC (signal to power circuit, 1 minute duration per IEC 61131-2 standard).
Digital Outputs: 4-channel configurable digital output (DO); Output Type: Relay output (changeover contacts, NO/NC configurable); Maximum Switching Current: 2A per channel (resistive load), 0.5A per channel (inductive load); Switching Voltage: Up to 250V AC / 30V DC; Mechanical Life: ≥10⁶ operations; Electrical Life: ≥10⁵ operations (at rated load).
Time Synchronization: Supported Protocols: NTP (v1/v2/v3/v4), SNTP, PTP (IEEE 1588v2, optional module), DCF77 (optional radio receiver); Time Accuracy: ±1ms (with PTP synchronization), ±10ms (with NTP synchronization, under stable network conditions); RTC Backup: Replaceable lithium battery (CR2032), backup time ≥5 years (at 25°C ambient temperature), automatic time retention when power is off.
Communication Interfaces: 1 × Ethernet port (RJ45, 10/100Mbps, auto-negotiation, TCP/IP protocol stack) for NTP/PTP synchronization and remote management; 1 × RS-485 port (half-duplex, Modbus RTU protocol, baud rate 9600-115200bps configurable) for local communication with PLC/DCS systems.
Protection Functions: Reverse polarity protection (supply voltage); Short-circuit protection (output channels, self-recovering); ESD Protection: ±8kV (contact discharge), ±15kV (air discharge) per IEC 61000-4-2; Surge Protection: ±2kV (power supply lines) per IEC 61000-4-5; Over-temperature protection (automatic alarm at 70°C).
