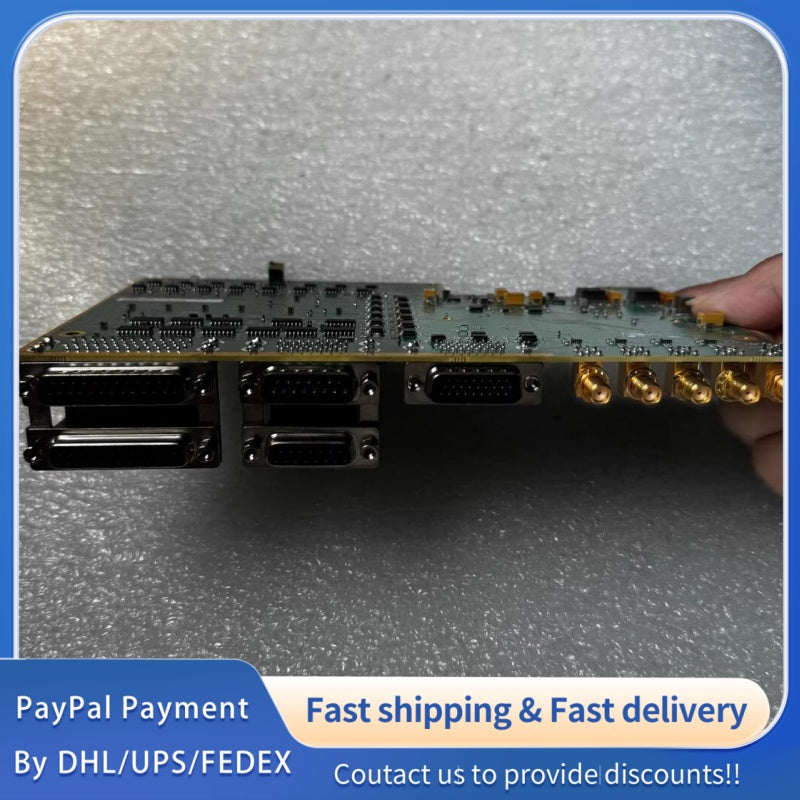

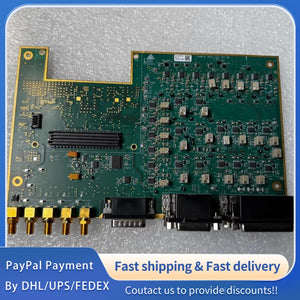

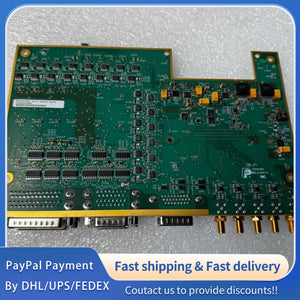

1 PCS used Lam Research Circuit Board 810-240285-101 Rev C #LYQ007
1 PCS used Lam Research Circuit Board 810-240285-101 Rev C #LYQ007
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Product Name
|
Lam Research Circuit Board
|
-
|
Genuine Original Factory Part, 100% Authentic
|
|
Product Model
|
810-240285-101
|
-
|
Factory Standard Model Number, Non-Replacement
|
|
Revision
|
Rev C
|
-
|
Official Verified Revision, Factory Calibrated
|
|
Product Type
|
Industrial Precision Circuit Board
|
-
|
Designed for Lam Research Industrial Equipment
|
|
Application
|
Lam Research Semiconductor Manufacturing Equipment Control
|
-
|
Suitable for High-Precision Industrial Control Scenarios
|
|
Design Standard
|
Lam Research Factory Circuit Board Standard, ISO 9001 Certified
|
-
|
Complies with Industrial Control Hardware Requirements
|
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Notes
|
|
Supply Voltage
|
110
|
120/230
|
240
|
V AC
|
50/60 Hz, ±10% Voltage Fluctuation Tolerance
|
|
DC Output Voltage
|
3.2
|
3.3
|
3.4
|
V DC
|
Stable Power Supply for Circuit Core Components
|
|
Operating Current
|
1.8
|
2.0
|
2.2
|
A
|
Rated Working Current, Full Load Condition
|
|
Static Power Consumption
|
-
|
5
|
8
|
W
|
Standby Mode, Energy-Saving Design
|
|
Max Working Power
|
-
|
120
|
130
|
W
|
Matching Industrial Control Full Load Operation Requirement
|
|
Insulation Resistance
|
≥100
|
-
|
-
|
MΩ
|
500V DC, At 25℃, 50% RH
|
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Control Signal Type
|
Analog (0-10V), Digital (TTL/CMOS)
|
-
|
Dual Signal Support for Precision Control
|
|
Communication Interface
|
RS-485, Ethernet (1000Mbps), USB 2.0
|
-
|
Multi-Interface for Remote Control & Data Transmission
|
|
Input/Output Channels
|
12×Digital Input, 8×Digital Output, 6×Analog Input
|
-
|
High Channel Density for Multi-Device Control
|
|
Control Accuracy
|
±0.1
|
%
|
Meets Lam Research High-Precision Control Standard
|
|
Response Time
|
≤8
|
ms
|
Fast Response for Real-Time Control Scenarios
|
|
Clock Frequency
|
100
|
MHz
|
Stable Clock for Precise Signal Synchronization
|
