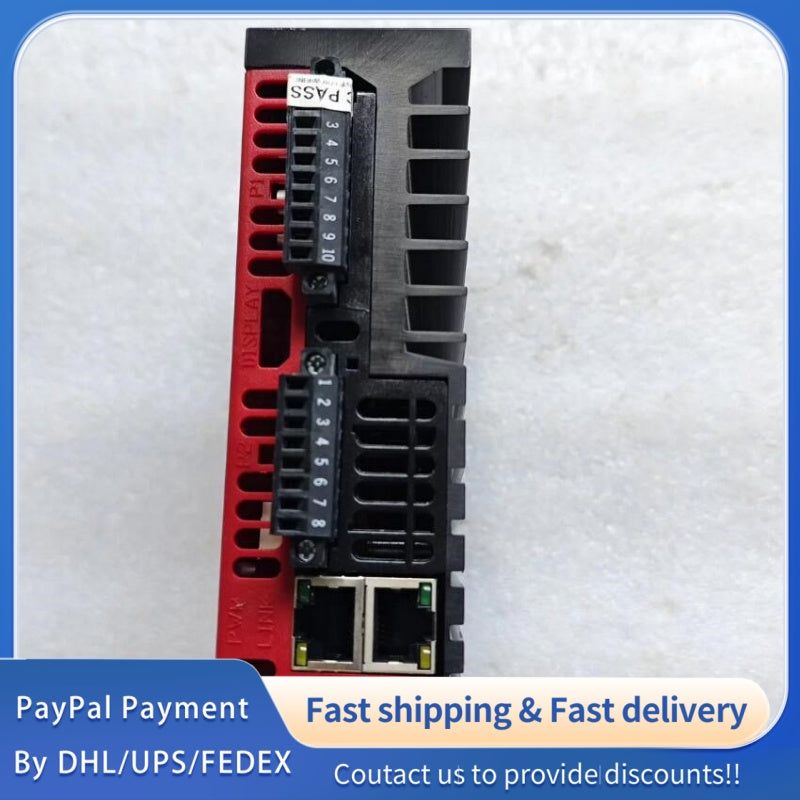

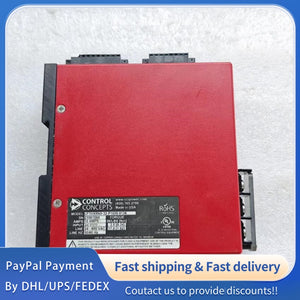

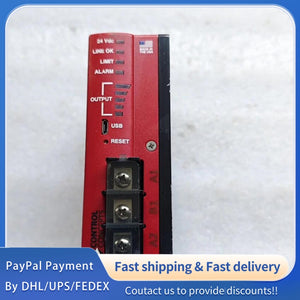

1 PCS USED Control Concepts Controller uF1HXRN0-32-P1000-0136#LYQ007
1 PCS USED Control Concepts Controller uF1HXRN0-32-P1000-0136#LYQ007
1 PCS USED Control Concepts Controller uF1HXRN0-32-P1000-0136#LYQ007
Part Number: uF1HXRN0-32-P1000-0136; Model: uF1HXRN0-32-P1000-0136; Product Name: Industrial Grade Controller
Brand: Control Concepts (A Professional Provider of Industrial Automation Control Solutions)
Product Status: Mass Production Unit; Product Category: High-Performance Industrial Controller, Suitable for Precision Automation Control Systems
Core Application: Designed for precision control of industrial automation equipment, including conveyor systems, packaging machinery, material handling equipment, and process control systems. Enables seamless integration with sensors, actuators, and upper-level control systems to achieve stable and efficient operation.
Core Features: Multi-mode control capability; High-precision signal processing; Robust anti-interference performance; Expandable I/O interface; Compact design for easy integration; Compliance with international industrial control standards.
2. Hardware Configuration Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Core Control Performance
Control Chip: High-Performance Industrial Control MCU; Control Type: PID Control, V/F Control, Vector Control (Configurable); Operating Frequency: 50/60 Hz (Power Supply Frequency), 0-20 kHz (PWM Control Frequency);
Control Resolution: Up to 10000 Pulses/Rev (Position Control); Speed Regulation Range: 50-30000 RPM (Compatible with Matched Motors); Response Time: ≤ 10ms (Typical).
2.2 Pin Configuration & Interface
Power Pins: L (AC Input), N (AC Input), PE (Protective Ground); Auxiliary Control Power: DC 24V ±5%;
Control Pins: PUL (Pulse Input), DIR (Direction Control), ENA (Enable Signal), ALM (Alarm Output); Feedback Pins: Encoder Input (A/B/Z Phase), Analog Feedback Input;
I/O Interface: 8 × Isolated Digital Inputs, 4 × Isolated Digital Outputs, 2 × Analog Inputs (4-20mA/0-10V), 1 × Analog Output (4-20mA/0-10V), 1 × RS485 Communication Port (Modbus RTU Protocol), 1 × Ethernet Port (Optional).
3. Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
3.1 Power Supply Parameters
Power Supply Source: Single-Phase AC Power; Rated Input Voltage: AC 220V ±10% (Optional AC 110V); Frequency Range: 50/60 Hz ±5%; Auxiliary Control Power: DC 24V ±5%;
Rated Output Current: 32A (Continuous), 64A (Peak, 10s); Power Consumption: ≤ 500W (Typical, Full Load);
Power Protection: Overcurrent Protection (OCP), Overvoltage Protection (OVP), Undervoltage Protection (UVLO), Over-Temperature Protection (OTP), Short-Circuit Protection (SCP), Reverse Polarity Protection.
3.2 Signal & Control Specifications
Control Signal Level: NPN/PNP (Configurable), Input Impedance: ≥ 10kΩ; Analog Input Accuracy: ±0.1% FS; Analog Output Accuracy: ±0.2% FS;
Communication Protocol: Modbus RTU (RS485), Ethernet/IP (Optional); Baud Rate (RS485): 9600-115200 bps (Configurable); Interface Protection: ESD Protection ±8kV (Contact), ±15kV (Air) per IEC 61000-4-2.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
