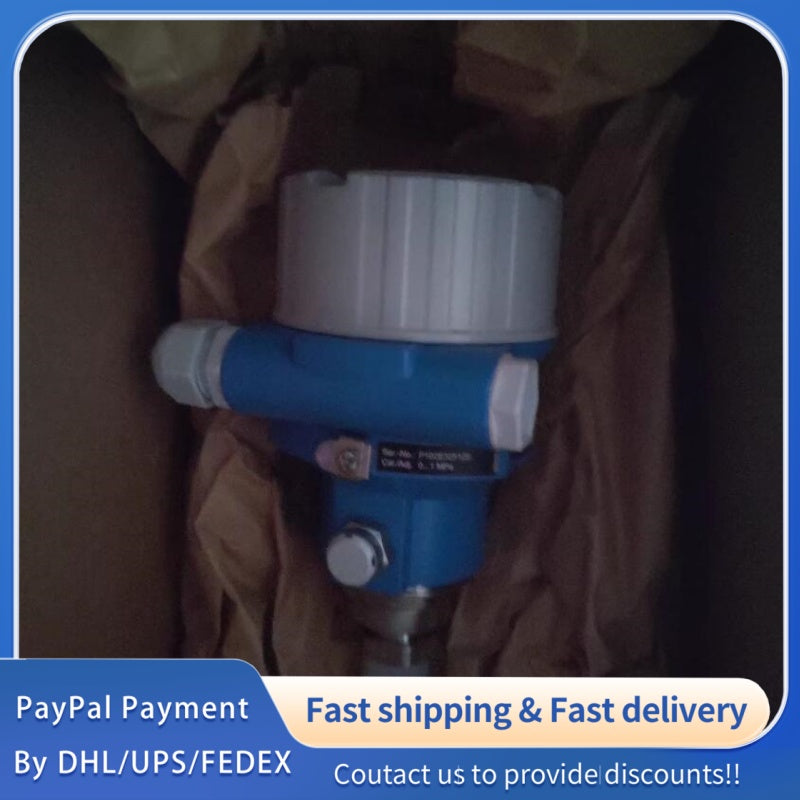

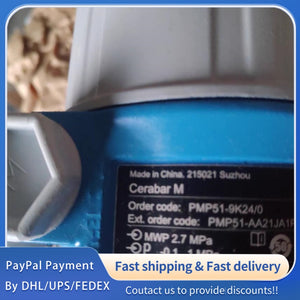

1 PCS new Endress+Hauser Cerabar M PMP51-9K24/0 Pressure Transmitter #LYQ007
1 PCS new Endress+Hauser Cerabar M PMP51-9K24/0 Pressure Transmitter #LYQ007
| Parameter | Value |
|---|---|
| Model | Cerabar M PMP51-9K24/0 |
| Measuring Principle | Absolute and gauge pressure, piezoresistive measuring cell with welded metal isolating diaphragm |
| Measuring Range | 400 mbar ... 400 bar (5.8 psi ... 6000 psi) relative/absolute |
| Reference Accuracy | Standard: ±0.1% of URL; Platinum: ±0.075% of URL |
| Long‑term Stability | < 0.1% URL/year; 0.2% URL/5 years; 0.25% URL/10 years |
| Max. Overpressure Limit | 600 bar (9000 psi) |
| Smallest Calibratable Span | 20 mbar (0.3 psi) |
| Vacuum Resistance | 10 mbar (0.15 psi) |
| Max. Turn Down | 20:1 |
| Process Temperature | -40 °C ... +130 °C (-40 °F ... +266 °F); +150 °C for max. 1 h |
| Ambient Temperature | -40 °C ... +85 °C (-40 °F ... +185 °F) |
| Supply Voltage | 4–20 mA HART: 11.5 ... 45 V DC; Ex ia: 11.5 ... 30 V DC; PROFIBUS PA/FF: 9 ... 32 V DC |
| Communication | 4–20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus, IO‑Link |
| Process Connection | Thread: G1/2 ... G2, MNPT1/2 ... MNPT2; Flange: DN25 ... DN80, ASME 1½" ... 4"; Hygienic: Tri‑Clamp, DIN11851, etc. |
| Process Diaphragm Material | 316L, Alloy C, Rhodium‑Gold |
| Housing Material | Die‑cast aluminum, AISI 316L |
| Fill Fluid | Silicone oil, inert oil |
| Safety Approval | SIL2 (IEC 61508, IEC 61511) |
| Explosion Protection | ATEX, FM, CSA, IEC Ex, etc. |
| Hygienic Approvals | 3A, EHEDG, ASME‑BPE |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
