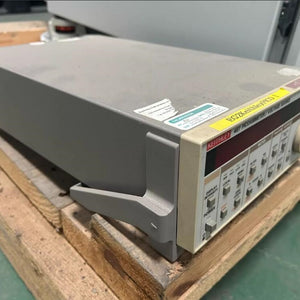

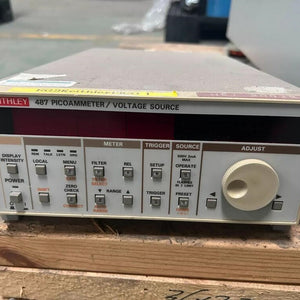

1 PCS used Keithley 487 Picoammeter/Voltage Source #LYQ007
1 PCS used Keithley 487 Picoammeter/Voltage Source #LYQ007
| Parameter | Specification |
|---|---|
| Current Measurement Ranges | 2 nA, 20 nA, 200 nA, 2 µA, 20 µA, 200 µA, 2 mA; Autorange available |
| Current Resolution | 10 fA (minimum) |
| Current Accuracy (1 Year, 18–28°C) | ±(0.1% + 200 fA) for 2 nA range; ±(0.1% + 2 nA) for 20 µA/200 µA/2 mA ranges |
| Voltage Source (Model 487) | Ranges: ±505.00 V (500 V range, 10 mV step), ±50.500 V (50 V range, 1 mV step) |
| Voltage Source Accuracy (1 Year, 18–28°C) | ±(0.15% + 40 mV) for 500 V range; ±(0.1% + 4 mV) for 50 V range |
| Voltage Source Noise (0.1–10 Hz) | <1.5 mV p-p (500 V range); <150 µV p-p (50 V range) |
| V/I Resistance Measurement Range | 500 mΩ to 5 × 10¹⁶ Ω |
| V/I Resistance Typical Accuracy | Better than 0.6% for 1 kΩ to 1 TΩ |
| Maximum Reading Rate | 180 readings/s (fast integration, 4½–5½ digit) |
| Input Overload Protection | 350 V peak (nA/2 µA ranges); 50 V peak (20 µA/200 µA/2 mA ranges); higher voltages require 3 mA current limit |
| IEEE-488 Interface | Full implementation (SH1, AH1, T5, L4, etc.) |
| Operating Temperature | 0°C to 50°C; storage: –25°C to 60°C |
| Power | 105–125 V AC or 210–250 V AC (switch selectable), 50/60 Hz, 45 VA max |
| Dimensions | 90 mm (H) × 213 mm (W) × 397 mm (D) |
| Weight | 4.25 kg (9.3 lb) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
