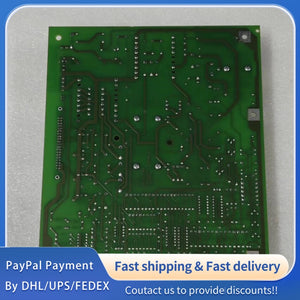

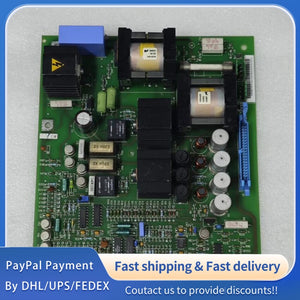

Part Number: SAFT112POW
Brand: ABB Industrial Automation
Product Category: Industrial Power Control Board (Integrated Power Distribution & Protection Module)
Product Series: ABB SAFT Series Power Control Modules (Compatible with ABB Industrial Control Systems & Drives)
Core Application: Specifically designed for ABB industrial control systems, mainly applied in power distribution, motor drive power management, industrial automation equipment power supply, and high-reliability power control scenarios. It integrates power conversion, distribution, and protection functions, providing stable power supply for ABB inverters, servo drives, and PLCs. Widely used in manufacturing, power generation, oil & gas, and marine engineering industries to ensure safe and efficient power management of industrial equipment.
Core Features: Supports multi-channel power output and distribution; integrated comprehensive power protection functions; compatible with ABB standard communication protocols for remote monitoring; rugged industrial-grade design with strong anti-interference performance; high power conversion efficiency and stable output; modular structure for easy installation and maintenance; real-time power status monitoring and fault feedback; compliant with ABB industrial power control system integration requirements.
2. Electrical Specifications
Input Voltage: 230V AC ±10% (single-phase) / 400V AC ±10% (three-phase), 50/60Hz (frequency adaptive)
Output Voltage: 24V DC (stable output), ±15V DC (auxiliary power), adjustable output voltage range: ±5% of rated value
Rated Output Current: 24V DC channel: 10A (continuous), 15A (peak); ±15V DC channel: 2A (continuous), 3A (peak); Total power consumption: ≤300W
Power Conversion Efficiency: ≥92% (at full load, 25°C ambient temperature); Ripple & Noise: ≤1% of rated output voltage (peak-to-peak)
Control & Communication: Digital input (TTL level) for power enable/disable control; Analog input (4-20mA) for current monitoring; Communication Interface: RS-485 (Modbus RTU), ABB proprietary communication protocol for power status upload
Regulation Accuracy: Output voltage regulation accuracy ±0.5% (full load range); Current monitoring accuracy ±1% Full Scale; Response time to load change: ≤50ms
Startup Delay: ≤2s (from power-on to stable output); Soft-start function: Yes, adjustable soft-start time 0.5-5s to avoid inrush current
Protection Functions: ESD protection (±8kV contact, ±15kV air) per IEC 61000-4-2; Overvoltage/undervoltage protection; Overcurrent protection (automatic current limiting); Short-circuit protection (foldback mode); Overheating protection (automatic shutdown at 85°C); Reverse polarity protection; Surge protection per IEC 61000-4-5
