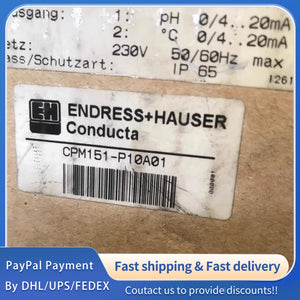

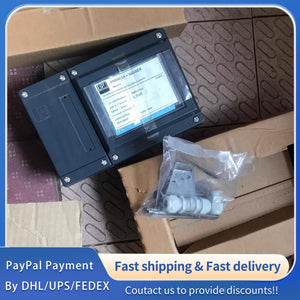

1 PCS new Endress+Hauser Mycom CPM151-P10A01 pH Transmitter #LYQ007
1 PCS new Endress+Hauser Mycom CPM151-P10A01 pH Transmitter #LYQ007
| Parameter | Specification |
|---|---|
| Model | Mycom CPM151-P10A01 |
| Measurement Type | pH / Temperature Transmitter / Controller |
| pH Measurement | |
| Display & Measuring Range | -2.00 ... 14.00 pH |
| Resolution | 0.01 pH |
| Accuracy | ±0.02 pH (±0.2% of span) |
| Input Impedance | Symmetrical high-impedance, 0.5 × 10¹² Ω |
| Temperature Compensation | Automatic (ATC) via Pt100, 3-wire |
| ATC Range | -15 ... +150 °C |
| Temperature Measurement | |
| Measuring Range | -15 ... +150 °C |
| Resolution | 0.1 °C |
| Sensor | Pt100, 3-wire |
| Output Signals | |
| Current Output (pH) | 0/4 ... 20 mA (configurable), galvanically isolated |
| Load Capacity | Max. 600 Ω |
| Output Span | Adjustable Δ2 ... Δ14 pH |
| Current Output (Temp, optional) | 0/4 ... 20 mA |
| Load Capacity | Max. 400 Ω |
| Output Span | Adjustable Δ25 ... Δ165 K |
| Relay Contacts | 3 changeover contacts |
| Switching Voltage | Max. 250 V AC |
| Switching Current | Max. 3 A |
| Switching Power | Max. 500 VA |
| Power Supply | |
| AC Supply | 24, 48, 100, 110, 127, 200, 230, 240 V, -15 ... +10%, 50/60 Hz |
| DC Supply | 24 V DC, -20 ... +15% |
| Power Consumption | 12 VA |
| General Data | |
| Display | 4-digit, 7-segment LCD, 10 mm height |
| Status Indication | Red / Red-Green LEDs |
| EMC | Emission: DIN EN 50081-1; Immunity: DIN EN 50082-1 |
| Ambient Temp (Nominal) | -10 ... +55 °C |
| Ambient Temp (Limit) | -20 ... +60 °C |
| Storage/Transport Temp | -25 ... +85 °C |
| Relative Humidity | 10 ... 90% (non-condensing) |
| Physical Data | |
| Dimensions (H×W×D) | 247 × 167 × 111 mm |
| Weight | 3.5 kg |
| Housing Material | Die-cast aluminum (GD-ALSi), polyester front |
| Ingress Protection | IP65 |
| Sensor Check System (SCS) | |
| pH Electrode Resistance | > 2 MΩ (fault threshold) |
| Reference Diaphragm Resistance | 5 ... 30 kΩ (fault threshold) |
| Mounting | Field mounting (wall/pole, max. 70 mm diameter) |
