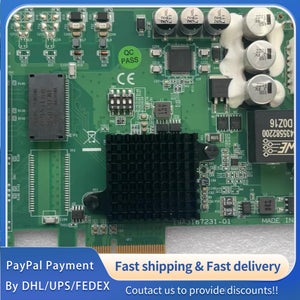

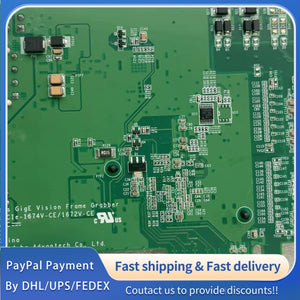

1 PCS new Advantech PCIE-1674V-CE / PCIE-1672V-CE board#LYQ007
1 PCS new Advantech PCIE-1674V-CE / PCIE-1672V-CE board#LYQ007
1 PCS new Advantech PCIE-1674V-CE / PCIE-1672V-CE board#LYQ007
Original Factory Precision Parameters (Models: Advantech PCIE-1674V-CE / PCIE-1672V-CE)
|
Parameter Category
|
Parameter Name
|
PCIE-1674V-CE Specification
|
PCIE-1672V-CE Specification
|
|
Basic Information
|
Product Model
|
PCIE-1674V-CE; Advantech Genuine Original PCIe Card, 100% unused and unrefurbished genuine parts
|
PCIE-1672V-CE; Advantech Genuine Original PCIe Card, 100% unused and unrefurbished genuine parts
|
|
Manufacturer Standard
|
Manufactured by Advantech; Compliant with ISO 9001, CE, RoHS, FCC, UL Standards; Conforms to Advantech Internal Technical Norms
|
Manufactured by Advantech; Compliant with ISO 9001, CE, RoHS, FCC, UL Standards; Conforms to Advantech Internal Technical Norms
|
|
|
Product Application
|
Industrial Data Acquisition, Industrial Automation, Equipment Monitoring, High-Precision Signal Acquisition Scenarios
|
Industrial Data Acquisition, Industrial Automation, Equipment Monitoring, High-Precision Signal Acquisition Scenarios
|
|
|
Core Performance & Interface Parameters
|
PCIe Interface
|
PCI Express x4 Gen 2, Compatible with PCIe x4/x8/x16 Slots, Plug-and-Play
|
PCI Express x4 Gen 2, Compatible with PCIe x4/x8/x16 Slots, Plug-and-Play
|
|
Analog Input Channels
|
16 Single-Ended / 8 Differential Channels, 16-Bit Resolution
|
8 Single-Ended / 4 Differential Channels, 16-Bit Resolution
|
|
|
Sampling Rate
|
Up to 250 kS/s (Single Channel), 100 kS/s (Multi-Channel), Continuous Sampling Supported
|
Up to 250 kS/s (Single Channel), 100 kS/s (Multi-Channel), Continuous Sampling Supported
|
|
|
Input Range
|
Configurable: ±10V, ±5V, ±2.5V, 0~10V, 0~5V; Bipolar/Unipolar Selectable
|
Configurable: ±10V, ±5V, ±2.5V, 0~10V, 0~5V; Bipolar/Unipolar Selectable
|
|
|
Input Impedance
|
≥10 GΩ (Voltage Input), Low Leakage Current, Ensuring Sampling Accuracy
|
≥10 GΩ (Voltage Input), Low Leakage Current, Ensuring Sampling Accuracy
|
|
|
Digital I/O Channels
|
16 Channels (8 Input / 8 Output), TTL Level, Configurable Input/Output Mode
|
16 Channels (8 Input / 8 Output), TTL Level, Configurable Input/Output Mode
|
|
|
Precision & Timing Parameters
|
Integral Nonlinearity (INL)
|
±0.01% FSR (Full Scale Range), High Sampling Precision
|
±0.01% FSR (Full Scale Range), High Sampling Precision
|
|
Differential Nonlinearity (DNL)
|
±0.005% FSR, No Missing Codes, Ensuring Data Integrity
|
±0.005% FSR, No Missing Codes, Ensuring Data Integrity
|
|
|
Signal-to-Noise Ratio (SNR)
|
≥85 dB @ 1 kS/s, Low Noise, Clear Signal Acquisition
|
≥85 dB @ 1 kS/s, Low Noise, Clear Signal Acquisition
|
|
|
Trigger Mode
|
Software Trigger, Hardware Trigger, External Trigger, Edge Trigger (Rising/Falling)
|
Software Trigger, Hardware Trigger, External Trigger, Edge Trigger (Rising/Falling)
|
|
|
Timer/Counter
|
2 Channels, 32-Bit, Configurable for Timing, Counting and Pulse Generation
|
2 Channels, 32-Bit, Configurable for Timing, Counting and Pulse Generation
|
|
|
Electrical & Protection Parameters
|
Input Voltage Protection
|
Overvoltage Protection: ±15V (Max); Anti-Surge Protection, Protecting Internal Circuits
|
Overvoltage Protection: ±15V (Max); Anti-Surge Protection, Protecting Internal Circuits
|
|
Power Supply
|
Powered by PCIe Slot, DC 12V ±10%, Typical Power Consumption: ≤8W
|
Powered by PCIe Slot, DC 12V ±10%, Typical Power Consumption: ≤8W
|
|
|
Anti-Interference Performance
|
Built-in EMI Filter, Complies with EN 55022 Class A, Resisting Industrial Electromagnetic Interference
|
Built-in EMI Filter, Complies with EN 55022 Class A, Resisting Industrial Electromagnetic Interference
|
|
|
ESD Protection
|
±8kV (Contact), ±15kV (Air), Effectively
|
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
