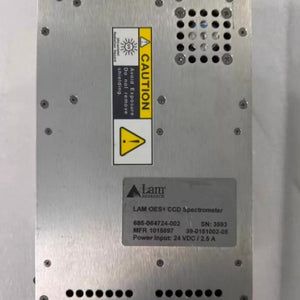

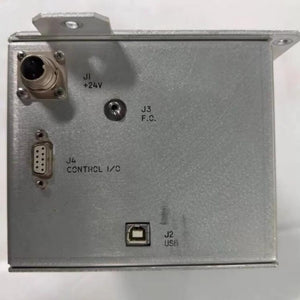

1 PCS used LAM OES+ CCD Spectrometer (P/N: 685-064724-002) #LYQ007
1 PCS used LAM OES+ CCD Spectrometer (P/N: 685-064724-002) #LYQ007
| Parameter Category | Specifications |
|---|---|
| Optical System | Paschen-Runge optical design, Rowland circle structure |
| Focal Length | 400 mm |
| Wavelength Coverage | 130 nm – 800 nm (UV to NIR) |
| Grating | 3600 lines/mm high-resolution grating |
| Linear Dispersion (1st order) | 1.2 nm/mm |
| Entrance Slit | Fixed width, 10 μm, anti-reflective coating |
| Detector | Multi-element linear CCD array |
| Pixel Resolution | 30 pm (0.03 nm) |
| Pixel Size | 14 μm × 14 μm |
| Optical Chamber | Vacuum-sealed, thermostatically controlled |
| Operating Temperature | 34°C ± 0.5°C |
| Vacuum Level | Auto-regulated between 6 Pa and 20 Pa |
| Excitation Source | Digital plasma spark source (HEPS - High Energy Pre-ignition System) |
| Spark Frequency | 100 Hz – 1000 Hz (adjustable) |
| Spark Current | 1 A – 80 A (adjustable) |
| Ignition Voltage | > 15,000 V |
| Environmental Requirements | |
| Operating Temp. | 10°C – 35°C (optimal: 23°C ± 2°C) |
| Storage Temp. | 0°C – 45°C |
| Relative Humidity | ≤ 70% (non-condensing) |
| Electrical Requirements | |
| Power Supply | AC 220 V, 50 Hz |
| Power Consumption | 700 W (excitation), 100 W (standby) |
| Gas Requirements | |
| Argon Purity | 99.999% (minimum) |
| Argon Pressure | > 4 MPa (40 bar) |
| Argon Consumption | Approx. 5 L/min (spark mode) |
| Physical Characteristics | |
| Dimensions (W×D×H) | 800 mm × 700 mm × 470 mm |
| Weight | Approx. 100 kg |
