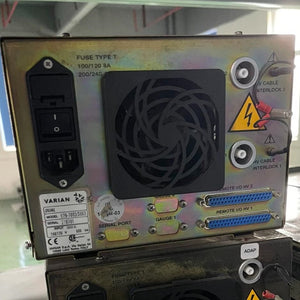

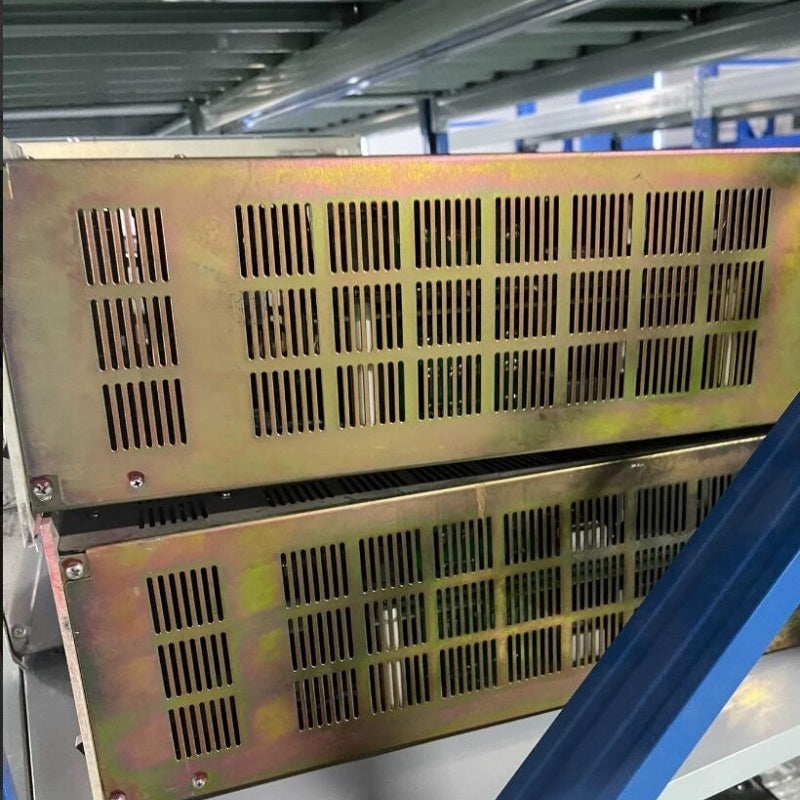

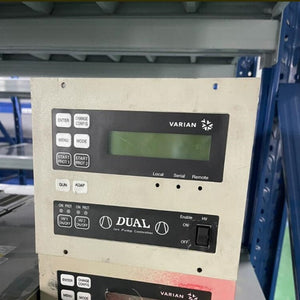

1 PCS used VARIAN 929-7003/S003 Dual Ion Pump Controller #LYQ007
Parameter
Value
Model Number
929-7003/S003
Input Voltage
100-120 Vac, 50/60 Hz
Power Consumption
600 VA max
Output Channels
Dual (2 independent HV outputs)
Polarity
Positive
Weight
8.35 kg
Dimensions
Standard rack mount (19")
Parameter
Specification
HV Output Voltage
±7,000 Vdc (max)
Voltage Range
3,000 V to 7,000 V (programmable)
Voltage Step
100 V increments
Current Measurement
10 nA resolution (down to 10⁻¹⁰ mbar)
Max Output Current
Depends on pump model (see compatibility)
Feature
Details
Control Modes
Local, Remote I/O, Serial (RS-232)
Display
LCD with pressure, voltage, current readout
Pressure Range
10⁻³ to 10⁻¹¹ Torr (with compatible pumps)
Set Points
2 programmable threshold relays
Relay Outputs
0.5A at 250VAC, 0.2A at 150VDC
Communication
RS-232 (9-pin D-sub), 1200-9600 baud
