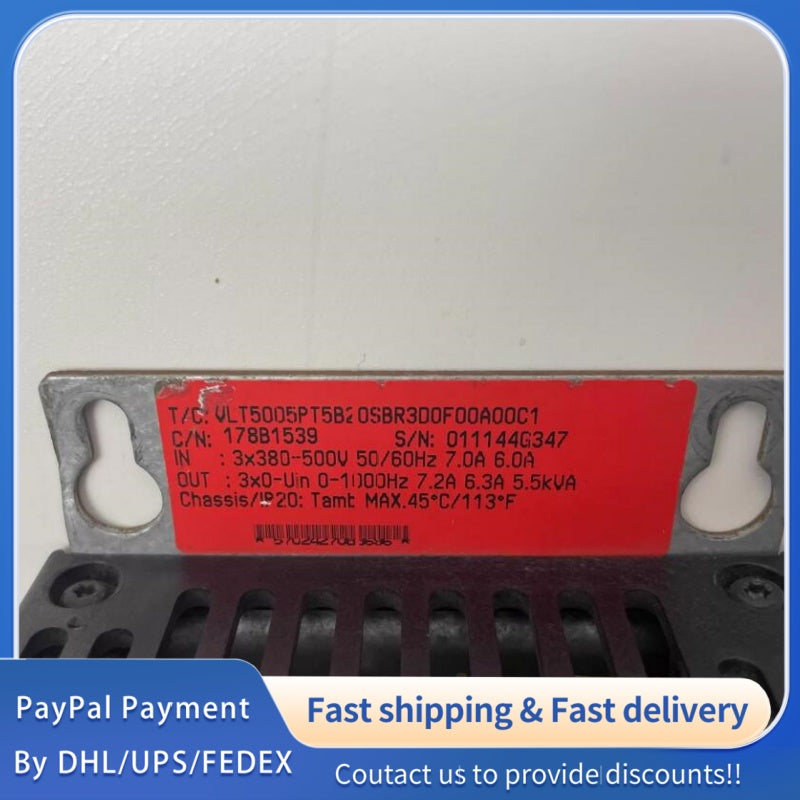

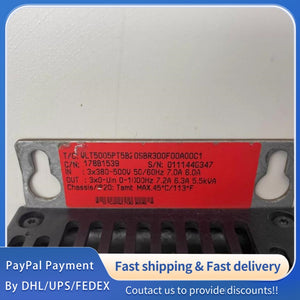

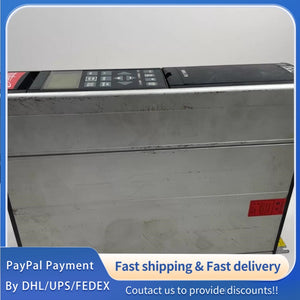

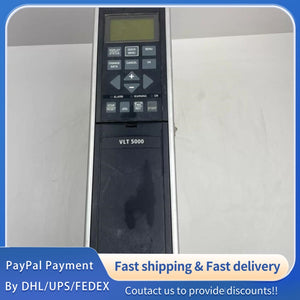

1 PCS used Danfoss VLT5005P5B20SBR3D0F00A00C1 #LYQ007
1 PCS used Danfoss VLT5005P5B20SBR3D0F00A00C1 #LYQ007
| Parameter | Value |
|---|---|
| Model | VLT5005P5B20SBR3D0F00A00C1 |
| Product Series | VLT 5000 Series Frequency Converter |
| Power Rating | 3.0 kW (4.0 HP) |
| Input Voltage | 3×380–500 V AC, 50/60 Hz |
| Input Current (Rated) | 11.5 A |
| Output Voltage | 0 to Input Voltage (3-phase) |
| Output Current (Rated) | 12.5 A |
| Output Frequency Range | 0–1000 Hz |
| Overload Capacity | 110% for 60 s; 160% for 1 s (Process) |
| Starting Torque | Up to 160% at 0 Hz (closed loop) |
| Efficiency | ≥95% at rated load |
| Power Factor | >0.98 (near unity) |
| Enclosure | Bookstyle, IP20 |
| RFI Filter | Integrated Class 1A & 1B |
| Control Interface | Without Local Control Panel (LCP) |
| Fieldbus | None (F00) |
| Brake Chopper | Not included (SB hardware variant) |
| Weight (IP20) | 7 kg |
| Dimensions (W×H×D) | 130×268×205 mm |
| Cooling | Forced air |
| Ambient Temperature | 0–45 °C (derate above 40 °C) |
| Protection | Overvoltage, undervoltage, overcurrent, overtemperature |
