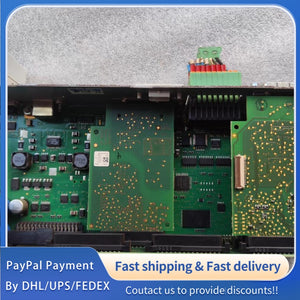

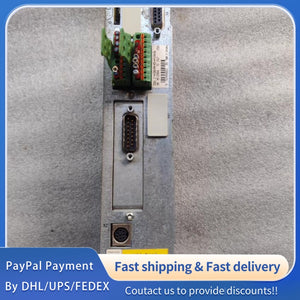

1 PCS used Rexroth Drive Control Card CSH01.1C‑NN‑ENS‑NNN‑MEM‑NN‑S‑NN‑FW #LYQ007
1 PCS used Rexroth Drive Control Card CSH01.1C‑NN‑ENS‑NNN‑MEM‑NN‑S‑NN‑FW #LYQ007
Model: CSH01.1C‑NN‑ENS‑NNN‑MEM‑NN‑S‑NN‑FW
Order No.: R911309548
Document: Standalone, grid‑formatted (no vertical lines)
| Parameter | Specification |
|---|---|
| Product Family | IndraDrive C, Advanced Control Section (CSH01.1C) |
| Order Number | R911309548 |
| Full Model | CSH01.1C‑NN‑ENS‑NNN‑MEM‑NN‑S‑NN‑FW |
| Axis Configuration | Single‑axis advanced control card |
| Application | Machine tools, packaging, printing, material handling, automation |
| Parameter | Specification |
|---|---|
| Control Cycles | Current: 62.5–125 μs; Speed: 250–500 μs; Position: 500–1000 μs |
| Communication | ENS (EtherNet/IP) master interface |
| Memory | MEM: Integrated memory module for configuration & firmware |
| Safety | S: Basic safety functions (no advanced S1/S2) |
| Firmware | FW: Pre‑loaded standard firmware |
| Digital I/O | 7–11 programmable digital inputs; 4 digital outputs; 1 relay contact |
| Analog I/O | 1 analog input; 2 analog outputs (0–10 V / 0/4–20 mA) |
| Encoder Interfaces | X4 slot: IndraDyn / Hiperface / 1 Vpp / TTL; X8 slot: EnDat 2.1 / 1 Vpp / TTL |
| Parameter | Specification |
|---|---|
| Control Supply Voltage | DC 24 V (19–30 V range) |
| Power Consumption | Base unit: 8–16 W; optional modules: 1–6 W each |
| Isolation | 500 V DC reinforced isolation between logic and power circuits |
| EMC Compliance | EN 61800‑3, EN 61000‑6‑2 / ‑6‑4 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
