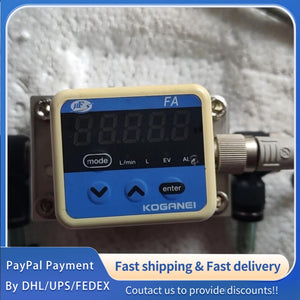

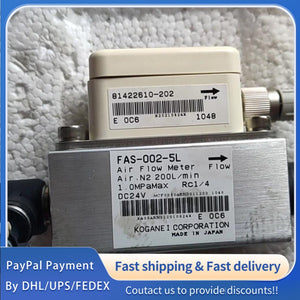

1 PCS used KOGANEI FAS-002-5L Digital Display Flow Meter#LYQ007
1 PCS used KOGANEI FAS-002-5L Digital Display Flow Meter#LYQ007
1 PCS used KOGANEI FAS-002-5L Digital Display Flow Meter#LYQ007
Original Factory Precision Parameters (Model: KOGANEI FAS-002-5L Digital Display Flow Meter)
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
FAS-002-5L; KOGANEI Genuine Original Industrial-Grade Digital Display Flow Meter, 100% unused and unrefurbished genuine parts, consistent with KOGANEI's official model coding standards. It belongs to differential pressure type digital display flow meter, designed for dedicated matching with various industrial fluid control systems, with fixed configuration and excellent industrial environmental compatibility, focusing on high precision, real-time display and strong anti-interference.
|
|
Manufacturer Standard
|
Manufactured by KOGANEI Corporation (Genuine Original Factory, Japan); Compliant with ISO 9001 Quality Certification, CE, RoHS, IEC 61010-1 (Safety Requirements for Electrical Equipment), IEC 61326-1 (Electromagnetic Compatibility Requirements) Industrial Standards; Conforms to KOGANEI Internal Technical Standard and Digital Display Flow Meter Manufacturing Norms, as well as EMC Standards EN 55011 (Emission) and EN 55022 (Immunity), meeting the precision calibration requirements of international industrial flow measurement standards.
|
|
|
Product Series
|
KOGANEI FAS Series Industrial-Grade Digital Display Flow Meter; Differential Pressure Sensing Technology; Designed for high-stability flow measurement and control in industrial automation and fluid transmission scenarios, with fixed measurement range, accuracy and interface specification, dedicated to matching specific industrial fluid control equipment and systems.
|
|
|
Core Measurement & Sensing Parameters
|
Sensing Technology
|
Differential Pressure Type Sensing Technology; High-Precision Metal Sensing Element (Imported from Japan); Built-in Temperature Compensation Module; High sensitivity, low measurement error and excellent stability, ensuring accurate flow measurement even in low-flow industrial environments; Effectively reducing measurement deviation caused by temperature changes and medium viscosity fluctuations.
|
|
Measured Medium
|
Compatible Medium: Compressed Air, Nitrogen, Argon, Helium (Gaseous); Deionized Water, Industrial Pure Water (Liquid); Medium Temperature Range: 0℃ ~ 60℃; Medium Pressure Range: 0.1 MPa ~ 1.0 MPa; Compatible with common industrial gases and clean liquids, avoiding corrosion to internal components and ensuring long-term stable operation.
|
|
|
Measurement Range
|
Gaseous Flow Range: 0.1 L/min ~ 5 L/min (Standard Condition: 20℃, 101.325 kPa); Liquid Flow Range: 0.05 L/min ~ 5 L/min; Measurement Range Adjustment: Stepless Adjustable (Within Rated Range); Wide measurement range, adapting to different flow detection requirements of industrial scenarios.
|
|
|
Measurement Accuracy
|
Gaseous Measurement Accuracy: ±1.0% FS (Full Scale); Liquid Measurement Accuracy: ±0.8% FS; Repeatability: ≤0.3% FS; High measurement precision ensures accurate flow data collection, meeting the requirements of industrial precision flow control and measurement.
|
|
|
Digital Display Parameters
|
Display Type: 4-Digit LED Digital Display; Display Resolution: 0.01 L/min; Display Refresh Rate: 1 Time/Second; Display Unit: L/min (Switchable to m³/h, mL/min); Backlight: White LED (Adjustable Brightness, Optional On/Off); Clear and intuitive digital display, convenient for on-site observation and data reading.
|
|
|
Flow Alarm Function
|
Alarm Type: High Flow Alarm, Low Flow Alarm (Dual Alarm); Alarm Threshold: Stepless Adjustable (Within Measurement Range); Alarm Output: NPN Open Collector (24V DC, 100mA Max); Alarm Indication: LED Red Light Flashing (Synchronized with Output Signal); Timely alarm for abnormal flow, ensuring safe operation of the fluid control system.
|
|
|
Calibration Function
|
Calibration Mode: Manual Calibration (Factory Calibrated, On-Site Re-Calibration Supported); Calibration Accuracy: ±0.1% FS; Calibration Memory: Power-Off Memory (Saves Calibration Parameters Permanently); Convenient for on-site maintenance and parameter adjustment, ensuring long-term measurement accuracy.
|
|
|
Response Time
|
Flow Response Time: ≤100 ms (From Flow Change to Display Update); Alarm Response Time: ≤200 ms; Fast response speed, adapting to dynamic flow detection scenarios and ensuring real-time monitoring of flow changes.
|
|
|
Electrical & Interface Parameters
|
Supply Voltage
|
Rated Value: 24 V DC; Input Voltage Range: 18 ~ 30 V DC; Power Consumption: Typical 2.0 W, Maximum 3.0 W; Built-in voltage stabilization and reverse polarity protection modules, ensuring stable operation under voltage fluctuation (±10% of rated voltage); Low power consumption, suitable for long-term continuous operation.
|
|
Data Output Interface
|
Interface Type: NPN Open Collector (Flow Data, Alarm Signal); Optional RS485 Communication Interface (Modbus RTU Protocol); Transmission Distance: Up to 50 m (Without Amplifier); Fast and stable data transmission, supporting remote monitoring and control of flow data.
|
|
|
Control Interface
|
Control Interface: 2-Channel Input (Alarm Threshold Adjustment, Calibration Trigger); Control Signal: DC 5V ~ 24V; Supports on-site manual control and remote control of flow parameters (alarm threshold, calibration, etc.), easy to integrate into industrial automation control loops.
|
|
|
Insulation Resistance
|
Between Signal Terminal and Housing: ≥1000 MΩ (500 V DC); High insulation performance, effectively preventing electrical interference and leakage, ensuring safe and stable operation of the flow meter and connected equipment.
|
|
|
Protection & Anti-Interference Parameters
|
Comprehensive Protection Functions
|
Electrical Protection: Reverse Polarity Protection (≥30 V DC), Overvoltage Protection (≤18 V DC, ≥30 V DC), Short-Circuit Protection; Device Protection: Overheating Protection, Medium Corrosion Protection, Dust and Water Protection; Automatic protection when fault occurs, effectively extending the service life of the flow meter.
|
|
Anti-ESD Performance
|
Anti-Electrostatic Discharge (ESD): ±25 kV (Air), ±15 kV (Contact); Complying with IEC 61000-4-2 standard; Effectively resisting static interference in industrial installation and operation processes; Preventing static damage to the flow meter's internal electronic components and sensing element.
|
|
|
EMC Compliance
|
Emission: EN 55011 Class B; Immunity: EN 55022 Class B; Anti-Electromagnetic Interference (EMI): ≥2000 V AC (Isolation); Effectively resisting industrial electromagnetic interference from frequency converters, motors and other equipment, ensuring stable flow measurement and data output in complex electromagnetic environments.
|
|
|
Protection Grade
|
Overall Protection Grade: IP65; Dust-tight and water-resistant (Protected against water jets from any direction), effectively preventing dust, water splashing and oil pollution from entering the flow meter, adapting to harsh industrial production environments such as workshops and production lines.
|
|
|
Environmental & Physical Parameters
|
Operating Environment
|
Operating Temperature: -10℃ ~ +60℃ (Ambient Temperature); Storage Temperature: -40℃ ~ +85℃; Operating Humidity: 10% ~ 90% RH (Non-Condensing); Storage Humidity: < 80% RH (Non-Condensing); Cooling Method: Natural Cooling; Adaptable to common industrial environmental temperature and humidity ranges, ensuring stable operation in different regions and workshops.
|
|
Physical Dimensions
|
Overall Dimensions: 80 mm (Length) × 60 mm (Width) × 40 mm (Height) (±0.5 mm); Weight: ≤300 g (Without Accessories); Housing Material: High-Strength Aluminum Alloy (Anodized Surface); Installation Method: Threaded Mounting (2 Standard Mounting Holes), compact structure, easy to install and maintain in narrow spaces.
|
|
|
Durability & Service Life
|
Vibration Resistance: 5 g (10 Hz ~ 500 Hz); Shock Resistance: 30 g (11 ms); Service Life: ≥50,000 Hours (Continuous Operation); Low failure rate, long-term stable operation under harsh industrial environments; Surface anti-corrosion and anti-oxidation treatment, adapting to high-humidity and corrosive industrial environments.
|
