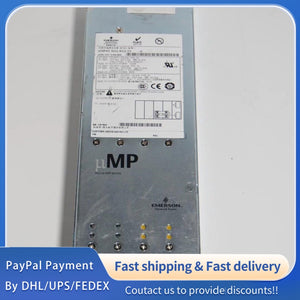

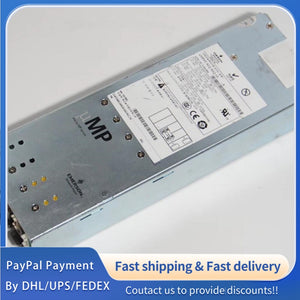

1 PCS used ARTESYN Power Module uMP4T-S2Q-S2Q-10 #LYQ007
1 PCS used ARTESYN Power Module uMP4T-S2Q-S2Q-10 #LYQ007
1 PCS used ARTESYN Power Module uMP4T-S2Q-S2Q-10 #LYQ007
Original Factory Precision Parameters (Model: ARTESYN Power Module uMP4T-S2Q-S2Q-10)
|
Parameter Category
|
Parameter Name
|
uMP4T-S2Q-S2Q-10 Specification
|
|
Basic Information
|
Product Model
|
uMP4T-S2Q-S2Q-10; ARTESYN Genuine Original Power Module, 100% unused and unrefurbished genuine parts; AC-DC switching power supply, dual output, 40W rated total power
|
|
Manufacturer Standard
|
Manufactured by ARTESYN (Artesyn Embedded Technologies); Compliant with CE, UL, IEC 60950-1, EN 55022, EN 55024, RoHS Standards; Conforms to ARTESYN Internal Technical and Quality Norms
|
|
|
Product Application
|
Industrial Automation Equipment, Precision Instruments, Communication Equipment, Medical Equipment (Non-life-support), Test and Measurement Equipment, Electronic Control Systems, Industrial Control Panels, Small Industrial Equipment, Embedded Systems, Portable Electronic Devices, etc.
|
|
|
Core Input Parameters
|
Input Voltage Range
|
Universal AC Input: 85~264 VAC; DC Input Optional: 120~370 VDC; Automatic voltage adaptation, no manual adjustment required, adapt to global grid voltage
|
|
Input Frequency Range
|
47~63 Hz (AC Input); Frequency Tolerance: ±5%; Compatible with most industrial power grids, stable operation under frequency fluctuation
|
|
|
Rated Input Current
|
115 VAC: 0.8 A (Max); 230 VAC: 0.4 A (Max); Rated working current, ±1% precision, ensure stable power input
|
|
|
Input Power Factor
|
≥0.90 (Full Load, 115/230 VAC, 50/60 Hz); High power factor, reduce grid pollution, meet international energy efficiency standards
|
|
|
Input Surge Current
|
Cold Start: ≤15 A (Peak, 230 VAC); Built-in surge current suppression circuit, avoid impact on grid and equipment
|
|
|
Input Protection
|
Fuse Protection (Replaceable), Inrush Current Limiting, ESD Protection; Effectively protect the module from input over-voltage, over-current damage
|
|
|
Leakage Current
|
≤0.3 mA (230 VAC, 50 Hz); Meet international safety standards, ensure personal and equipment safety
|
|
|
Input Efficiency
|
≥89% (Full Load, 230 VAC, 50 Hz); High input efficiency, reduce energy consumption, low heat generation
|
|
|
Core Output Parameters
|
Output Type
|
Dual DC Output (2 Channels, S2Q Specification); Fixed Output Voltage, Each Channel Adjustable within ±10% of rated output voltage, flexible adaptation to load demand
|
|
Rated Total Output Power
|
40 W; Each output channel rated power 20 W, total power no more than 40 W, balanced load distribution
|
|
|
Output Voltage (Each Channel)
|
5 VDC (S2Q Standard); Factory calibrated, output voltage precision: ±0.5% (Full Load, 25℃); Stable output, no voltage fluctuation
|
|
|
Rated Output Current (Each Channel)
|
4.0 A; Continuous output current per channel, compatible with 20W per channel load, support long-term continuous operation
|
|
|
Output Ripple & Noise
|
≤30 mVp-p (20 MHz Bandwidth); Low ripple and noise, avoid interference to precision load equipment, ensure stable operation of electronic components
|
|
|
Output Voltage Adjustment
|
±10% of Rated Output Voltage (4.5~5.5 VDC per channel); Adjustable via built-in potentiometer, convenient for on-site debugging and load matching
|
|
|
Load Regulation
|
±0.3% (Full Load to No Load, 25℃ per channel); High load regulation precision, ensure stable output voltage regardless of load change
|
|
|
Line Regulation
|
±0.1% (Input Voltage 85~264 VAC, Full Load per channel); High line regulation precision, avoid output voltage change caused by input voltage fluctuation
|
|
|
Cross Regulation
|
±0.5% (One Channel Full Load, Others No Load); High cross regulation, ensure stable output of each channel when load changes
|
|
|
Overload Capacity
|
110% Rated Power per channel, 10 minutes; 150% Rated Power per channel, 1 minute; Automatic protection after overload, adapt to load peak demand
|
|
|
Protection & Safety Parameters
|
Over-temperature Protection
|
Module internal temperature ≥95℃: Alarm; ≥100℃: Cut off output and power supply; Built-in temperature sensor, real-time monitoring, automatic recovery after cooling
|
|
Over-voltage Protection
|
Output Voltage ≥5.5 VDC per channel: Alarm and cut off output; Avoid load equipment damage caused by output over-voltage, adjustable protection threshold
|
|
|
Over-current Protection
|
Output Current ≥4.8 A per channel: Alarm and cut off output; Protect module and load equipment from over-current damage, constant current limiting protection
|
|
|
Short-circuit Protection
|
Any output short-circuit: Instantaneous cut off power supply and alarm; Current limiting protection, prevent module burnout, automatic recovery after short-circuit elimination
|
|
|
ESD Protection
|
±15 kV (Contact), ±25 kV (Air); Effectively protect the module from static damage, ensure stable operation in electronic manufacturing environments
|
|
|
Over-power Protection
|
Total Output Power ≥44 W (110% Rated Power): Alarm and cut off output; Avoid module damage caused by long-term overload, protect internal components
|
|
|
Reverse Polarity Protection
|
DC Input Reverse Polarity: Cut off input power supply; Prevent module damage caused by wrong wiring, protect internal circuit
|
|
|
Other Protections
|
Under-voltage Protection (Input ≤80 VAC), Over-frequency Protection, Noise Suppression Protection; Comprehensive protection, safe and reliable, reduce equipment failure rate
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-40℃ ~ 70℃; Derating 2% per °C when exceeding 50℃; Adapt to various harsh industrial working environments, high and low temperature resistant
|
|
Storage Temperature
|
-55℃ ~ 85℃; Stable storage performance, no performance degradation after long-term storage in warehouse or transportation
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resisting humid industrial environments, no short circuit or malfunction risk, suitable for high humidity workshops
|
|
|
Structure Material
|
Industrial-Grade FR-4 Circuit Board + Aluminum Alloy Shell; Anti-corrosion, anti-oxidation, high mechanical strength; Protective coating treatment, dust-proof design (IP21), suitable for cabinet installation
|
|
|
Cooling Mode
|
Natural Convection + Forced Air Cooling (Optional); Efficient heat dissipation, ensure long-term stable operation; Low noise, suitable for quiet operation scenarios
|
|
|
Interface & Compatibility Parameters
|
Input Interface
|
Screw Terminal Interface (AC Input); Rated Current: 3 A; Easy to wire, firm connection, anti-loosening design, suitable for industrial wiring scenarios
|
|
Output Interface
|
Screw Terminal Interface (DC Output, 2 Channels); Rated Current: 5 A per channel; Support large current output, anti-oxidation contact, ensure stable power transmission
|
|
|
Control Interface
|
Remote On/Off Interface (TTL Level), Voltage Adjustment Interface; Support remote control and parameter adjustment, easy for system integration
|
|
|
Equipment Compatibility
|
Suitable for various 5 VDC, 40W total power industrial load equipment; Compatible with ARTESYN control systems and other mainstream industrial automation control systems; Strong compatibility, wide application range
|
|
|
Functional Parameters
|
Start-up Time
|
≤400 ms (Full Load, 230 VAC); Fast start-up, quickly provide stable power supply for load equipment, reduce waiting time
|
|
Hold-up Time
|
≥20 ms (Full Load, 230 VAC); Ensure stable output during short-term input power failure, avoid load equipment shutdown
|
|
|
Remote Control Function
|
Support Remote On/Off (TTL Level: High Level On, Low Level Off); Convenient for centralized control of multiple power modules, improve system management efficiency
|
|
|
Special Functions
|
Voltage Adjustment, Current Limiting, Overload Alarm, Temperature Alarm, Remote Monitoring, Output Channel Independent Control; Multiple practical functions, adapt to diverse industrial application scenarios, improve system reliability
|
