1 PCS used Advantech Industrial Panel PC PPC-6121-R8IA #LYQ007
1 PCS used Advantech Industrial Panel PC PPC-6121-R8IA #LYQ007
1 PCS used Advantech Industrial Panel PC PPC-6121-R8IA #LYQ007
Product Overview: Advantech Industrial Panel PC, model PPC-6121-R8IA, is a high-performance original factory industrial panel PC independently developed and manufactured by Advantech Co., Ltd. It is a 100% genuine new product, strictly complying with Advantech global quality control standards and international industrial control equipment specifications. The product has passed strict factory calibration, performance testing, environmental adaptability verification and long-term stability detection, without any manual modification or secondary processing. It belongs to the PPC-6121 series industrial panel PC, featuring a compact structure, stable operation, high computing performance, excellent display effect and strong expandability. It is dedicated to high-reliability industrial control scenarios in fields such as industrial automation, intelligent manufacturing, logistics warehousing, medical equipment and automotive manufacturing, perfectly matching Advantech industrial control systems and other mainstream automation equipment to ensure the stability and efficiency of the whole control system[2][3][4].
Original Factory Precision Parameters
|
Parameter Name
|
Original Factory Specification
|
Parameter Name
|
Original Factory Specification
|
|
Model
|
Advantech PPC-6121-R8IA
|
Series
|
PPC-6121 Series Industrial Panel PC
|
|
Product Type
|
Industrial Panel PC
|
Processor
|
8th/9th Generation Intel® Core™ i/Celeron® Processor (TDP: 35W)
|
|
Processor Options
|
i7-8700T/i5-8500T/i3-8100T/Pentium G5400T/Celeron G4900T/i7-9700TE/i5-9500TE/i3-9100TE
|
Chipset
|
Intel Q370
|
|
Memory
|
2 x 260-pin SO-DIMM DDR4 2666 MHz, Max. 32 GB
|
Storage
|
1 x 2.5" SATA Bay; 1 x mSATA Bay (SATA SSD + mSATA support RAID 0 & 1)
|
|

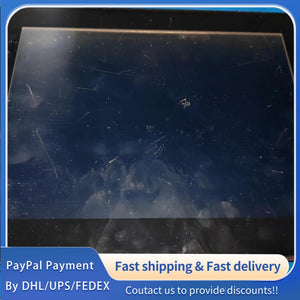

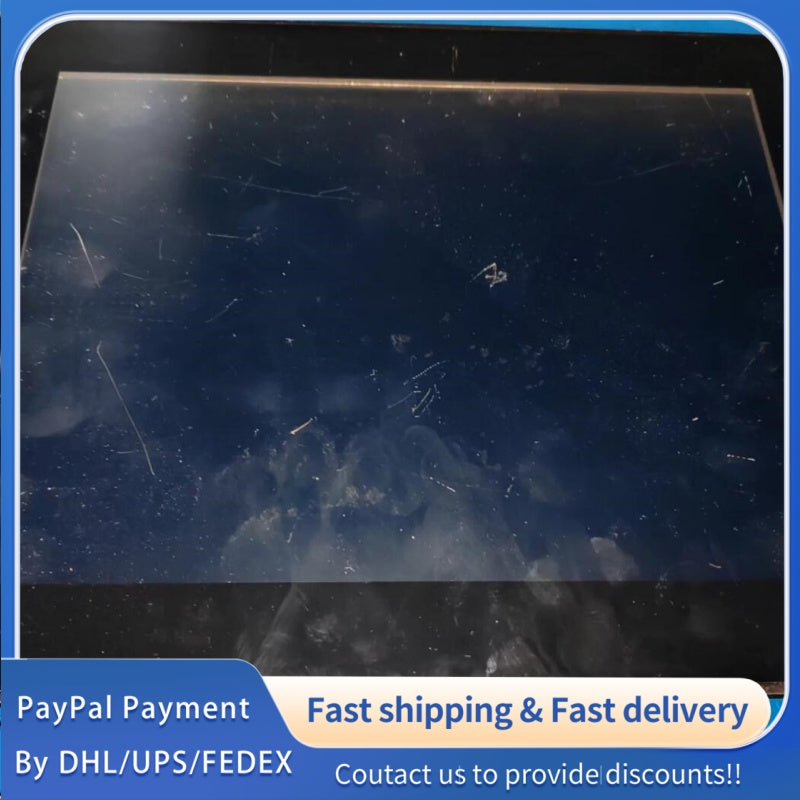

Display Size
|
12.1" TFT XGA LCD Panel
|
Max Resolution
|
1024 x 768 Pixels
|
|
Touch Screen
|
5-Wire Resistive Touch, USB Interface
|
Luminance
|
600 cd/m²
|
|
Viewing Angle
|
89° (Left), 89° (Right), 89° (Up), 89° (Down)
|
Contrast Ratio
|
1000:1
|
|
Backlight Lifetime
|
Min. 50,000 Hours
|
Touch Durability
|
Greater than 35 Million Touches
|
|
Power Supply Voltage
|
DC 12 V ~ 30 V
|
Power Consumption
|
120W (Burn-in Test, Windows 10 64-bit, i7-8700T, 16GB RAM, 500GB HDD)
|
|
Network Interface
|
2 x 10/100/1000 Mbps Ethernet (Intel I219-LM + Intel I211), supports Intel AMT 12.0 (Only i7/i5 support)
|

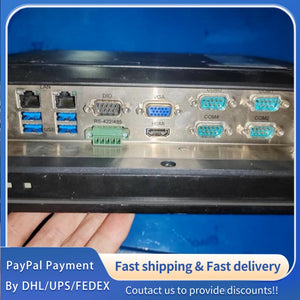

I/O Ports
|
4 x RS-232, 1 x Isolated RS422/485 (1kVdc), 4 x USB 3.1, 1 x VGA, 1 x HDMI 1.4, 1 x MIC IN, 1 x LINE OUT, 1 x 8-Pin Programmable GPIO (TTL)
|
|
Expansion Interface
|
1 x M.2 2230 (E Key), 1 x Optional PCI/PCIe x4 Expansion Kit
|
Optional Functions
|
TPM 2.0
|
|
Operating Temperature Range
|
0℃ ~ +50℃ (Typical)
|
Storage Temperature Range
|
-20℃ ~ +60℃
|
|
Dimensions (L×W×H)
|
317 mm × 246 mm × 73 mm (Approx.)
|
Weight
|
Approx. 3.8 kg (8.38 lb)
|
|
OS Support
|
Microsoft® Windows 10 64-bit, Linux (Ubuntu, Fedora 28)
|
Quality Standard
|
Advantech Global Quality Control Standards
|
|
Product Status
|
100% Original Genuine, Factory Calibrated
|
Warranty
|
1-Year Warranty (Typical)
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
