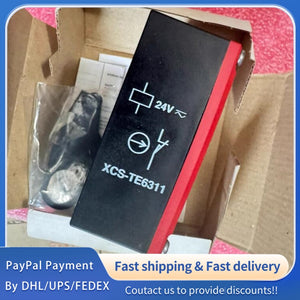

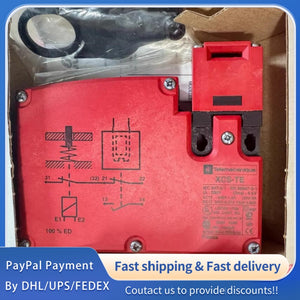

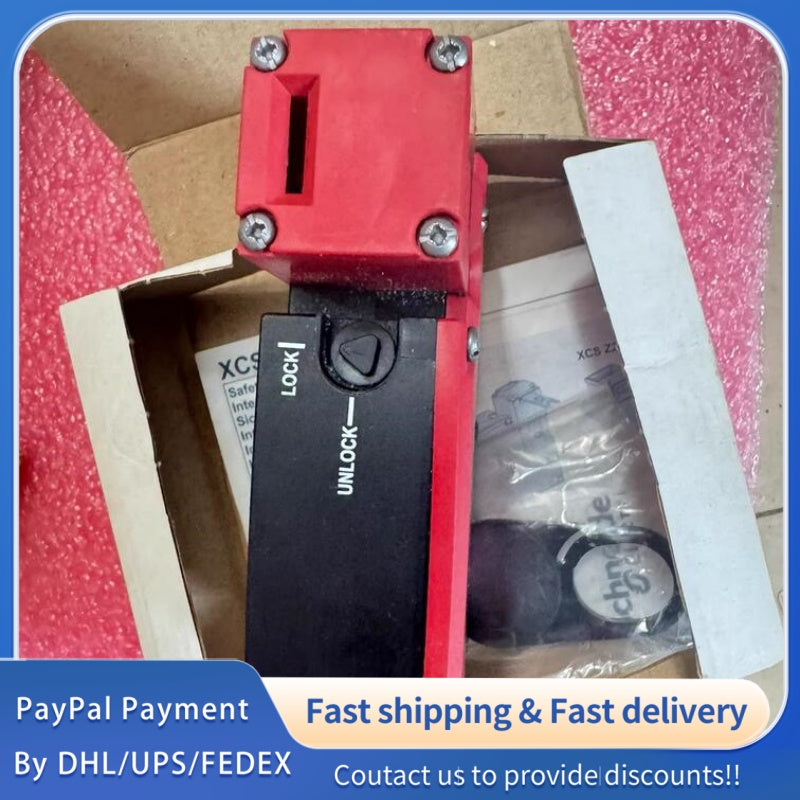

1 PCS new Schneider Telemecanique XCSTE6311 Safety Interlock Switch #LYQ007
1 PCS new Schneider Telemecanique XCSTE6311 Safety Interlock Switch #LYQ007
| Parameter | Value |
|---|---|
| Part Number | XCSTE6311 |
| Product Range | Preventa Safety detection (XCS-TE series) |
| Type | Safety solenoid interlock switch |
| Contact Configuration | 1 NC + 1 NO (slow‑break, break‑before‑make) |
| Solenoid Contact | 1 NC (slow‑break) |
| Locking Principle | Locking on de‑energization; unlocking on energization |
| Rated Supply Voltage [Us] | 24 V AC/DC; tolerance: -20% … +10% |
| Frequency | 50/60 Hz |
| Power Consumption | 10 VA (continuous) |
| Cable Entry | 1 tapped entry, PG 11 |
| Terminal Clamping | 1 × 0.5 … 2 × 1.5 mm² (with/without cable end) |
| Body Material | Polyamide (PA) plastic |
| Head Type | Key‑operated turret head (360° rotatable in 90° steps) |
| Operating Force | Min. 15 N (positive opening) |
| Mechanical Life | Up to 1,000,000 cycles |
| Max. Operating Rate | 10 cycles/min (for max durability) |
| Degree of Protection | IP67 (EN/IEC 60529, IEC 60947‑5‑1) |
| Shock Resistance | 10 gn for 11 ms (IEC 60068‑2‑27) |
| Vibration Resistance | 5 gn (10–500 Hz) (IEC 60068‑2‑6) |
| Electrical Protection | Class II (IEC 61140) |
| Ambient Temperature | -25 °C … +60 °C |
| Weight | 0.36 kg |
| Safety Ratings | Cat. 4 (ISO 13849‑1), PL e, SIL 3 (IEC 61508) |
| Standards | EN 1088, ISO 14119, IEC 60204‑1, IEC 60947‑5‑1, ISO 12100, UL 508, CSA C22.2 No.14 |
| Country of Origin | France |
| RoHS | Compliant |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
