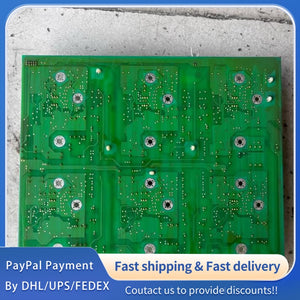

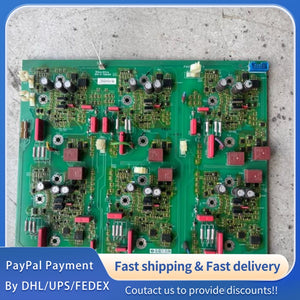

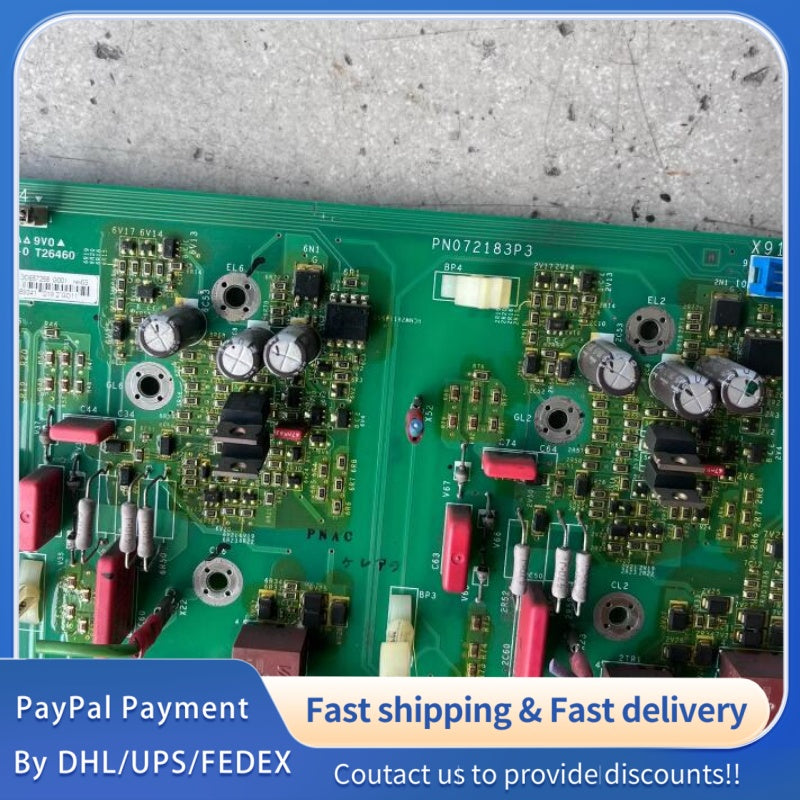

Part Number    PN072183P3 (Alternative Code: VX5A1200)
Product Type    Thyristor Driver Board/Trigger Board
Applicable Series    Schneider ATV61 & ATV71 Inverters (Typically 160kW Ratings)
Primary Function    Drives power modules (thyristor/IGBT), controls trigger timing, transmits fault protection signals, and maintains stable operation of the power circuit.
Material Code    VX5A1200
Mounting Type    Integrated with ATV61/ATV71 inverter power section
Key Interfaces    Power module connection, control signal input, protection signal output

Parameter    Value
Operating Voltage    Dependent on ATV61/ATV71 main control voltage (Typically 24V DC logic supply)
Insulation Class    Conforms to IEC 60664-1 (Overvoltage Category II/III)
Operating Temperature    -10°C to +55°C (No condensation)
Storage Temperature    -25°C to +70°C
Relative Humidity    ≤93% RH (Non-condensing, ≤80 hours/year)
Vibration Resistance    5-300Hz, 2g (per IEC 60068-2-6)
Shock Resistance    15g, 11ms (per IEC 60068-2-27)
Protection Degree    IP20 (when installed in inverter cabinet)

Standard    Certification
Safety    CE, UL, CSA (compliant with IEC 61800-5-1)
EMC    Conforms to EN 61800-3, EN 55011
Quality    Schneider original spare part, 9-month warranty (when purchased via authorized channels)

 1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
