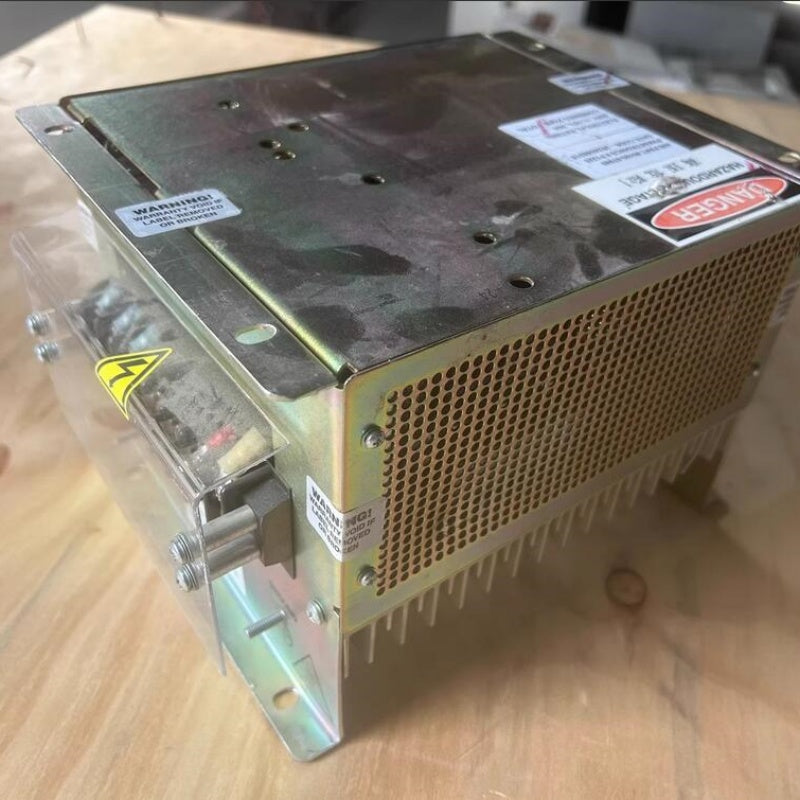

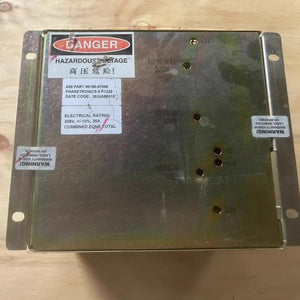

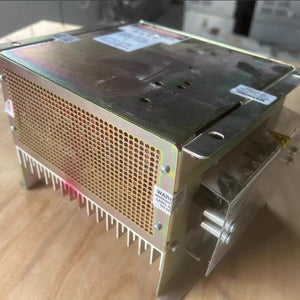

1 PCS used AMAT 0190-07699 Heater Driver (Model: P1225) #LYQ007
Parameter
Details
Part Number
0190-07699
Alternate Model
P1225 (Phasetronics)
Description
3-Channel Heater Driver Module
Application
TXZ CVD 300mm Systems
Weight
4.75 kg
Type
OEM Spare Part for Applied Materials (AMAT) Semiconductor Equipment
Parameter
Specification
Number of Output Channels
3 (Independent)
Input Voltage
AC 200–240V, 50/60 Hz (Typical)
Output Type
Phase-Angle SCR Control
Per-Channel Output Rating
Up to 25A @ 240V AC (Resistive Load)
Control Signal Input
0–10V DC Analog (Standard)
Isolation Voltage
1500V AC (Input–Output)
Control Logic
TTL/CMOS Compatible
Power Consumption
≤ 50W (Idle, Full Module)
Feature
Details
Load Regulation
±1% (Typical)
Ripple/Noise
< 2% (Full Load)
Response Time
< 100 ms
Over-Current Protection (OCP)
Per-Channel, Auto-Reset
Over-Temperature Protection (OTP)
Internal Thermostat, Shutdown > 75°C
Short-Circuit Protection
Foldback Current Limiting
Fusing
Internal 30A Fast-Acting Fuses (3x)
