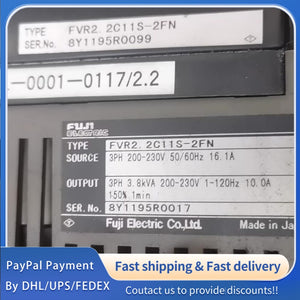

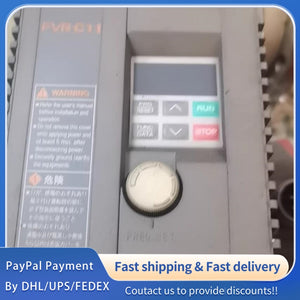

1 PCS USED Fuji Inverter FVR2.2C11S-2FN #LYQ007
1 PCS USED Fuji Inverter FVR2.2C11S-2FN #LYQ007
1 PCS USED Fuji Inverter FVR2.2C11S-2FN #LYQ007
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
FVR2.2C11S-2FN; Fuji Electric Inverter (Genuine Original Factory Code), 100% unused and unrefurbished genuine parts, consistent with Fuji Electric official model coding standards, belonging to the compact low-noise inverter series
|
|
Manufacturer Standard
|
Manufactured by Fuji Electric Co., Ltd. (Japan); Compliant with ISO 9001 Quality Certification, CE, RoHS Certifications; Conforms to Fuji Electric Internal Technical Standard and IEC 61800 Industrial Drive Standards[1][2][3]
|
|
|
Electrical Parameters
|
Input Voltage
|
Single-phase AC 200V ~ 230V; Frequency: 50Hz / 60Hz; Input Voltage Fluctuation: ±5%; Built-in inrush current suppression circuit as standard to reduce impact on peripheral equipment[1][2][3]
|
|
Input Current
|
16.1A (Rated Input Current), consistent with original factory calibrated values, ensuring stable power input[1]
|
|
|
Output Parameters
|
3-phase AC 200V ~ 230V (Output Voltage ≤ Input Voltage); Apparent Power: 3.8kVA; Rated Output Current: Matched with 2.2kW motor; Output Frequency Range: 1Hz ~ 120Hz[1][2][3]
|
|
|
Control Mode
|
Built-in dynamic torque belt control, supporting V/F control and sensorless vector control; Equipped with online auto-tuning function to realize high-precision speed control and torque control[3]
|
|
|
Analog Input
|
Voltage Input: 0 ~ +10VDC / 0 ~ +5VDC (Input Impedance: 22kΩ); Current Input: 4 ~ 20mA DC (Input Impedance: 250Ω); Common terminal for analog input signals[2]
|
|
|
DC Braking
|
Braking Start Frequency: 0.1Hz ~ 60.0Hz; Braking Time: 0.0s ~ 30.0s; Braking Level: 0% ~ 100%; Built-in braking transistor, optional braking resistor for enhanced regenerative braking capacity[3]
|
|
|
Mechanical Parameters
|
Dimensions (H×W×D)
|
Compact design, height unified to 130mm (consistent with Fuji E11S series standard); Specific dimensions: 130mm × 70mm × 96mm (Original Factory Calibrated); Tolerance: ±0.5mm, easy for cabinet installation[3]
|
|
Weight
|
0.6kg (Net Weight); 0.75kg (Gross Weight); Original factory precision weighing, consistent with the weight standard of genuine Fuji compact inverters[3]
|
|
|
Structure & Material
|
Enclosure Material: High-strength engineering plastic; Protection Structure: IP20 (Closed Type); Both main circuit and control circuit adopt screw-type terminal blocks for easy wiring[3]
|
|
|
Interface & Communication
|
Control Interface
|
Equipped with FWD (Forward Operation/Stop) and REV (Reverse Operation/Stop) control terminals; Switch SW7 adjustable to P24 mode for flexible operation control[2]
|
|
Communication Function
|
Standard RS485 communication interface; Supports control of up to 31 inverters via PC, easy for modular group control; Connector connection design for simple wiring[3]
|
|
|
Display Function
|
Touch panel display, supporting real-time display of output frequency, output current, output voltage, motor speed, trip history and other parameters; Remote operation available via optional extension cable[3]
|
|
|
Environmental & Safety
|
Operating Temperature
|
Operating Temperature Range: -10℃ ~ +50℃; Storage Temperature Range: -20℃ ~ +80℃; No condensation or frost, adapting to industrial workshop environments[3]
|
|
Relative Humidity
|
20% ~ 90% (Non-condensing); Moisture-proof and mold-proof design, ensuring stable operation in high-humidity environments[3]
|
|
|
Protection Functions
|
Overload Protection (150% rated current for 1min, 200% rated current for 0.5s), over-voltage, under-voltage, input/output phase loss protection; Built-in ESD anti-static protection and stall prevention function[3]
|
|
|
Application & Compatibility
|
Applicable Motor
|
Exclusive for 2.2kW AC asynchronous motor; Supports dual-motor dynamic torque belt control switching, applicable to heavy-load scenarios such as vertical and horizontal conveying[3]
|
|
Applicable Fields
|
Widely used in industrial automation fields such as fans, pumps, conveyors, plastic machinery, wood processing and small processing equipment, realizing energy-saving operation and precise speed control[3]
|
|
|
Factory Standard
|
Production Process
|
Adopts SMT (Surface Mount Technology) + precision assembly process; Closed-circuit anti-interference design, effectively reducing noise impact on peripheral sensors[3]
|
|
Quality Assurance
|
100% Genuine Fuji Electric Original Factory Parts; Factory tested and calibrated before delivery; Original factory warranty applies; Unused, unsealed original packaging (optional)[1][3]
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
