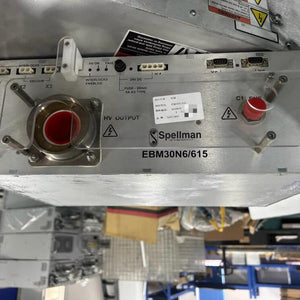

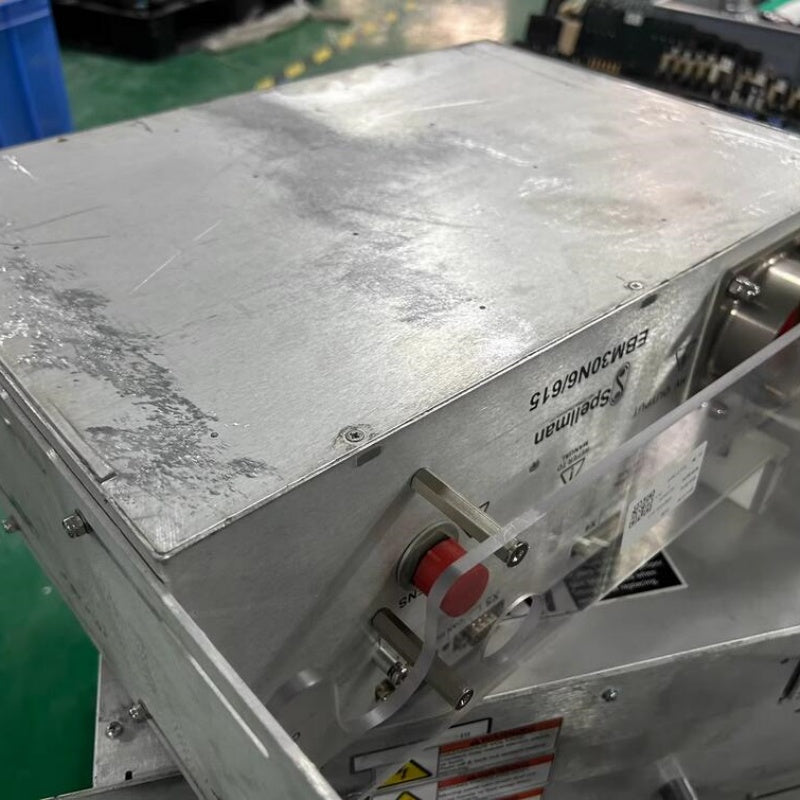

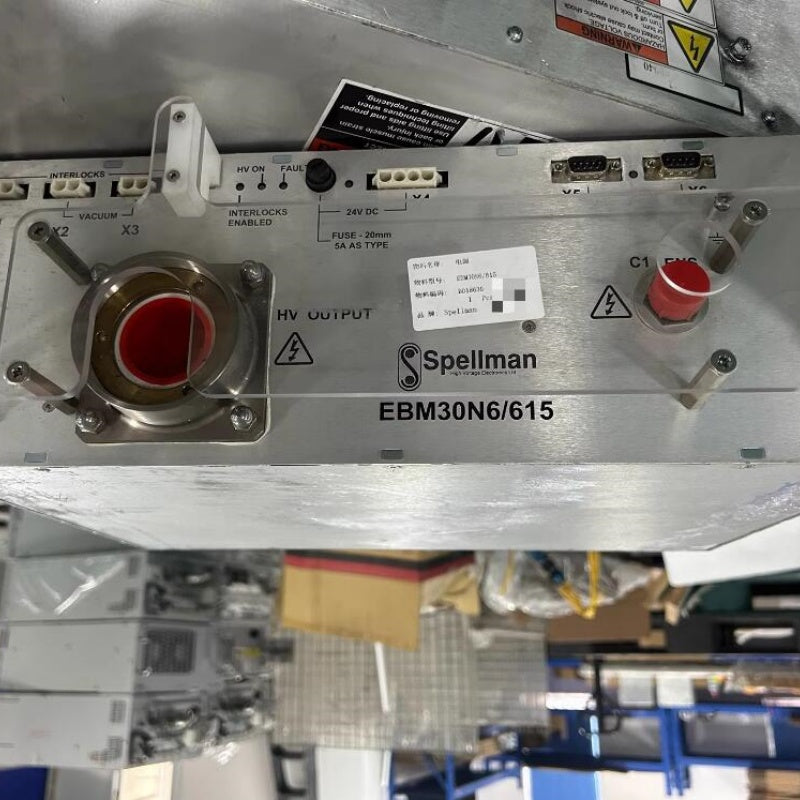

1 PCS used Spellman EBM30N6/615 (EBM30N/TEG) power supply #LYQ007
Parameter
Details
Product Type
Triode Supply for Thermionic SEM (Scanning Electron Microscope)
Input Voltage
+24Vdc, ±5% @ 2.5A max.
Operating Temperature
0°C to +45°C
Storage Temperature
-20°C to +75°C
Humidity
0 to 85% RH, non-condensing
Dimensions
4.13" H x 9.85" W x 7.48" D (105mm x 250mm x 190mm)
Weight
16.5 lbs (7.5 kg)
Safety Approvals
UL (E354595), CE, UKCA, RoHS
Compliance
IEC/UL 61010-1, CAN/CSA-C22.2 No.61010-1
Output
Voltage Range
Max Current
Reference
Connector
Accelerator
0 to -30kV (up to -32kV)
170µA
Ground
Claymount CA11 Mini 75
Bias Cancellation
0 to +3.5kV
150µA
Accelerator
Claymount CA11 Mini 75
Filament
-1.936V to +1.936V
3.87A (Trip: 1.2mA)
Accelerator
Claymount CA11 Mini 75
PMT
0 to -1.3kV
1mA
Ground
Radiall R316 553 (BNC.HT)
Scintillator
+8kV to +11kV
250µA
Ground
Custom 'Poke Home'
Collector
30V to 500V
5mA
Ground
Radiall R316 553 (BNC.HT)
