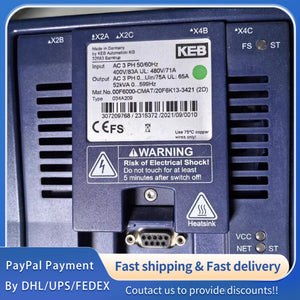

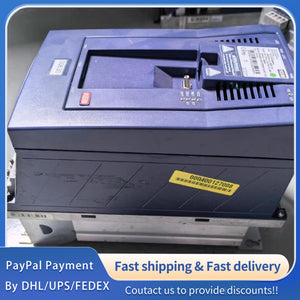

1 PCS used KEB Driver 034A209 00F6000-CMAT/20F6K13-3421 #LYQ007
1 PCS used KEB Driver 034A209 00F6000-CMAT/20F6K13-3421 #LYQ007
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Driver Model
|
034A209; 00F6000-CMAT/20F6K13-3421 (Dual Model Compatibility, Genuine KEB Original Factory Code)
|
|
Manufacturer Standard
|
Compliant with ISO 9001, CE, UKCA Certifications; Conforms to EN 61800-5-1, IEC 61800 Industrial Control Standards[4]
|
|
|
Electrical Parameters
|
Input Voltage
|
3-Phase AC 400V (Nominal); Input Voltage Range: 380V ~ 480V AC; Frequency: 50/60Hz ±5%[3][4]
|
|
Output Current
|
Nominal Output Current: 75A (rms); Peak Current: 150% of Nominal Current, Durable for 60 Seconds[1][4]
|
|
|
Control Voltage
|
DC 24V ±10% (Working Voltage); Input Range: DC 21.6V ~ 26.4V; Power Consumption: ≤35W (Working), ≤12W (Standby)
|
|
|
Drive Performance
|
Switching Frequency
|
Nominal: 2kHz; Adjustable Options: 2kHz, 4kHz, 8kHz, 16kHz (Adaptable to Noise & Efficiency Requirements)[1][4]
|
|
Output Frequency Range
|
0 ~ 599Hz (Supports High-Speed Motor Drive for Industrial Scenarios)[1]
|
|
|
Drive Control Mode
|
V/F Control, Sensorless Vector Control, High-Performance Servo Control; Complies with CiA 402/61800-7 Drive Architecture Standards[3][4]
|
|
|
Interface & Communication
|
Encoder Interface
|
Dual-Channel Multi-Encoder Interface: Incremental Encoder, Resolver, Hiperface, SinCos, SSI, EnDat 2.1/2.2, BISS; Supports Encoder Emulation[1][4]
|
|
Communication Protocol
|
Supports CANopen, Varan, EtherCAT, PROFINET, Ethernet/IP (Real-Time Data Exchange with Automation Systems)[3][4]
|
|
|
Temperature Sensor Interface
|
Compatible with KTY/PTC/PT1000 Temperature Sensors (Real-Time Temperature Monitoring & Over-Temperature Protection)[1]
|
|
|
Mechanical & Safety
|
Dimensions
|
170 x 340 x 245 mm (Frame Size 3); Housing: Compact Type; Heat Sink: IP20, Air-Cooled, Built-In Variant[4]
|
|
Weight
|
9.300 kg (Gross Weight, Original Factory Calibrated)
|
|
|
Safety Functions
|
Built-in STO Safety Function; Over-Voltage, Under-Voltage, Reverse Polarity Protection; Negative Voltage Shutdown Function[3][4]
|
|
|
Application & Compatibility
|
Applicable Motor Type
|
Synchronous (PMSM), Asynchronous, IPM, High Torque, High Speed, Synchronous Reluctance Motors[1][4]
|
|
Applicable Power Range
|
37kW (Nominal Rated Power); Compatible with KEB COMBIVERT F6 Series Inverters, Direct Replacement Without Parameter Modification[1][3]
|
|
|
Factory Standard
|
Production Process
|
SMT (Surface Mount Technology) + Through-Hole Technology (THT); High-Density Circuit Layout; Closed-Circuit Anti-Interference Design[4]
|
|
Quality Assurance
|
100% Genuine KEB Original Factory Parts; Factory Tested & Calibrated Before Delivery; Unused, Unsealed Original Packaging (Optional)
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
