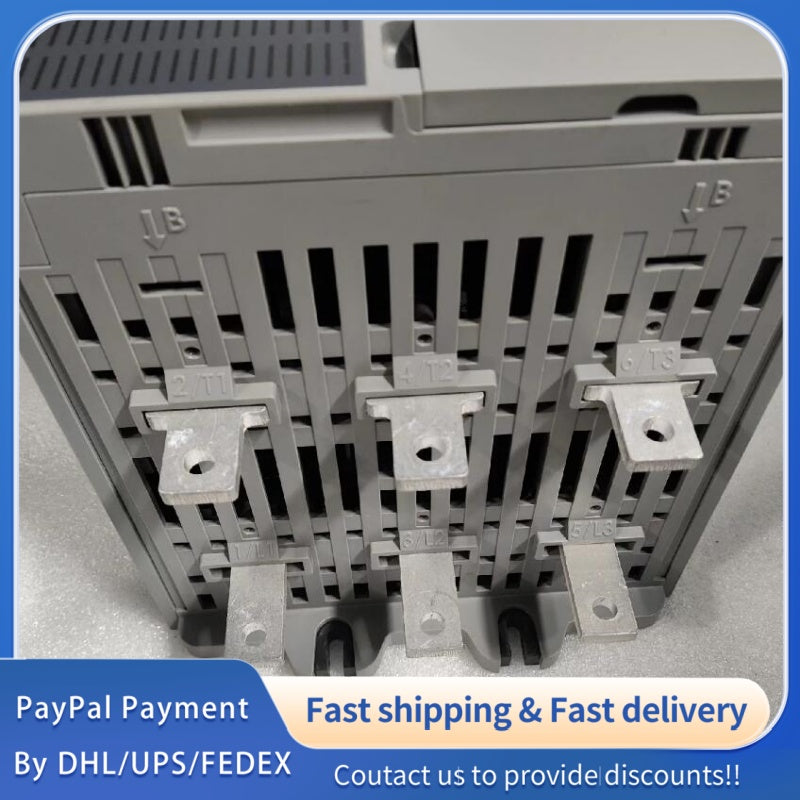

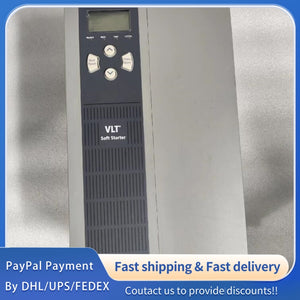

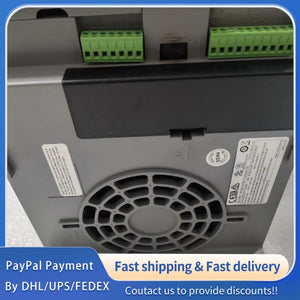

1 PCS used Danfoss Soft Starter MCD6-0171B-T5-S2X-00-CV2 #LYQ007
1 PCS used Danfoss Soft Starter MCD6-0171B-T5-S2X-00-CV2 #LYQ007
1 PCS used Danfoss Soft Starter MCD6-0171B-T5-S2X-00-CV2 #LYQ007
|
Parameter Name
|
Original Factory Specification
|
|
Manufacturer
|
Danfoss (Denmark), Genuine Original Factory, Compliant with ISO 9001, CE, RoHS, IEC 60947, EN 60947 International and European Industrial Control Standards and Soft Starter Manufacturing Norms[2]
|
|
Product Type
|
Industrial-Grade Soft Starter, Thyristor Type, High-Stability Control, Surface Mount Technology (SMT) + Through-Hole Technology (THT), Closed Circuit Design, with Anti-Corrosion and Anti-Oxidation Coating on Surface, Compliant with Industrial Motor Control Layout and Process Standards, Suitable for AC Motor Soft Starting, Overload Protection and Energy-Saving Operation[2][3]
|
|
Rated Input Voltage
|
3-Phase AC 400V ±10% (Rated Voltage), Input Voltage Range: 3-Phase AC 360V ~ 440V, Frequency Range: 50Hz / 60Hz ±5%, Compatible with Dual Frequency Power Supply, Suitable for Global Industrial Power Grid Standards[2][4]
|
|
Rated Output Current
|
171A (Rated Continuous Current), Maximum Output Current: 256.5A (1.5x Rated Current, 60s), 342A (2.0x Rated Current, 3s), Short-Circuit Current Capacity: 10kA (1s), Overcurrent Protection Threshold Adjustable: 1.1x ~ 2.0x Rated Current[2][4]
|
|
Controlled Motor Power
|
90kW (3-Phase, 400V, 50Hz), Compatible with Motor Power Range: 75kW ~ 110kW, Suitable for Squirrel-Cage Induction Motors, Supports Light Load, Medium Load and Heavy Load Motor Starting (Adjustable via Parameter Settings)[3][4]
|
|
Starting Mode
|
Voltage Ramp Starting (Adjustable Ramp Time: 0.5s ~ 30s), Current Limit Starting (Adjustable Current Limit: 1.1x ~ 2.0x Rated Current), Soft Stop (Adjustable Stop Time: 1s ~ 60s), Kick Start (Adjustable Kick Time: 0.1s ~ 2s, Kick Voltage: 30% ~ 80% Rated Voltage)[2][4]
|
|
Control Signal & Output
|
Analog Input: 4~20mA Current Signal (Load Resistance 0~750Ω), 0~10V Voltage Signal; Digital Input: 6 (Dry Contact, 24V DC), Support Start, Stop, Reset Control; Analog Output: 4~20mA Current Signal (Output Accuracy: ±0.5%), 0~10V Voltage Signal; Digital Output: 4 (Relay Output, 250V AC / 30V DC, 5A); Communication Output: RS485, MODBUS RTU Protocol, BACnet Protocol (Optional), Signal Transmission Accuracy: ≤±0.02%[2][4]
|
|
Operating Environment Temperature
|
-25℃ ~ +70℃ (-13°F ~ 158°F), No Condensation; Motor Temperature Monitoring: -20℃ ~ +150℃ (Via PTC Thermistor); Ambient Temperature Above 40℃, Derate Operation Required (Derate 1.5% per ℃)[2][4]
|
|
Storage Temperature Range
|
-40℃ ~ +85℃ (-40°F ~ 185°F), Relative Humidity: 5% ~ 95% (Non-Condensing), Anti-Mildew, Dustproof, Anti-Corrosion Design, Suitable for Long-Term Storage and Transportation, Storage Period: ≥2 Years (Under Standard Storage Conditions)[2]
|
|
Protection Level & Insulation
|
Protection Level: IP20 (Standard Type), IP54 (Optional), IP65 (Optional); Insulation Class: F (155℃), Insulation Resistance: ≥100MΩ (500V DC); Anti-Interference: Meets EMC Standards (EN 55011, EN 55022), Resistant to Electromagnetic Radiation and Conducted Interference[2][4]
|
|
Mounting Type
|
Panel Mounting, DIN Rail Mounting (Optional), Mounting Standard: IEC 60715, DIN EN 50022; Mounting Direction: Vertical (Recommended), Horizontal (Derate 10%); Installation Clearance: Top ≥100mm, Bottom ≥100mm, Left/Right ≥50mm; Easy to Install and Disassemble, High Mounting Stability[2][4]
|
|
Certifications
|
CE, RoHS, ISO 9001, IEC 60947-4-2, EN 60947-4-2, UL, CSA Compliant[2]; Meets International and European Industrial Soft Starter Safety, Electromagnetic Compatibility and Environmental Standards; Complies with Industrial Motor Control High-Reliability Standards, with Excellent Stability and Anti-Interference Ability
|
|
Service Life
|
Typical: 50,000 Hours (Continuous 24/7 Operation) at Average Ambient Temperature 25℃; Thyristor Service Life: ≥100,000 Cycles (Normal Starting/Stop); Under Standard Operating Conditions and Regular Maintenance, Service Life Can Reach 10 Years, Consistent with Danfoss Industrial Product Durability Standards[2]
|
|
Special Features
|
Built-in Fault Self-Diagnosis Function and Alarm Output, Real-Time Monitoring of Soft Starter and Motor Operation Status, Fault Code Display (LCD Screen) for Easy Troubleshooting; High Anti-Interference Design, Adaptable to Complex Industrial Electromagnetic Environments; Low Power Consumption, Energy-Saving and Environmental Protection (Power Consumption: ≤15W in Standby, ≤50W in Operation); Compatible with Most Industrial Control Systems, Easy to Replace and Upgrade; Equipped with Signal Isolation Circuit, Effectively Preventing Signal Interference and Component Damage; Anti-Vibration Design: 10~500Hz, 1g; Parameter Adjustment: Via Local LCD Keypad or Danfoss DriveComposer Software[2][4]
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
