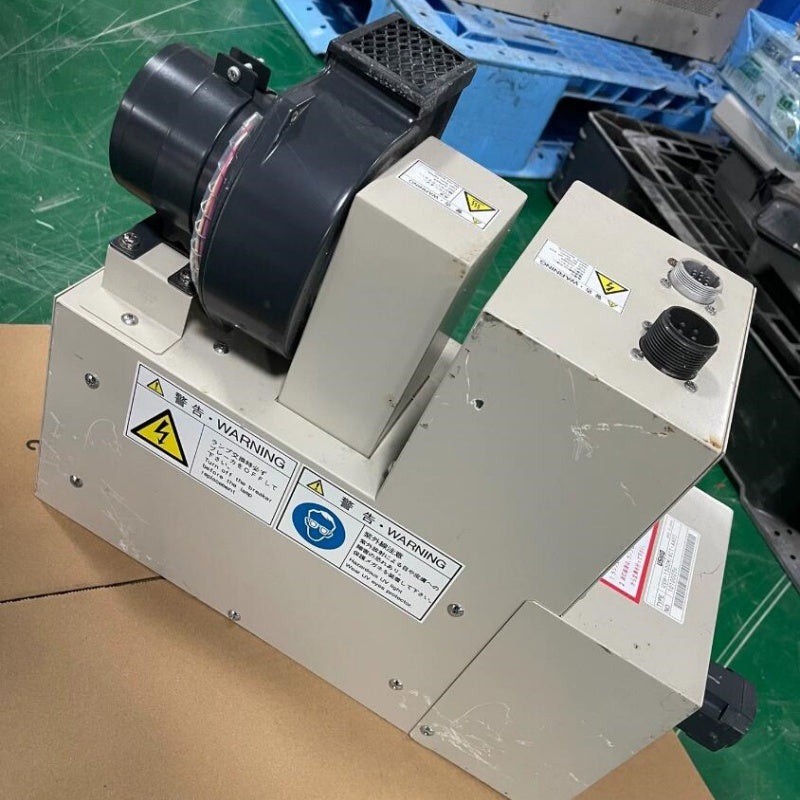

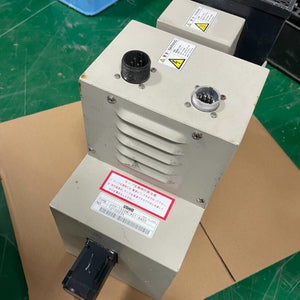

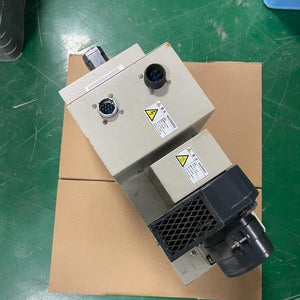

1 PCS used USHIO UVH-1500M/XC1-AA05 UV Lamp Controller #LYQ007
Item
Details
Model
UVH-1500M/XC1-AA05
Type
UV Lamp Electronic Controller (Ballast)
Suitable Lamp
UVH-1500M Series Medium Pressure Mercury UV Lamp
Input Voltage
AC 380V ± 10%, 50/60Hz, 3-phase
Input Current
≤ 4.5A (Rated Load)
Output Power
1500W (Rated)
Output Voltage
Approx. 1.5kV (Open Circuit)
Output Current
7.5A ± 5% (Rated)
Operating Frequency
20kHz ~ 40kHz (High Frequency)
Power Factor
≥ 0.95
Efficiency
≥ 0.90
Item
Details
Control Mode
Automatic Ignition & Constant Power Control
Ignition Time
≤ 5s (Successful Ignition)
Soft Start Time
30s ~ 60s
Over Voltage Protection
Triggers at > 115% of Rated Voltage
Over Current Protection
Triggers at > 120% of Rated Current
Over Temperature Protection
Triggers at Internal Temp > 85°C
Lamp Failure Protection
Auto Shut-Down on Abnormal Lamp Status
Short Circuit Protection
Immediate Protection on Output Short
Alarm Output
Relay Contact (NO/NC), 250V AC/30V DC, 1A
Item
Details
Dimensions (W×H×D)
350mm × 220mm × 180mm
Weight
Approx. 8.5kg
Cooling Method
Forced Air Cooling
Protection Level
IP20 (Indoor Use)
Insulation Class
Class B
Operating Temp.
-10°C ~ +45°C
Storage Temp.
-20°C ~ +60°C
Operating Humidity
20% ~ 85% RH (Non-Condensing)
Altitude
≤ 1000m Above Sea Level
