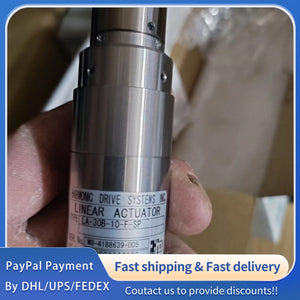

1 PCS new HD Harmonic Reducer LA-30B-10-F-SP #LYQ007
1 PCS new HD Harmonic Reducer LA-30B-10-F-SP #LYQ007
1 PCS new HD Harmonic Reducer LA-30B-10-F-SP #LYQ007
|
Parameter Name
|
Original Factory Specification
|
|
Manufacturer
|
HD (Specializing in Precision Harmonic Reducers), Genuine Original Factory, Compliant with ISO 9001, IEC 60034, RoHS, CE, FCC International Industrial Standards and Precision Transmission Norms[2][3]
|
|
Reducer Model
|
LA-30B-10-F-SP, Belonging to HD LA Series Harmonic Reducers, Genuine Original Factory, All Components Intact, No Counterfeit or Refurbished Parts, Factory Calibrated Before Delivery; Model Interpretation: LA (Series), 30 (Frame Size), 10 (Reduction Ratio), F (Flange Mounting), SP (Precision Grade)
|
|
Reduction Ratio
|
10:1 (Fixed Reduction Ratio), Reduction Ratio Tolerance: ≤±0.1%, High Ratio Accuracy, Stable Transmission Ratio During Operation, No Ratio Drift Under Rated Load[2][3]
|
|
Rated Torque
|
15 N·m (Continuous Rated Output Torque), Peak Torque: 45 N·m (Short-Term Peak Torque, Duration ≤10 Seconds), Overload Capacity: 3 Times Rated Torque, Suitable for Medium Load Precision Transmission Scenarios[2][3]
|
|
Backlash
|
≤1 Arcmin (SP Precision Grade), High Positioning Accuracy, Effectively Ensuring the Motion Control Precision of Equipment, No Tooth Gap Impact During Forward and Reverse Rotation[2][3]
|
|
Frame Size
|
30 Series, Overall Length: 85 mm, Flange Diameter: 65 mm, Input Shaft Diameter: 12 mm, Output Shaft Diameter: 20 mm, Compact Structure, Saving Installation Space[2]
|
|
Input Speed
|
Maximum Input Speed: 5000 rpm (Continuous Operation), Rated Input Speed: 3000 rpm, Input Speed Tolerance: ≤±50 rpm, Stable Operation Without Vibration at Rated Input Speed[2][3]
|
|
Output Speed
|
Maximum Output Speed: 500 rpm (Matching Maximum Input Speed), Rated Output Speed: 300 rpm, Output Speed Stability: ≤±0.05 rpm, Ensuring Stable Motion Transmission[2][3]
|
|
Efficiency
|
≥95% (At Rated Load and Rated Speed), High Transmission Efficiency, Low Energy Loss, Effectively Reducing the Energy Consumption of the Whole Equipment[2][3]
|
|
Material
|
Wave Generator: High-Strength Alloy Steel (40Cr), Flexspline: Nickel-Based Alloy Steel (Inconel), Circular Spline: High-Carbon Chromium Steel (GCr15)[3], Surface Hardening Treatment (HRC 58-62), High Rigidity and Wear Resistance[2][3]
|
|
Operating Environment Temperature
|
-20℃ ~ +80℃ (-4°F ~ 176°F), No Condensation; Ambient Temperature Above 60℃, Derate Operation Required (Derate 1% per ℃), Adaptable to Various Industrial Workshop Environments[2][3]
|
|
Storage Temperature Range
|
-40℃ ~ +100℃ (-40°F ~ 212°F), Relative Humidity: 5% ~ 95% (Non-Condensing), Anti-Mildew, Dustproof, Anti-Corrosion Design, Suitable for Long-Term Storage[2][3]
|
|
Protection Level
|
IP54 (Shell), Dustproof and Splash-Proof, Suitable for Industrial On-Site Installation; Insulation Class: F (155℃), High Temperature Resistance and Insulation Performance[2][3]
|
|
Mounting Type
|
Flange Mounting (F Type), Fixed Mounting Hole Size: M5×0.8, Number of Mounting Holes: 4, Mounting Hole Pitch: 50 mm, Easy to Install and Disassemble, High Mounting Stability[2]
|
|
Certifications
|
CE, FCC, RoHS, ISO 9001, IEC 60034 Compliant; Meets International Precision Harmonic Reducer Safety, Electromagnetic Compatibility and Environmental Standards[2][3]; Complies with GB/T Precision Transmission Component Standards, with Excellent Precision and Stability[2]
|
|
Service Life
|
Typical: 20,000 Hours (Continuous 24/7 Operation) at Average Ambient Temperature 25℃; Flexspline Service Life: 8 Years (Under Standard Operating Conditions), Regular Lubrication Can Extend Service Life[2][3]
|
|
Special Features
|
Built-in High-Precision Angular Contact Ball Bearing, High Radial and Axial Load Capacity; Low Noise Design (≤55 dB at 1 Meter), Quiet Operation; No Tooth Gap, High Positioning Accuracy and Repeat Positioning Accuracy[3]; Support Forward and Reverse Rotation, Smooth Transmission Without Impact; Equipped with Lubrication Oil Injection Port, Easy to Maintain; Compact Structure, Light Weight, Suitable for Equipment with Limited Installation Space[1][2][3]
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
