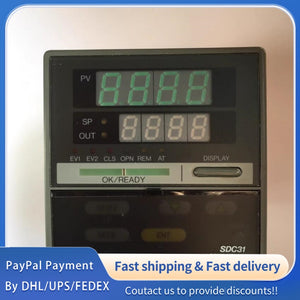

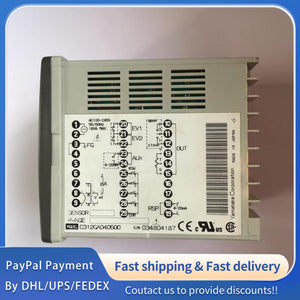

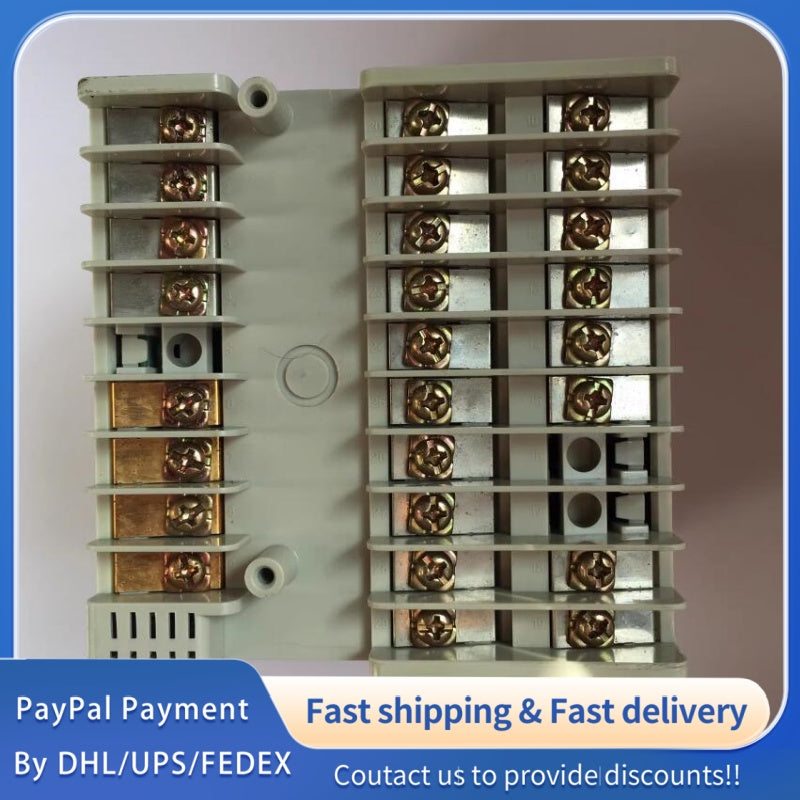

1 PCS used YAMATAKE SDC31 C312GA040500 Temperature Controller #LYQ007
1 PCS used YAMATAKE SDC31 C312GA040500 Temperature Controller #LYQ007
1 PCS used YAMATAKE SDC31 C312GA040500 Temperature Controller #LYQ007
Original Factory Precision Parameters (Model: YAMATAKE SDC31 C312GA040500 Temperature Controller)
|
Parameter Category
|
Parameter Name
|
SDC31 C312GA040500 Specification
|
|
Basic Information
|
Product Model
|
SDC31 C312GA040500; YAMATAKE Genuine Original Temperature Controller, 100% unused and unrefurbished genuine parts; Belongs to YAMATAKE SDC31 series, specialized for industrial temperature control scenarios.
|
|
Manufacturer Standard
|
Manufactured by YAMATAKE Corporation; Complies with CE, FCC, UL, ISO 9001, RoHS, IEC 61508 Standards; Conforms to YAMATAKE Internal Technical and Quality Norms for Temperature Controllers.
|
|
|
Product Application
|
Industrial Temperature Control; Widely used in Chemical Industry, Pharmaceutical Machinery, Food Processing, Electronic Equipment, Heating & Cooling Systems, Automation Production Lines and other industrial scenarios, realizing precise temperature detection and control.
|
|
|
Temperature Control Parameters
|
Control Mode
|
PID Control (Proportional-Integral-Derivative); On-Off Control; Auto-Tuning Function; Supports Self-Optimization of PID Parameters, adapting to different load changes and ensuring stable temperature control.
|
|
Temperature Control Range
|
-199℃ ~ 999℃; Adjustable continuously, covering most industrial low-temperature and high-temperature control requirements.
|
|
|
Temperature Control Accuracy
|
±0.1℃ (At 0~100℃, Stable Load); ±0.2℃ (Full Range); High control precision, meeting high-demand temperature control scenarios such as electronic manufacturing and pharmaceutical production.
|
|
|
Temperature Resolution
|
0.1℃ (Full Range); Clear temperature display and precise adjustment, ensuring accurate temperature control.
|
|
|
Auto-Tuning Accuracy
|
±0.3℃; Auto-Tuning Response Time: ≤ 60s; Automatically identifies load characteristics and optimizes PID parameters, reducing manual debugging time.
|
|
|
Proportional Band (P)
|
0.1~999.9℃; Adjustable continuously, adapting to different temperature control systems and load characteristics.
|
|
|
Integral Time (I)
|
0~9999s; Adjustable, eliminating static error of temperature control and ensuring stable temperature without deviation.
|
|
|
Derivative Time (D)
|
0~9999s; Adjustable, suppressing temperature overshoot and accelerating response speed of temperature control system.
|
|
|
Input Parameters
|
Input Type
|
Thermocouple (K, J, T, E, S, R, B Type); RTD (Pt100, Cu50); Analog Input (0~10VDC, 4~20mA); Multiple input types are switchable, flexible adaptation to different temperature sensors.
|
|
Input Impedance
|
≥ 100 MΩ (For Voltage Input); ≤ 100 Ω (For Current Input); ≥ 10 kΩ (For Thermocouple/RTD); Ensuring stable input signal and reducing interference.
|
|
|
Sensor Error Correction
|
-99.9℃ ~ +99.9℃; Adjustable, correcting temperature deviation caused by sensor aging or installation position, ensuring accurate temperature detection.
|
|
|
Cold Junction Compensation
|
0℃ ~ 50℃; Compensation Accuracy: ±0.2℃; Automatically compensates for cold junction temperature of thermocouple, ensuring accurate temperature measurement.
|
|
|
Input Noise Rejection
|
≥ 40 dB (50/60 Hz); Effectively resisting electromagnetic interference in industrial environment, ensuring stable input signal.
|
|
|
Sampling Period
|
≤ 100 ms; Fast sampling speed, real-time feedback of temperature changes, ensuring timely adjustment of temperature control system.
|
|
|
Output Parameters
|
Output Type
|
Relay Output (SPDT); Analog Output (0~10VDC, 4~20mA); SSR Drive Output (DC 3~32V, 500mA); Multiple output types, adapting to different execution components (heater, cooler, pump, etc.).
|
|
Relay Output Capacity
|
AC 250V, 5A; DC 30V, 5A; High load capacity, suitable for most industrial heating and cooling control circuits.
|
|
|
Analog Output Accuracy
|
±0.5% F.S. (Full Scale); Stable output signal, ensuring precise control of execution components.
|
|
|
SSR Drive Output Accuracy
|
±1% F.S.; Fast response speed, suitable for high-frequency switching control of SSR components.
|
|
|
Output Delay Time
|
0~999s; Adjustable, preventing frequent switching of execution components and extending service life.
|
|
|
Output Protection
|
Over-Current Protection; Short-Circuit Protection; Automatic shutdown when output is abnormal, protecting the controller and execution components.
|
|
|
Power Input & Control Interface
|
Power Input Voltage
|
AC 100~240V ±10%; Frequency: 50/60 Hz ±5%; Wide voltage input range, adapting to different regional power supply standards.
|
|
Power Consumption
|
Idle Power Consumption: ≤ 5 W; Full Load Power Consumption: ≤ 15 W; Low power consumption, energy-saving and environment-friendly.
|
|
|
Auxiliary Power Output
|
DC 24V, 1A; Used for power supply of temperature sensors and auxiliary components, reducing external power supply configuration.
|
|
|
Communication Interface
|
RS485 (Modbus RTU); Communication Baud Rate: 9600-115200 bps; Supports remote temperature control and parameter setting, facilitating system integration.
|
|
|
Digital Input/Output
|
4 Digital Inputs (Optically Isolated); 2 Digital Outputs (Relay Output); Input Voltage: DC 24V ±10%; Used for external control signal input and status feedback.
|
|
|
Control Signal Isolation
|
Optical Isolation Voltage: ≥ 2500 VAC; Isolation Resistance: ≥ 100 MΩ; Effectively resists electromagnetic interference in industrial environment.
|
|
|
Voltage Protection
|
Over-Voltage Protection: ≥ 264 VAC; Under-Voltage Protection: ≤ 85 VAC; Automatic Power-Off Protection when input voltage is abnormal, protecting internal components.
|
|
|
Structural & Environmental Parameters
|
Display Type
|
Dual LED Display (Red for Measured Temperature, Green for Set Temperature); Display Range: -199℃ ~ 999℃; Clear display, easy to observe temperature status.
|
|
Installation Type
|
Panel Mounting; Installation Hole Dimensions: 48×48 mm (Standard); Equipped with Standard Mounting Accessories; Easy to Install and Disassemble, saving installation time.
|
|
|
Dimensions (L×W×H)
|
48 × 48 × 100 mm (±0.1 mm); Compact Structure, Small Installation Space, suitable for narrow control panels.
|
|
|
Structure Material
|
Housing: High-Strength Engineering Plastic (Anti-Corrosion, Flame-Retardant); Front Panel: PC Material (High Transparency, Scratch-Resistant); Safe and durable, adapting to industrial environment.
|
|
|
Operating Temperature
|
-10℃ ~ 55℃; Over-Temperature Protection: ≥ 60℃ (Automatic Shutdown), protecting internal components from overheating damage.
|
|
|
Storage Temperature
|
-25℃ ~ 85℃; Relative Humidity: 10% ~ 95% (Non-Condensing), adapting to harsh storage and transportation environments.
|
|
|
Weight
|
80 g (Net Weight, Without Accessories); Lightweight Design, Easy to Transport and Install.
|
|
|
Protection & Other Parameters
|
Protection Level
|
IP65 (Front Panel); IP20 (Rear Terminal); Dustproof, Waterproof, Suitable for Installation in Humid and Dusty Industrial Environments.
|
|
ESD Protection
|
±15 kV (Contact), ±25 kV (Air); Effectively resists static electricity interference in industrial environment, ensuring stable operation.
|
|
|
EMI/EMS Performance
|
EMI: Complies with EN 55011; EMS: Complies with EN 55022; Strong Anti-Electromagnetic Interference Ability, adapting to complex industrial power environments.
|
|
|
Fault Alarm Function
|
Built-in Fault Alarm Indicator (Red); Fault Types: Sensor Fault, Over-Temperature, Under-Temperature, Power Fault; Supports Fault Signal Output, facilitating quick fault diagnosis and maintenance.
|
|
|
Service Life
|
≥ 50000 Operating Hours (Continuous Operation, Standard Working Conditions); Low Maintenance Frequency, reducing use cost.
|
|
|
Warranty Period
|
12 Months (Genuine Original Product Warranty); Supports YAMATAKE Official After-Sales Service, ensuring reliable after-sales support.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
