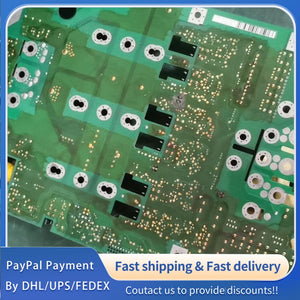

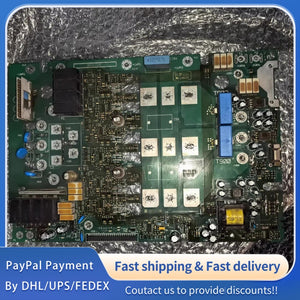

Lenze Servo Drive Power Driver Board 8222LP.1D.V201
Product Overview: The Lenze 8222LP.1D.V201 is a genuine original factory power driver board, exclusively designed and manufactured by Lenze (Lenze 伦茨), a global leader in industrial automation and drive technology. Adhering to Lenze's strict German engineering standards and precision manufacturing processes, this power driver board is the core component of Lenze servo drives, responsible for power conversion, drive control and signal feedback processing. It is specially developed for industrial servo drive systems, integrating high-efficiency power conversion, strong anti-interference ability and reliable overload protection, widely applicable to industrial automation, mechanical transmission, robotics, packaging machinery and other harsh industrial scenarios. With high-quality electronic components and optimized circuit design, it ensures stable power output, precise drive control and long-term continuous operation, fully meeting the strict requirements of servo drive systems for power supply and drive performance.
Original Factory Precision Parameters
|
Parameter Name
|
Original Factory Specification
|
|
Manufacturer
|
Lenze SE (Lenze 伦茨), Genuine Original Factory, Compliant with IEC, EN, RoHS International Industrial Standards, Strictly in Line with Lenze Servo Drive Component Manufacturing Specifications
|
|
Product Model
|
8222LP.1D.V201, Genuine Original Factory Power Driver Board for Lenze Servo Drives, All Components Intact, No Counterfeit or Refurbished Parts, Factory Tested Before Delivery
|
|
Product Type
|
Industrial-Grade Servo Drive Power Driver Board, Core Component of Lenze Servo Drive Systems, Responsible for Power Conversion, Drive Control and Signal Feedback Processing
|
|
Input Voltage
|
DC 540V ~ 690V, Wide Voltage Adaptation, Input Voltage Tolerance: ±10%, Suitable for Industrial High-Voltage Power Supply Scenarios, Reverse Polarity Protection
|
|
Output Current
|
Continuous Output Current: 15A, Peak Output Current: 30A (≤ 10 Seconds), Stable Current Output, Overcurrent Protection Threshold: 32A
|
|
Power Conversion Efficiency
|
≥ 97% (Full Load Condition), High-Efficiency Power Conversion, Low Energy Consumption, Reducing Heat Generation, Suitable for Long-Term Continuous Operation
|
|
Control Mode
|
Vector Control, PWM (Pulse Width Modulation) Control Mode, PWM Frequency: 8kHz ~ 16kHz, Adjustable, Precise Servo Motor Speed and Position Control
|
|
PCB Material & Specification
|
High-Quality FR-4 Base Material (TG150), Flame Retardant Grade: UL94 V-0, Double-Sided PCB, Copper Thickness: 2 Oz (70μm), Effective Heat Dissipation and Circuit Protection
|
|
Operating Temperature Range
|
-25℃ ~ +85℃ (-13°F ~ 185°F), Wide Temperature Adaptation, Stable Operation in Extreme Industrial Environments, Working Humidity: 10% ~ 90% (Non-Condensing)
|
|
Storage Temperature Range
|
-40℃ ~ +125℃ (-40°F ~ 257°F), Non-Condensing, Anti-Mildew and Anti-Corrosion Design, Suitable for Long-Term Storage in Severe Environments
|
|
Protection Functions
|
Integrated Overcurrent, Overvoltage, Undervoltage, Overheating, Short-Circuit Protection; Fault Alarm Output (Dry Contact), Automatic Power-Off Protection in Abnormal Conditions
|
|
Signal Interface
|
1 × RS485 Communication Interface (Modbus RTU Protocol), 2 × Analog Input (0-10V / 4-20mA), 4 × Digital Input/Output, 1 × Encoder Feedback Interface (TTL/HTL)
|
|
Heat Dissipation Method
|
Passive Heat Dissipation + Forced Air Cooling Compatible, Integrated High-Efficiency Heat Sink, Thermal Resistance: ≤ 0.8℃/W, Ensuring Stable Operation at Full Load
|
|
Certifications
|
CE, FCC, RoHS, IEC 61800-5-1 Compliant; Meets International Industrial Servo Drive Component Safety, Electromagnetic Compatibility and Environmental Standards
|
|
Service Life
|
Typical: 50,000 Hours (Continuous 24/7 Operation), Mean Time Between Failures (MTBF): ≥ 100,000 Hours, Consistent with Lenze Industrial Component Durability Standards
|
|
Application
|
Exclusive Matching Lenze Servo Drives, Widely Used in Industrial Automation, Mechanical Transmission, Robotics, Packaging Machinery, Printing Machinery, CNC Machine Tools and Other Industrial Scenarios
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
