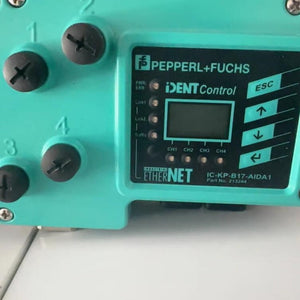

1 PCS used Pepperl+Fuchs IC-KP-B17-AIDA1 Communication Module #LYQ007
1 PCS used Pepperl+Fuchs IC-KP-B17-AIDA1 Communication Module #LYQ007
| Parameter | Value |
|---|---|
| Product Description | IDENTControl control interface with Ethernet interface for TCP/IP, PROFINET, EtherNet/IP, and MODBUS TCP protocolsPepperl+Fuchs |
| Part Number | 213244 |
| General Specifications | |
| Number of read/write heads | max. 4; alternative: 2 read/write heads + 2 trigger sensorsPepperl+Fuchs |

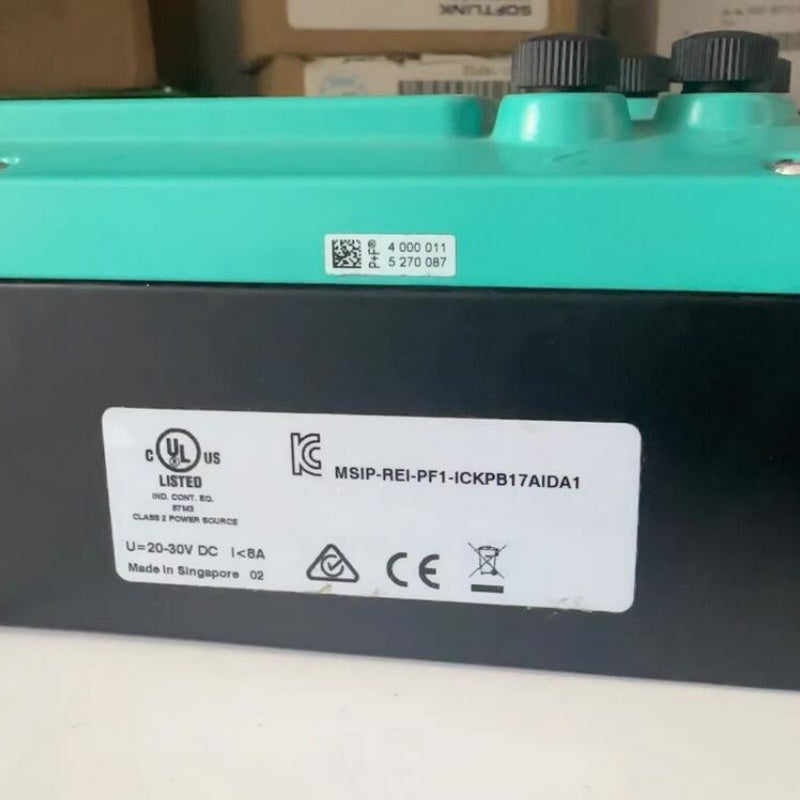

| UL File Number | E87056Pepperl+Fuchs |
| MTBF | 55 a (Operation at +40 °C)Pepperl+Fuchs |
| Indicators/Operating Means | |
| LEDs (CH1–CH4) | Status for read/write heads: green = active; yellow = success (≈1 s)Pepperl+Fuchs |
| LED PWR/ERR | green = power on; red = PROFINET bus failurePepperl+Fuchs |
| LED Link1/Link2 | green = network connectionPepperl+Fuchs |
| LED Traffic | green = data transmission (flashing)Pepperl+Fuchs |
| LC Display | 2-line, 12 chars/line; configuration + read/write head statusPepperl+Fuchs |
| Buttons | 4 keys: ESC, up, down, returnPepperl+Fuchs |
| Electrical Specifications | |
| Rated operating voltage | 20 … 30 V DC, PELVPepperl+Fuchs |
| Ripple | ≤ 10 % at 30 V DCPepperl+Fuchs |
| Current consumption | ≤ 8 A (incl. read/write heads)Pepperl+Fuchs |
| Power consumption | 3.5 W (without read/write heads)Pepperl+Fuchs |
| Galvanic isolation | Basic insulation per DIN EN 50178; rated insulation voltage: 50 VeffPepperl+Fuchs |
| Interface 1 | |
| Physical | EthernetPepperl+Fuchs |
| Protocol | SMTP, HTTP, TCP/IP (Port 10000), MODBUS/TCP, EtherNet/IP, PROFINET IOPepperl+Fuchs |
| Transfer rate | 10 MBit/s or 100 MBit/sPepperl+Fuchs |
| Interface 2 | |
| Physical | EthernetPepperl+Fuchs |
| Protocol | SMTP, HTTP, TCP/IP (Port 10000), MODBUS/TCP, EtherNet/IP, PROFINET IOPepperl+Fuchs |
| Transfer rate | 10 MBit/s or 100 MBit/sPepperl+Fuchs |
| Directive Conformity | |
| EMC | Directive 2014/30/EU; EN 61326-1Pepperl+Fuchs |
| RoHS | Directive 2011/65/EU; IEC/EN 63000Pepperl+Fuchs |
| Ambient Conditions | |
| Ambient temperature | -25 … 70 °C (-13 … 158 °F)Pepperl+Fuchs |
| Storage temperature | -30 … 80 °C (-22 … 176 °F)Pepperl+Fuchs |
| Humidity | max. 96 % (non-condensing)Pepperl+Fuchs |
| Shock/impact resistance | Oscillation: 5 g, 10–1000 Hz (EN 60068-2-6); Shock: 30 g, 11 ms (EN 60068-2-27)Pepperl+Fuchs |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 148 × 105 × 73 mmPepperl+Fuchs |
| Degree of protection | IP67Pepperl+Fuchs |

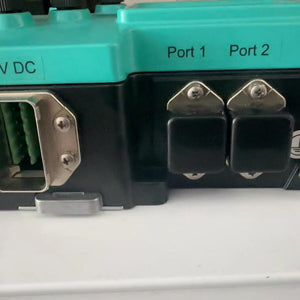

| Connections | Read/write heads: shielded 4-pin M12; Power: MSTB AIDA; Earth: M6 screw; Ethernet: RJ-45 AIDAPepperl+Fuchs |
| Housing material | Powder-coated aluminumPepperl+Fuchs |
| Installation | Snap-on to 35 mm DIN rail or screw fixingPepperl+Fuchs |
| Mass | approx. 1000 gPepperl+Fuchs |
