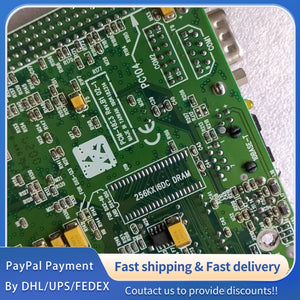

1 PCS used Advantech Industrial Motherboard PCM-4823 Rev.B1 01-1 #LYQ007
1 PCS used Advantech Industrial Motherboard PCM-4823 Rev.B1 01-1 #LYQ007
1 PCS used Advantech Industrial Motherboard PCM-4823 Rev.B1 01-1 #LYQ007
Product Overview: The Advantech Industrial Motherboard PCM-4823 Rev.B1 01-1 is a high-reliability genuine original factory single board computer (SBC), specifically designed for industrial control scenarios. It is manufactured in strict accordance with Advantech's global industrial quality standards and technical specifications, integrating an embedded processor, display control, Ethernet communication and multiple I/O interfaces. This motherboard features ultra-compact size, low power consumption and stable performance, compatible with PC/104 expansion interface, suitable for various harsh industrial environments such as industrial automation, precision control and data acquisition systems[1][2][3].
Original Factory Precision Parameters
|
Parameter Name
|
Original Factory Specification
|
|
Manufacturer
|
Advantech Corporation (Genuine Original Factory)
|
|
Product Model
|
PCM-4823 Rev.B1 01-1 (Industrial Motherboard / Single Board Computer)
|
|
Motherboard Revision
|
Rev.B1 (Official Updated Version, Fully Compliant with PCM-4823 Series Standards)
|
|
Product Type
|
Genuine Original Factory Industrial Single Board Computer (SBC), 486-Based
|
|
On-Board CPU
|
Embedded AMD DX5-133 (5x86-133) Processor (Exclusive for Rev.B1)[1][2][3]
|
|
System Chipset
|
VIA VT82C496G / 82C416 Chipset[1][2][4]
|
|
System Memory
|
1 x 72-pin SIMM Socket, Supports EDO / FPM DRAM, Maximum 32 MB[1][2][3][4]
|
|
BIOS
|
Award 128 KB Flash BIOS, Support for System and VGA BIOS Configuration[1][2][3]
|
|
Display Controller
|
Asiliant (C&T) 65550 Local-Bus SVGA Display Controller; 1 MB Video Memory; Supports up to 1024×768 @ 8 bpp (CRT & TFT LCD)[2][3][4]
|
|
Ethernet Interface
|
1 x 10Base-T Ethernet Port, Realtek RTL8019AS Chipset; IEEE 802.3i Compliant; 1 x RJ45 Connector[1][2][4]
|
|
I/O Interfaces
|
1 x EIDE, 1 x FDD, 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x RS-232/422/485, 1 x RS-232, 1 x LPT; 1 x IR Connector (115 kbps, IrDA 1.0 Compliant)[1][2][3][4]
|
|
Expansion Interface
|
PC/104 Expansion Connector, Supports Future Function Upgrades[1][2][3][4]
|
|
SSD Support
|

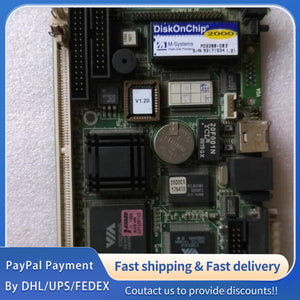

Supports M-Systems DiskOnChip 2000 Flash Memory[1][2][3]
|
|
Watchdog Timer
|
Software Enable/Disable, 1.6 Seconds Timer[1][2]
|
|
Power Supply
|
Single +5V Power Supply, ±5% Tolerance; Max Power Consumption: 3A @ +5V; Typical: 1.8A @ +5V (for DX5-133 with 32 MB DRAM)[1][2]
|
|
Battery
|
Lithium Battery, 3V / 195 mAh[1][2]
|
|
Dimensions (L×W)
|
145 mm × 102 mm (5.7" × 4"), Ultra-Compact Size (Same as 3.5" Hard Disk)[1][2][3][4]
|
|
Weight
|
Approx. 0.65 kg (Gross Weight of Total Package)[1][2]
|
|
Operating Environment Temperature
|
0℃ ~ +60℃ (32°F ~ 140°F), Stable Operation in Harsh Industrial Environments[1][2][3]
|
|
Operating Humidity
|
0% ~ 90% Relative Humidity, Non-Condensing[1][2][3]
|
|
Certifications
|
CE, FCC, RoHS Compliant; Meets International Industrial Control Equipment Safety and Environmental Standards
|
|
Power Management
|
Green Engine, Supports Sleep Mode and Low Power Consumption[1][3]
|
