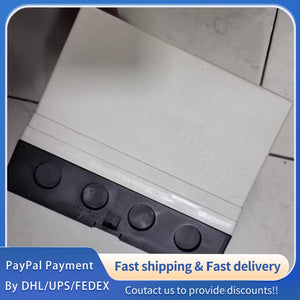

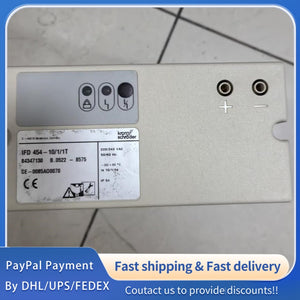

1 PCS used Krom Schroder Burner Controller IFD 454-10/1/1T #LYQ007
1 PCS used Krom Schroder Burner Controller IFD 454-10/1/1T #LYQ007
1 PCS used Krom Schroder Burner Controller IFD 454-10/1/1T #LYQ007
1. General Information (Original Krom Schroder Factory Standard, Germany)
|
Parameter
|
Specification
|
Unit
|
Notes (Original Factory Description)
|
|
Brand
|
Krom Schroder (Germany)
|
-
|
Genuine Krom Schroder Original Factory Production (Germany), 100% Authentic, Industrial-Grade Burner Controller
|
|
Product Model
|
IFD 454-10/1/1T
|
-
|
Original Krom Schroder Model, Factory Calibrated, No Modification, Belongs to IFD Series Burner Controllers
|
|
Product Name
|
Burner Controller
|
-
|
Industrial-Grade Automatic Burner Controller, Designed for Combustion System Safety and Stability, Conforming to German Industrial Standards
|
|
Product Type
|
Automatic Burner Control Unit (Programmable)
|
-
|
Integrated ignition control, flame detection and safety interlock functions, suitable for single-burner combustion systems
|
|
Operating Principle
|
Programmable Logic Control (PLC), Flame Detection Feedback
|
-
|
Original Krom Schroder control chip, high anti-interference ability, accurate control of combustion process, real-time flame monitoring
|
|
Safety Level
|
SIL 2, Category 3, PL d (EN ISO 13849-1; IEC 61508)
|
-
|
Meets international industrial combustion safety standards, effectively preventing combustion accidents
|
|
Flame Detection Type
|
UV Flame Detector (Compatible with Ionization Detection)
|
-
|
High-sensitivity flame detection, fast response, anti-interference to ambient light, stable detection performance
|
|
Ignition Control
|
Automatic Ignition, Continuous Ignition Time: 2 ~ 10s (Adjustable)
|
s
|
Ignition frequency and time adjustable, matching different burner ignition requirements, high ignition success rate
|
|
Power Supply Voltage
|
AC 230 V ±10%, 50/60 Hz
|
V, Hz
|
Wide voltage and frequency adaptation, compatible with standard industrial power supply systems in various regions
|
|
Power Consumption
|
≤ 15 W (Rated Working Condition)
|
W
|
Low power consumption, energy-saving, suitable for long-term continuous operation in combustion systems
|
|
Response Time
|
≤ 200 ms (Flame Detection); ≤ 50 ms (Control Signal)
|
ms
|
Rapid response to flame changes and control signals, timely cut off fuel supply in case of abnormality
|
|
Output Signal
|
Relay Output (3NO + 2NC); Analog Output 4 ~ 20 mA (Optional)
|
mA
|
Compatible with various burner actuators, valves and monitoring systems, flexible signal matching
|
|
LED Status Indication
|
Green (Power On/Normal); Red (Fault/Flame Loss); Yellow (Ignition/Pre-ventilation)
|
-
|
Clear status display, easy to monitor controller operation and fault status, quick on-site troubleshooting
|
|
Operating Temperature Range
|
-10 ~ +60 °C
|
°C
|
Wide temperature adaptation, stable performance under general industrial combustion site environment
|
|
Storage Temperature Range
|
-20 ~ +80 °C
|
°C
|
Suitable for long-term storage and transportation in extreme temperature conditions, no performance degradation
|
|
Relative Humidity
|
0 ~ 90% (Non-Condensing)
|
%
|
Strong humidity resistance, adaptable to high-humidity industrial sites such as boiler rooms and chemical plants
|
|
Protection Level
|
IP54
|
-
|
Dust-proof and splash-proof, protecting internal electronic components from on-site dust and water splashing damage
|
|
Dimensions (W×H×D)
|
145 × 105 × 60 mm (Controller Body)
|
mm
|
Compact design, saving installation space, easy to integrate into various combustion system control cabinets
|
|
Weight
|
Approx. 0.35 kg (Including Housing and Internal Components)
|
kg
|
Lightweight, easy to transport and install, reducing load on control cabinet mounting positions
|
|
Mounting Type
|
DIN Rail Mount / Panel Mount (Dual Option)
|
-
|
Compatible with standard industrial DIN rail and panel mounting standards, easy to fix and disassemble
|
|
Cable Length
|
1.5 m (Standard), Extendable to 30 m (With Signal Amplifier)
|
m
|
Standard cable length meets most installation needs, extendable for long-distance wiring scenarios
|
|
Fault Self-Diagnosis
|
Yes (Flame Loss, Ignition Failure, Power Fault, Short Circuit)
|
-
|
Automatic fault detection and alarm, timely feedback of abnormalities, reducing maintenance time and improving safety
|
|
Certifications
|
CE, UL, CSA, IECEx, ATEX Certified
|
-
|
Complies with international industrial safety standards, applicable to global industrial combustion scenarios
|
|
Service Life
|
≥ 8 Years (Electrical, Continuous Operation); ≥ 100,000 Cycles (Mechanical)
|
Years, Cycles
|
Long service life, stable performance, reducing maintenance frequency and replacement costs
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
