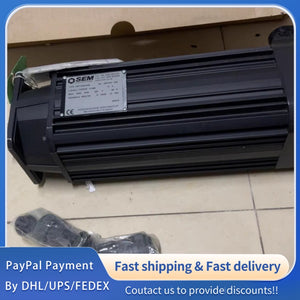

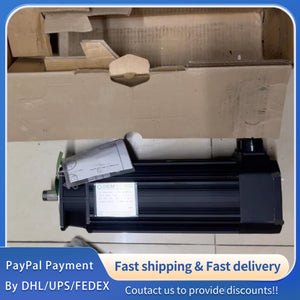

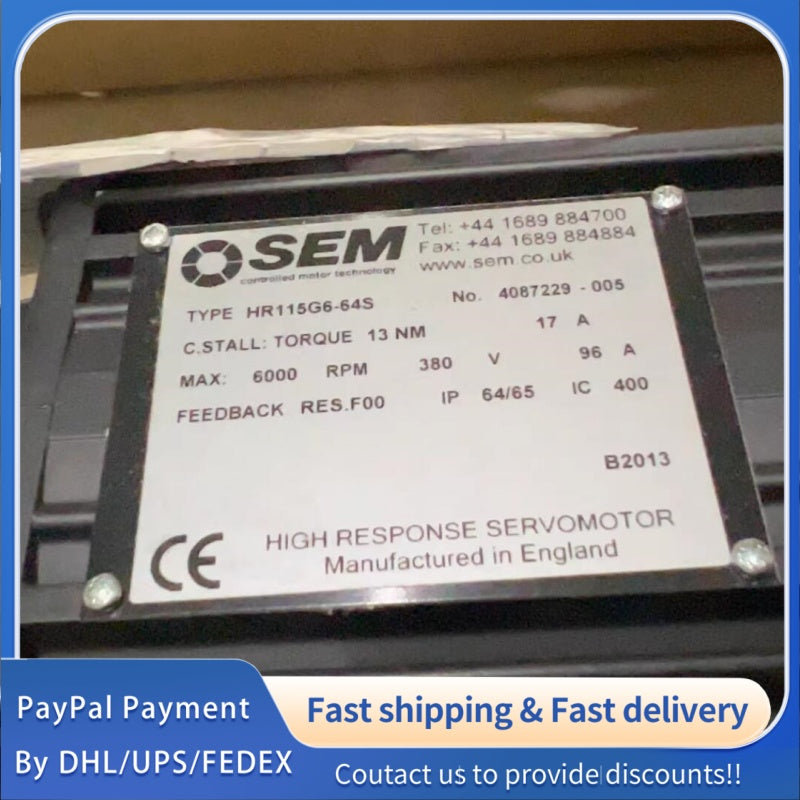

1 PCS NEW SEM HR115G6-64S Servo Motor #LYQ007
1 PCS NEW SEM HR115G6-64S Servo Motor #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Model | HR115G6-64S | – |
| Voltage (line-line) | 380 | V |
| Max. Motor EMF (Voltage gradient no load) | 64 | V/krpm |
| Max. Speed | 6000 | rpm |
| Continuous Stall Torque | 5.2 | Nm |
| Peak Stall Torque | 16 | Nm |
| Continuous Stall Current (rms) | 6.9 | A |
| Torque Constant (Kt, line-line) | 0.75 | Nm/A |
| Rotor Polar Moment of Inertia | 3.9 | kg·cm² |
| Cogging Torque | 0.101 | Nm |
| Resistance (line-line) | 0.9 | Ω |
| Inductance (line-line) | 9.4 | mH |
| Insulation Class | F | – |
| Max. Ambient Temperature | 40 | °C |
| Thermal Time Constant | 40 | min |
| Thermal Resistance | 0.74 | °C/W |
| Static Friction Torque | 0.066 | Nm |
| Motor Weight | 7.8 | kg |
| Protection | IP64/65 | – |
| Cooling | IC400 | – |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
