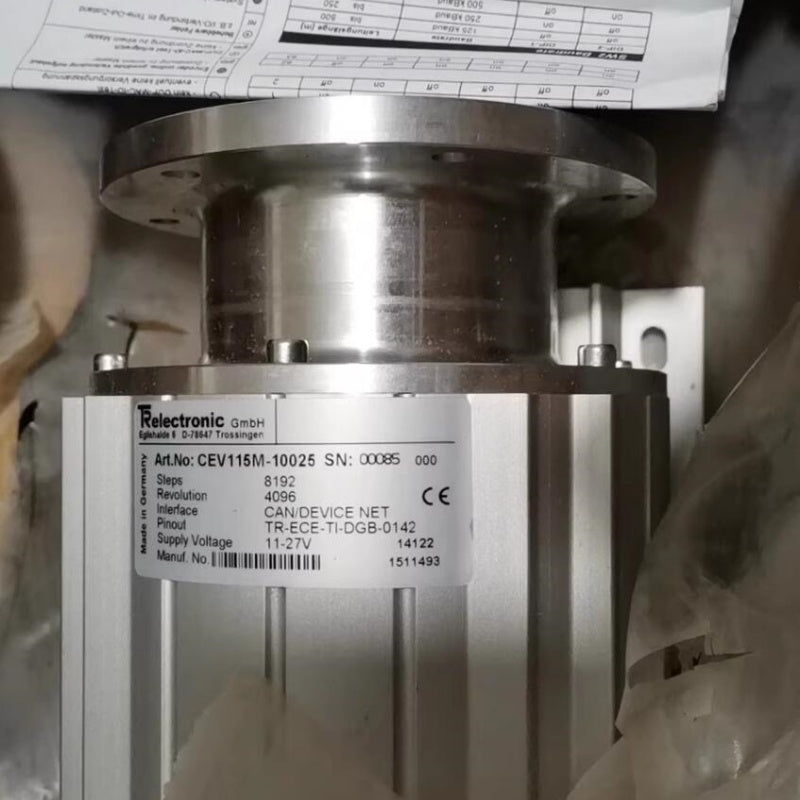

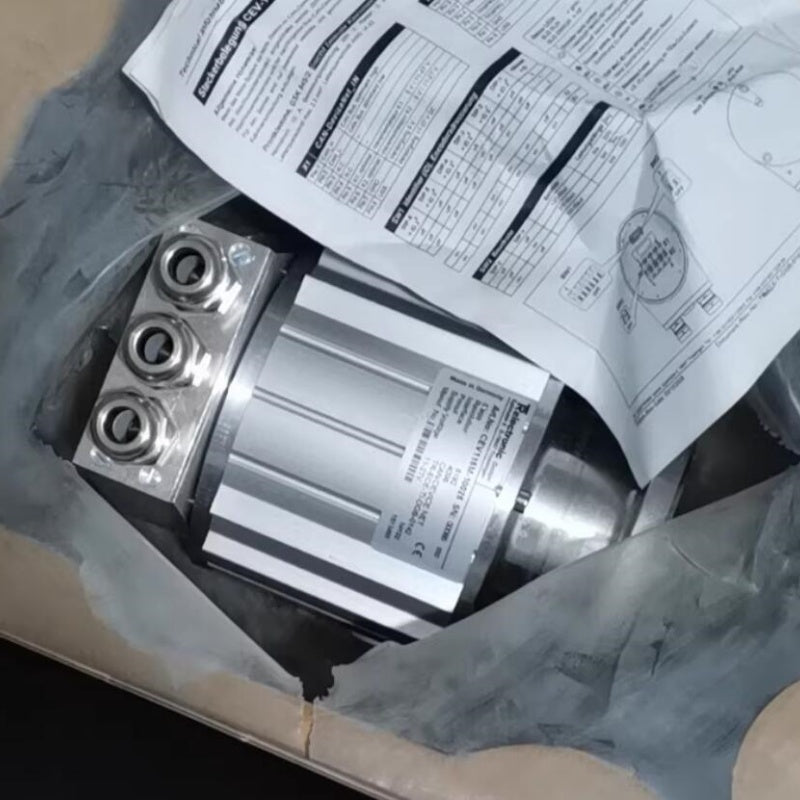

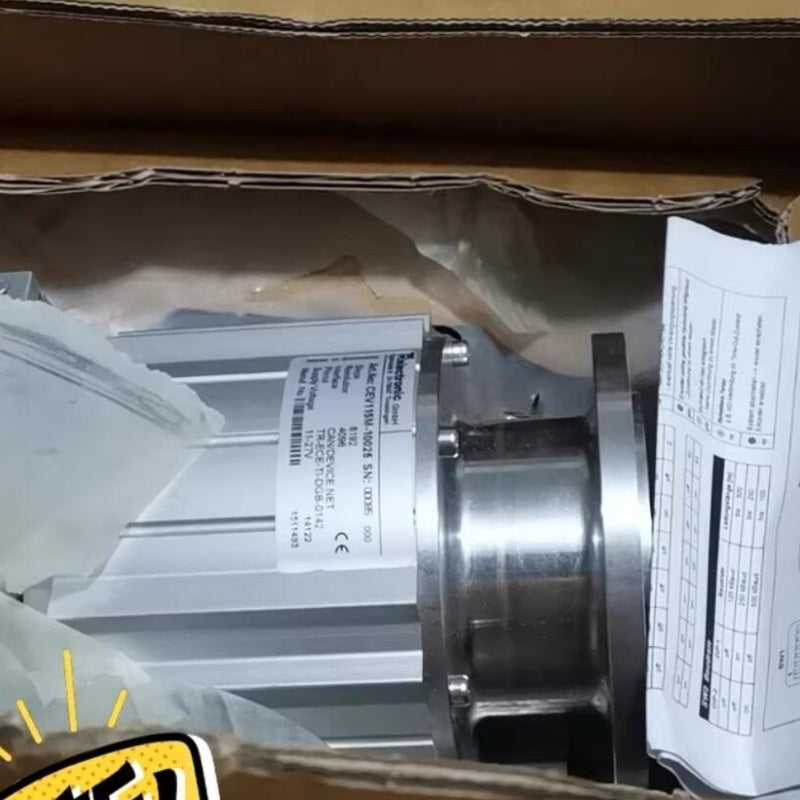

1 PCS new TR-Electronic CEV115M-10025 Absolute Encoder #LYQ007
1 PCS new TR-Electronic CEV115M-10025 Absolute Encoder #LYQ007
| Parameter | Value |
|---|---|
| Model | CEV115M-10025 |
| Type | Multi-turn absolute rotary encoder |
| Measuring Principle | Optical, absolute |
| Resolution | Single-turn: 13 Bit (8192 steps)
|
| Supply Voltage | 10 V DC ... 30 V DC |
| Current Consumption | Typical 140 mA (no load) |
| Output Interface | SSI (Serial Synchronous Interface) |
| Clock Frequency | Up to 1 MHz |
| Transfer Format | Binary, Gray code selectable |
| Max. Speed | ≤ 3600 min⁻¹ (rpm) |
| Shock Resistance | ≤ 1000 m/s², half-sine, 11 ms (EN 60068-2-27) |
| Vibration Resistance | ≤ 245 m/s², sine, 50 ... 2000 Hz (EN 60068-2-6) |
| Operating Temperature | -20 °C ... +75 °C |
| Storage Temperature | -40 °C ... +80 °C (dry) |
| Protection Class | Housing: IP67
|
| Housing Material | Aluminum |
| Shaft | Solid shaft, diameter 12 mm |
| Bearing Life | ≥ 2.8 x 10¹⁰ revolutions |
| Axial Load (max.) | ≤ 100 N |
| Radial Load (max.) | ≤ 150 N |
| Weight | Approx. 1.5 kg |
| EMC | EN 61000-6-2, EN 61000-6-3 |
| Certifications | CE, RoHS |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
