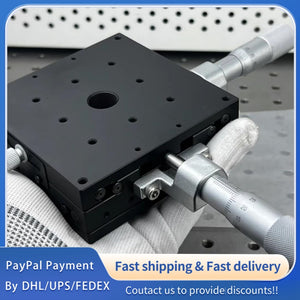

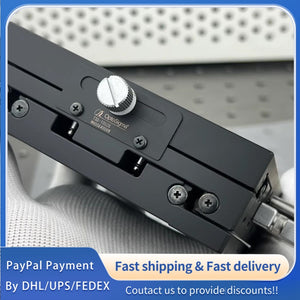

1 PCS used Sigma Koki (Japan) TSD-1002C Manual XY Stage #LYQ007
1 PCS used Sigma Koki (Japan) TSD-1002C Manual XY Stage #LYQ007
1 PCS used Sigma Koki (Japan) TSD-1002C Manual XY Stage #LYQ007
Original Factory Precision Parameters (Model: Sigma Koki TSD-1002C Manual XY Stage)
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
TSD-1002C; Sigma Koki (Japan) Genuine Original Manual XY Stage, 100% unused and unrefurbished genuine parts, consistent with Sigma Koki's official model coding standards. It belongs to high-precision industrial-grade linear motion control components, designed for dedicated matching with various precision manual motion control systems, with fixed configuration and excellent corrosion resistance, focusing on high-precision positioning, smooth adjustment and reliable locking performance.
|
|
Manufacturer Standard
|
Manufactured by Sigma Koki Co., Ltd. (Japan, Genuine Original Factory); Compliant with ISO 9001 Quality Certification, CE, RoHS and relevant international precision motion control standards; Conforms to Sigma Koki Internal Technical Standard and Manual XY Stage Manufacturing Norms, meeting the precision calibration requirements of international high-precision linear motion control component standards and related equipment specifications.
|
|
|
Core Positioning & Adjustment Parameters
|
Stage Type
|
Manual XY Stage; Two-axis (X-axis & Y-axis) independent adjustment; Linear motion type; Integrated high-precision lead screw and linear guide rail structure, supporting fine manual adjustment and stable position locking, suitable for high-precision opto-mechanical, laboratory and precision assembly scenarios; High rigidity, small deformation during adjustment and locking.
|
|
Adjustment Range (X/Y Axis)
|
X-axis: 0~100mm; Y-axis: 0~100mm; Adjustment range is consistent for both axes, ensuring synchronous or independent fine adjustment as needed; Stable adjustment performance under rated working conditions, no stuck or offset phenomenon, fully meeting high-precision linear motion control requirements.
|
|
|
Positioning Resolution
|
Rated Value: 0.005mm; Tolerance: ±0.0005mm; High-precision positioning performance, ensuring accurate adjustment of the stage at any position within the adjustment range, effectively improving the precision of the whole motion control system; Matching with high-precision manual adjustment knob for fine operation.
|
|
|
Positioning Repeatability
|
≤±0.003mm (X/Y Axis); High repeatability performance, ensuring consistent positioning accuracy for multiple adjustments, avoiding positioning errors caused by repeated motion, meeting high-precision manual linear motion control requirements.
|
|
|
Adjustment Mechanism
|
Manual Lead Screw Adjustment; Lead Screw Pitch: 0.4mm; Adjustment Knob: Aluminum Alloy Knob with Anti-slip Design, Diameter: 32mm; Knob Rotation Torque: 0.7~1.1N·m; Smooth adjustment, no jitter, easy to operate with fine control ability, suitable for long-time manual adjustment operations.
|
|
|
Locking Mechanism
|
Manual Locking Screw; Material: Stainless Steel (SUS304); Locking Torque: 1.4~1.9N·m; Independent locking for X/Y Axis, ensuring stable positioning after adjustment, no position drift under external vibration or load, effectively maintaining positioning accuracy; Easy to lock and unlock, no damage to the stage structure after long-term use.
|
|
|
Parallelism (X/Y Axis)
|
≤0.008mm/m; High parallelism between X-axis and Y-axis, ensuring consistent motion trajectory and positioning accuracy of the two axes, avoiding tilt or offset during adjustment, improving the overall precision of the stage.
|
|
|
Mechanical & Material Parameters
|
Material
|
Main Body: High-Strength Aluminum Alloy (Anodized Surface); Lead Screw: High-precision Stainless Steel Lead Screw (SUS304); Guide Rail: Stainless Steel Linear Guide Rail; Knob & Locking Screw: Stainless Steel (SUS304); High corrosion resistance, wear resistance and rigidity, suitable for harsh industrial and laboratory environments, long service life.
|
|
Stage Surface Dimensions
|
Stage Surface (Working Platform): 120mm × 120mm; Flatness: ≤0.002mm; Smooth surface, high flatness, ensuring stable placement of the tested workpiece or equipment, avoiding positioning errors caused by surface unevenness; Surface Finish: Ra ≤0.6μm.
|
|
|
Physical Dimensions
|
Overall Dimensions (Length × Width × Height): 200mm × 200mm × 48mm; Tolerance: ±0.1mm for each dimension; Compact structure, small space occupation, easy to install and integrate into various motion control systems and experimental equipment.
|
|
|
Weight
|
Rated Weight: ≤3.2kg (Without Accessories); Lightweight design, reducing the load of the motion control system and experimental equipment, facilitating installation, transportation and position adjustment of the stage itself.
|
|
|
Installation & Load Parameters
|
Installation Method
|
Base Mounting; Matching Sigma Koki Standard Mounting Holes (4 Holes on Base, Diameter: 6mm, Center Distance: 160mm × 160mm); Easy to install and fix, ensuring stable installation, no loosening during adjustment and locking, improving adjustment stability and positioning accuracy.
|
|
Maximum Load Capacity
|
Rated Load: 7kg (Vertical Load); Maximum Load: 10kg; Stable load-bearing performance under rated load, no deformation or position drift, ensuring normal operation of the stage and the loaded workpiece/equipment; Load-bearing capacity is consistent for both X/Y axes.
|
|
|
Mounting Hole Specification
|
Stage Surface Mounting Holes: 4 Holes, Diameter: 5mm, Center Distance: 100mm × 100mm; Base Mounting Holes: 4 Holes, Diameter: 6mm, Center Distance: 160mm × 160mm; Compatible with standard screws and mounting accessories, easy to install workpieces and fix the stage.
|
|
|
Friction Coefficient
|
≤0.04; Low friction coefficient between lead screw and guide rail, ensuring smooth manual adjustment, reducing operation force, avoiding jitter during adjustment, and improving the precision of fine adjustment.
|
|
|
Environmental & Durability Parameters
|
Operating Environment
|
Operating Temperature: -10℃ ~ 55℃; Storage Temperature: -25℃ ~ 65℃; Operating Humidity: 10% ~ 85% RH (Non-Condensing); Storage Humidity: < 75% RH (Non-Condensing); Excellent corrosion resistance and environmental adaptability, suitable for most laboratory and industrial environments, avoiding harsh environment impact on performance.
|
|
Vibration Resistance
|
Vibration Resistance: 2.0g (10Hz ~ 500Hz); Effectively resisting external vibration interference, ensuring stable positioning and smooth adjustment of the stage during operation, no position drift caused by vibration.
|
|
|
Service Life
|
Service Life: ≥60,000 Hours (Under Rated Working Conditions); Long-term stable operation under normal working conditions, low failure rate; Adopting wear-resistant materials and precision machining process, extending service life; Regular maintenance can further prolong the service life.
|
