General Information

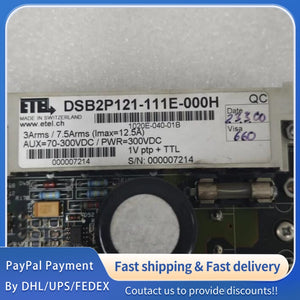

- Part Number: DSB2P121-111E-000H

- Brand: ETEL SA

- Product Series: DSB2 Series Servo Control Board

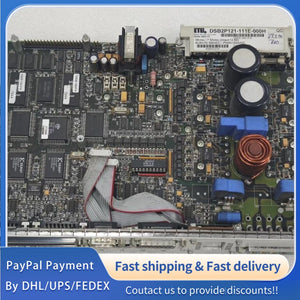

- Board Type: High-Precision Digital Servo Control Board

- Core Application: Precision motion control systems, such as semiconductor manufacturing equipment, precision machining centers, optical inspection devices, robotics, and aerospace component handling systems; designed for high-dynamics servo motor control with ultra-low latency.

- Core Feature: Integrated high-performance FPGA control core; multi-axis synchronization capability; support for high-resolution feedback devices; flexible control algorithm configuration; industrial-grade anti-interference design; compact layout for chassis integration.

2. Electrical Specifications
Power Supply Parameters
- Supply Voltage: 24V DC (±10% Fluctuation Tolerance), 5V DC Auxiliary Power (for Control Circuit)

- Power Consumption: 15W (Typical Operating), 25W (Peak Load)

- Output Current Capacity: 2A (Continuous per Axis), 6A (Peak per Axis, 200ms Duration)

- Control Axis Quantity: Single Axis (Configurable for Multi-Axis Synchronization via Bus)

- Logic Level: TTL/CMOS 3.3V, 5V Compatible for I/O Signals

Motor Control Parameters
- Motor Compatibility: Brushless Permanent Magnet Servo Motors, Linear Servo Motors, Torque Motors (High-Precision Series)

- Control Modes: Position Control (Pulse/Direction, CW/CCW), Speed Control (Analog Voltage, Digital Command), Torque Control, Cascaded Control Modes (Switchable via Software)

- Positioning Accuracy: ±0.001° (With 17-Bit Absolute Encoder), ±0.0005° (With 20-Bit Absolute Encoder)

- Speed Regulation Range: 0.01-10000 rpm (Steady Speed), 0.01-15000 rpm (Peak Speed)

- Speed Stability: ±0.005% (No-Load, Steady Speed Condition)
