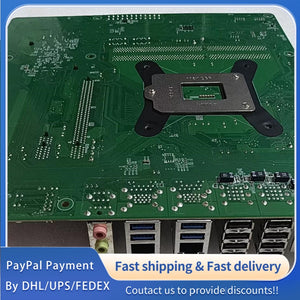

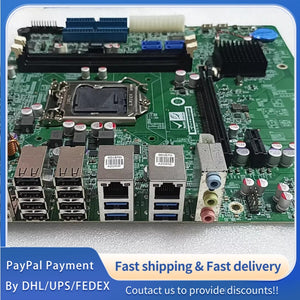

1 PCS used ATMCTR-H81P Industrial Mainboard 006SAF2-00-101-RS #LYQ007
1 PCS used ATMCTR-H81P Industrial Mainboard 006SAF2-00-101-RS #LYQ007
|
Parameter Name
|
Original Factory Specification
|
|
Manufacturer
|
Hamlin Electronics (Suzhou) Co., Ltd.[1], Genuine Original Factory, Compliant with Industrial Mainboard Manufacturing Standards[3]
|
|
Mainboard Model
|
ATMCTR-H81P
|
|
Product Part Number
|
006SAF2-00-101-RS (Genuine Original Factory Part)
|
|
Product Type
|
Industrial Control Mainboard (IPC Industrial Mainboard), Embedded Industrial Application Design[1][2]
|
|
Chipset
|
Intel H81 Chipset, Official Genuine Chipset, Stable Performance[1][2]
|
|
CPU Support
|
LGA 1150 Socket, Supports 4th Generation Intel® Core™ i7/i5/i3, Xeon®, Pentium®, Celeron® Processors (22nm Technology)[1][2]
|
|
Memory Support
|
2 x DDR3 DIMM Slots, Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory; Maximum Capacity Up to 16GB, Dual-Channel Supported[1][2]
|
|
Storage Support
|
2 x SATA3 6.0 Gb/s Interfaces, 2 x SATA2 3.0 Gb/s Interfaces; Supports NCQ, AHCI and Hot Plug; Compatible with SSD and HDD[1][2]
|
|
Onboard Interfaces
|
1 x 10/100/1000 Mbps Gigabit Ethernet Port (Realtek RTL8111 Series NIC)[1][2]; 2 x RS232 Serial Ports; 1 x Parallel Port (SPP/EPP/ECP); 2 x USB 3.0 Interfaces, 4 x USB 2.0 Interfaces; 1 x VGA Interface, 1 x HDMI Interface[1][2]
|
|
Graphics Support
|
CPU Integrated Graphics (Requires CPU with Built-in GPU); Supports VGA + HDMI Dual Display Output, Maximum Resolution Up to 1920x1080[1][2]
|
|
Expansion Slots
|
1 x PCI Express 2.0 x16 Slot, 2 x PCI Express 2.0 x1 Slots, 3 x PCI Slots, Easy Expansion of Industrial Peripherals[2]
|
|
Power Supply
|
ATX Power Supply Interface (24-pin + 4-pin CPU Power Supply); Supports Wide Voltage Input, Stable Power Supply for Industrial Scenarios[1][2]
|
|
Onboard Audio
|
Integrated Realtek Audio Chip, 5.1/7.1 Channel Sound Effect, Compatible with Industrial Audio Equipment[1][2]
|
|
Operating Environment Temperature
|
-10℃ ~ +60℃ (-14°F ~ 140°F), Industrial-Grade Extended Temperature, Suitable for Harsh Industrial Environments[3]
|
|
Storage Temperature Range
|
-20℃ ~ +85℃ (-4°F ~ 185°F), Non-Condensing[3]
|
|
Operating Humidity
|
10% ~ 90% Relative Humidity, Non-Condensing; Storage Humidity: 5% ~ 95% Relative Humidity, Non-Condensing[3]
|
|
Special Features
|
Industrial-Grade Anti-Interference Design, Watchdog Timer, Power Fail Protection, Real-Time Clock; Support EEPROM Setup, Stable Boot Without Battery[3]
|
|
Certifications
|
CE, FCC, RoHS Compliant; Meets International Industrial Hardware Safety and Environmental Standards[3]
|
|
Service Life
|
Typical: 50,000 Hours (Continuous 24/7 Operation); 7-Year Availability from Release Date, Consistent with Industrial Mainboard Standards[3]
|
|
Form Factor
|
ATX Form Factor, 30.5 × 18.8 cm (12 × 7.4 “), Compatible with Standard Industrial Chassis[2]
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
